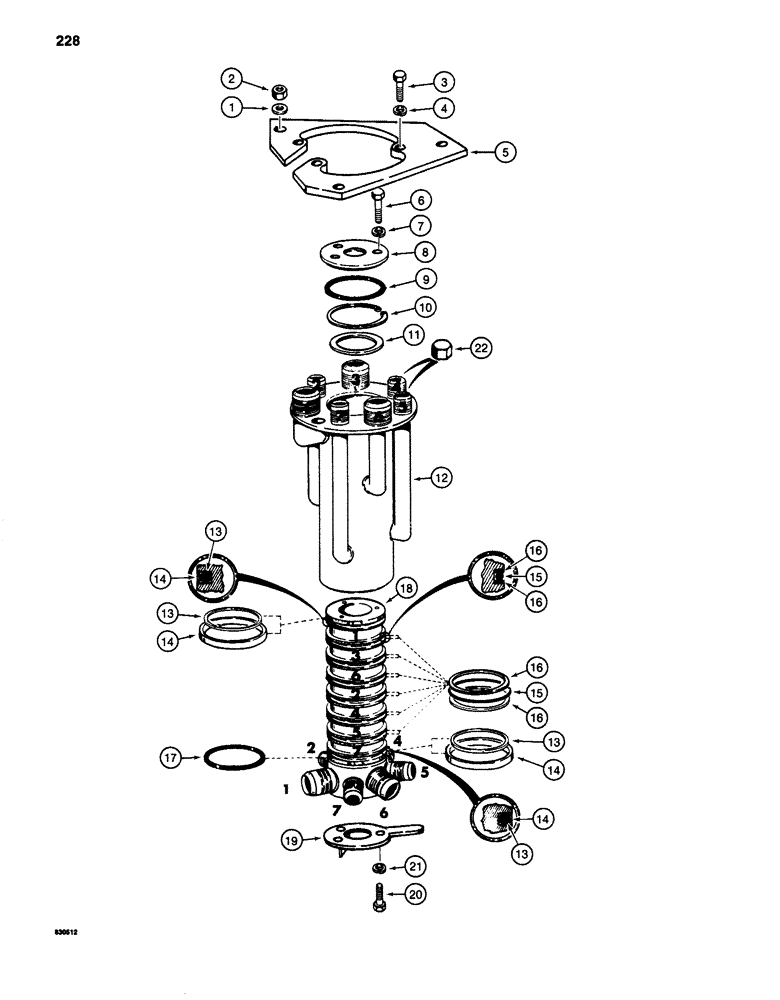

Запчасти Case 1280 (228) - SEVEN PORT SWIVEL AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

195-104

WASHER,3/8"

- flat, 7/16"

3шт.

2

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

S204101

PLATE

- mounting, seven port swivel

1шт.

S616988

LINK

SWIVEL - hydraulic, seven port, Includes: Ref. 6 - 18

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

S203821

CAP

- bearing

1шт.

9

S76241

O-RING

- bearing cap, 4" I.D., 4 3/16" O.D., 3/32" thick

1шт.

Part of Hydraulic Swivel Seal Kit, P/N S210212

1шт.

10

S15194

SNAP RING

- washer retaining

1шт.

11

S203832

WASHER

- bearing

1шт.

12

S57975

ASSEMBLY

HOUSING - swivel

1шт.

13

S118682

RING

SEAL - swivel shaft, square section

2шт.

Part of Hydraulic Swivel Seal Kit, P/N S210212

1шт.

14

S118683

SEAL

- slipper

2шт.

Part of Hydraulic Swivel Seal Kit, P/N S210212

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- swivel shaft

6шт.

Part of Hydraulic Swivel Seal Kit, P/N S210212

1шт.

16

S76928

WASHER

RING - backup, used with A27507

12шт.

Part of Hydraulic Swivel Seal Kit, P/N S210212

1шт.

17

S76240

O-RING

- swivel shaft, bottom

1шт.

Part of Hydraulic Swivel Seal Kit, P/N S210212

1шт.

18

S57974

ASSEMBLY

SHAFT - swivel

1шт.

19

S237399

LARGE PLATE

PLATE - mounting, inner swivel

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

- tube, used on ports 4 and 5 if machine is not equipped with optional leveler

2шт.

S210212

SEAL KIT

KIT - seal, hydraulic swivel, Includes: Ref. 9, 13, 14, 15, 16, and 17

1шт.
