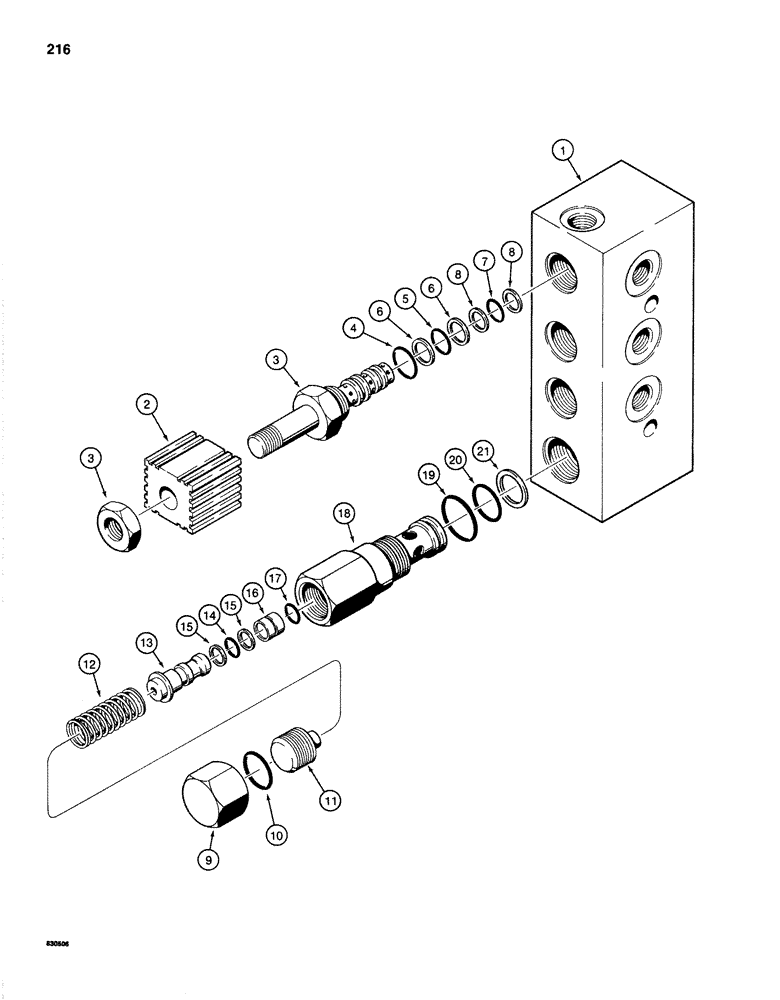

Запчасти Case 1280 (216) - SOLENOID CONTROL VALVE (07) - HYDRAULIC SYSTEM

S617914

VALVE

CONTROL VALVE ASSEMBLY - solenoid, Fauver manufactured, Includes: Ref. 1 - 21

1шт.

1

S516951

VALVE

BODY - control valve, not serviced separately

1шт.

2

N8550

COIL

- solenoid

3шт.

N8549

SOLENOID

ASSEMBLY - control valve, Includes: Ref. 3 - 8

3шт.

3

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

5

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- center

1шт.

6

N8553

O-RING

BACKUP RING - center O-ring

2шт.

7

A8613

O-RING,0.426" ID x 0.566" OD

- inner

1шт.

8

N8554

O-RING

BACKUP RING - inner O-ring

2шт.

N8548

RELIEF VALVE ASSEMBLY - control valve, Includes: Ref. 9 - 21

1шт.

9

NSS

NOT SOLD SEPARAT

END CAP - relief valve

1шт.

10

G100959

O-RING,0.744" ID x 0.879" OD

- end cap to housing

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

12

N7470

VALVE SPRING

SPRING - relief valve

1шт.

13

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

14

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- spool

1шт.

15

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

BACKUP RING - plunger O-ring

2шт.

16

N7471

SEAT

- plunger

1шт.

17

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Seat

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- housing, outer

1шт.

20

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- housing, inner

1шт.

21

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - inner O-ring

1шт.

N9894

VALVE, PRESSURE RELI

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
