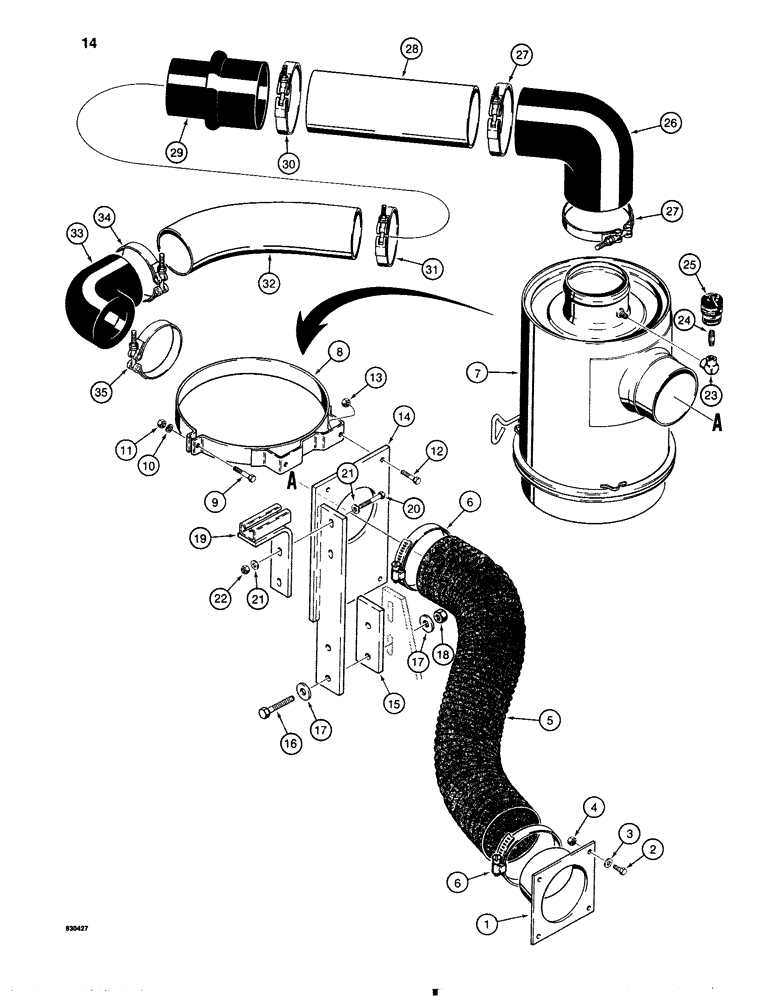

Запчасти Case 1280 (014) - AIR CLEANER AND AIR INTAKE PARTS, FOR CASE ENGINE (01) - ENGINE

1

S241569

FLANGE

- air inlet

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

4

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

5

REF

INSTRUCTION

HOSE - air cleaner inlet, 36" (914 mm) long, cut from S118593, see below

1шт.

6

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - inlet hose

2шт.

7

S617625

AIR CLEANER

- parts list Figure 18

1шт.

8

A56089

SUPPORT

BAND - air cleaner, replace hardware with Refs. 9-11 below

2шт.

9

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

14

S241410

BRACKET

- air cleaner mounting

1шт.

15

S119180

SPACER

- mounting bracket, lower

1шт.

16

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

17

S95569

WASHER

- flat, 1/2", hardened

4шт.

18

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

19

S241397

BRACKET

- 90 degree, upper, tube clamp support

1шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

195-104

WASHER,3/8"

- flat, 3/8"

4шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, 3/8" - 16 NC

2шт.

23

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, indicator line

1шт.

24

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - 1/8" NPT x 1-1/4", restriction indicator line

1шт.

25

A59569

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.

26

S115133

ELBOW

- 90 degree, rubber, air cleaner outlet

1шт.

27

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

- elbow

2шт.

28

S119179

TUBE,5" OD x 13" L

- air cleaner

1шт.

29

S106022

REDUCER

- rubber

1шт.

30

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

- reducer, large end

1шт.

31

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- reducer, small end

1шт.

32

S119178

TUBE,4" OD x 8" L

- bent

1шт.

33

S112515

ELBOW

- 90 degree, rubber, at turbocharger

1шт.

34

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- at pipe

1шт.

35

214-379

CLAMP,#84, 3.50"-3.81", T-Bolt

- at turbocharger

1шт.

S118593

HOSE,5.00" ID x 60.00"

5.00" ID x 60.00"

1шт.
