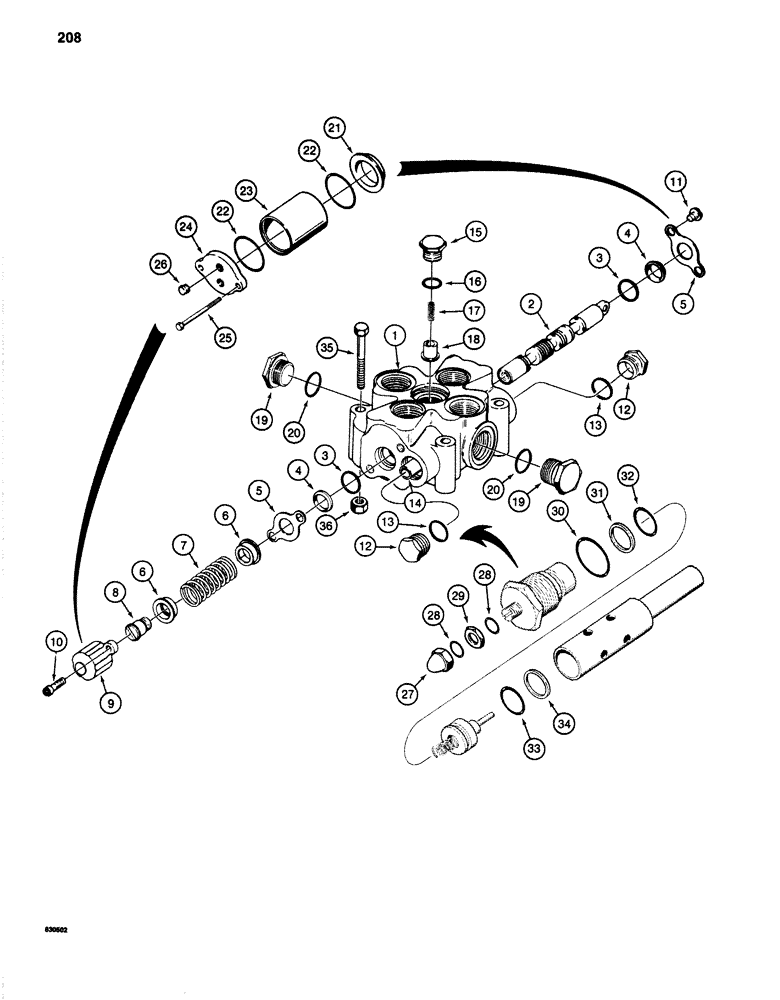

Запчасти Case 1280 (208) - ONE SPOOL CONTROL VALVE (07) - HYDRAULIC SYSTEM

S506349

VALVE

CONTROL VALVE ASSEMBLY - one spool, leveler circuit, if used, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

S215229

PLUNGER

SPOOL - control valve

1шт.

3

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool seal

2шт.

4

S62092

WIPER

- spool

2шт.

5

S13829

PLATE

- seal retaining

2шт.

6

S62288

SEAT

- spring

2шт.

7

S95166

SPRING

- spool centering

1шт.

8

S62292

BOLT

- special

1шт.

9

S62278

CAP

- spool, replace with S232345 kit and 221-661 plug, see Refs. 21-26 below

1шт.

10

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket head, 3/8" - 16 NC x 1", replace with S232345 kit and 221-661 plugs, see Refs. 21-26 below

2шт.

11

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8" - 16 NC x 1/2", replace with S232345 kit and 221-661 plugs, see Refs. 21-26 below

2шт.

12

S13707

PLUG

- circuit relief ports, remove rear plug and replace with S62112 relief valve, see Refs. 27-34 below

2шт.

13

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- plug, remove one with rear plug and replace with S62112 relief valve, see Refs. 27-34 below

2шт.

14

S62276

PLUG

SPACER - relief valve port plugs, not used, remove with rear plug and replace with S62112 relief valve, see Refs. 27-32 below

1шт.

15

S13714

PLUG

- check valve

1шт.

16

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- check valve

1шт.

17

S13715

SPRING

- check valve

1шт.

18

S13716

VALVE POPPET

POPPET - check valve

1шт.

19

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Side ports, Includes Ref. 20 Hex Hd, 1 5/16"-12 ORB

2шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug assembly

1шт.

S232345

KIT

- spool end cap, two kits replace Refs. 9-11, Includes: Ref. 21 - 25

2шт.

21

S111267

WASHER

- retainer

1шт.

22

S6394

O-RING

- tube

2шт.

23

S111268

SLEEVE

- spool end

1шт.

24

S111269

HEAD

CAP - end

1шт.

25

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 3-1/4"

2шт.

26

221-661

PLUG,Hex Hd, 1/8"-27

- 1/8" NPT

2шт.

S62112

CARTRIDGE

RELIEF VALVE ASSEMBLY - control valve, replaces one of Refs. 12 and 13, also Ref .14, set at 2500 PSI, Includes: Ref. 27 - 34

1шт.

27

S116073

CAP

DOME NUT - relief valve

1шт.

28

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- adjusting screw nuts

2шт.

29

S116072

JAM NUT

JAM NUT - adjusting screw

1шт.

30

N8556

O-RING,1" ID x 1-1/4" OD x 1/8"

- cartridge, outer

1шт.

31

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

BACKUP RING - inner cartridge O-ring

1шт.

32

A64436

O-RING,0.549" ID x 0.755" OD

- cartridge, inner

1шт.

33

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

34

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - poppet O-ring

1шт.

35

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3шт.

36

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.
