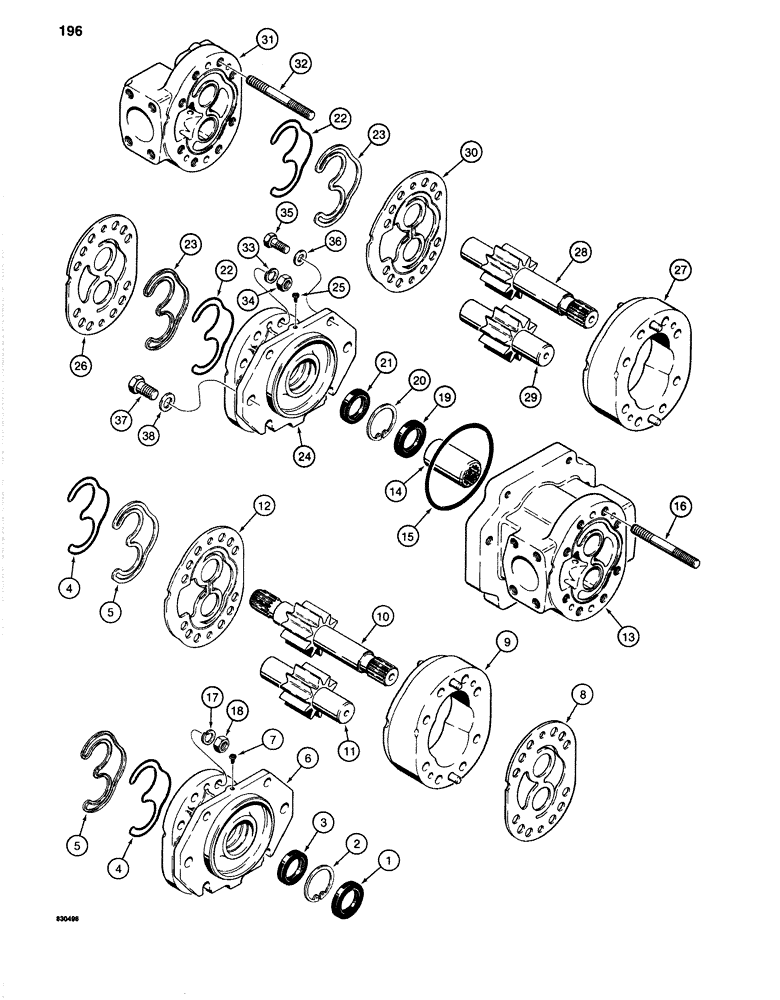

Запчасти Case 1280 (196) - S615229 HYDRAULIC PUMP, USED WITH DETROIT DIESEL ENGINE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
S615229
PUMP
ASSEMBLY - main hydraulic, tandem, Includes: Ref. 1 - 38
1шт.
N8396
KIT
PUMP ASSEMBLY - right-hand, next to engine, Includes: Ref. 1 - 18
1шт.
N7240
SEAL KIT
SEAL KIT - pump, Includes: Ref. 1 - 5
1шт.
1
N60212
SEAL
SEAL - shaft, outer
1шт.
2
D41419
RING
SNAP RING - seal retaining
1шт.
3
N60213
SEAL
- shaft, inner
1шт.
4
N60195
SEAL
- pre-load
2шт.
5
N60194
RETAINER
- seal
2шт.
6
N60185
COVER
- front
1шт.
7
N60210
PLUG
- front cover
1шт.
8
N60187
PLATE
- wear, front
1шт.
9
NSS
NOT SOLD SEPARAT
HOUSING - gear
1шт.
10
N60193
GEAR
DRIVE GEAR - pump
1шт.
11
N60189
GEAR
DRIVEN GEAR - pump
1шт.
12
N60191
PLATE
- wear, rear
1шт.
13
N60192
PORT
SECTION - port
1шт.
14
N60224
COUPLING
- pump shaft
1шт.
15
S5752
O-RING,4.987" ID x 5.193" OD x 0.103"
- rear seal
1шт.
16
N60211
STUD
- pump tie
8шт.
17
192-24
LOCK WASHER,9/16"
WASHER, LOCK, 9/16"
8шт.
18
129-106
NUT,9/16"-12, G5
- hex, 9/16" - 12 NC
8шт.
N8397
PUMP
ASSEMBLY - left-hand, away from engine, Includes: Ref. 19 - 34
1шт.
N7240
SEAL KIT
SEAL KIT - pump, Includes: Ref. 19 - 23
1шт.
19
N60212
SEAL
SEAL - shaft, outer
1шт.
20
D41419
RING
SNAP RING - seal retaining
1шт.
21
N60213
SEAL
- shaft, inner
1шт.
22
N60195
SEAL
- pre-load
2шт.
23
N60194
RETAINER
- seal
2шт.
24
N60185
COVER
- front
1шт.
25
N60210
PLUG
- front cover
1шт.
26
N60187
PLATE
- wear, front
1шт.
27
NSS
NOT SOLD SEPARAT
HOUSING - gear
1шт.
28
N60190
GEAR
DRIVE GEAR - pump
1шт.
29
N60189
GEAR
DRIVEN GEAR - pump
1шт.
30
N60191
PLATE
- wear, rear
1шт.
31
N60186
COVER
- rear, port end
1шт.
32
N60211
STUD
- pump tie
8шт.
33
192-24
LOCK WASHER,9/16"
WASHER, LOCK, 9/16"
8шт.
34
129-106
NUT,9/16"-12, G5
- hex, 9/16" - 12 NC
8шт.
35
26-816
BOLT,Hex, 1/2" - 13 x 1", Gr 8
- hex head, 1/2" - 13 NC x 1"
4шт.
36
196-15
WASHER,17/32" x 1 1/6" x .134"
- flat, 1/2", hardened, if used
4шт.
37
26-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 8
- hex head, 5/8" - 11 NC x 1"
2шт.
38
196-30
WASHER,11/16" x 1 1/2" x .134", HDN
- flat, 5/8", hardened, if used
2шт.
Выбрано товаров: 43
