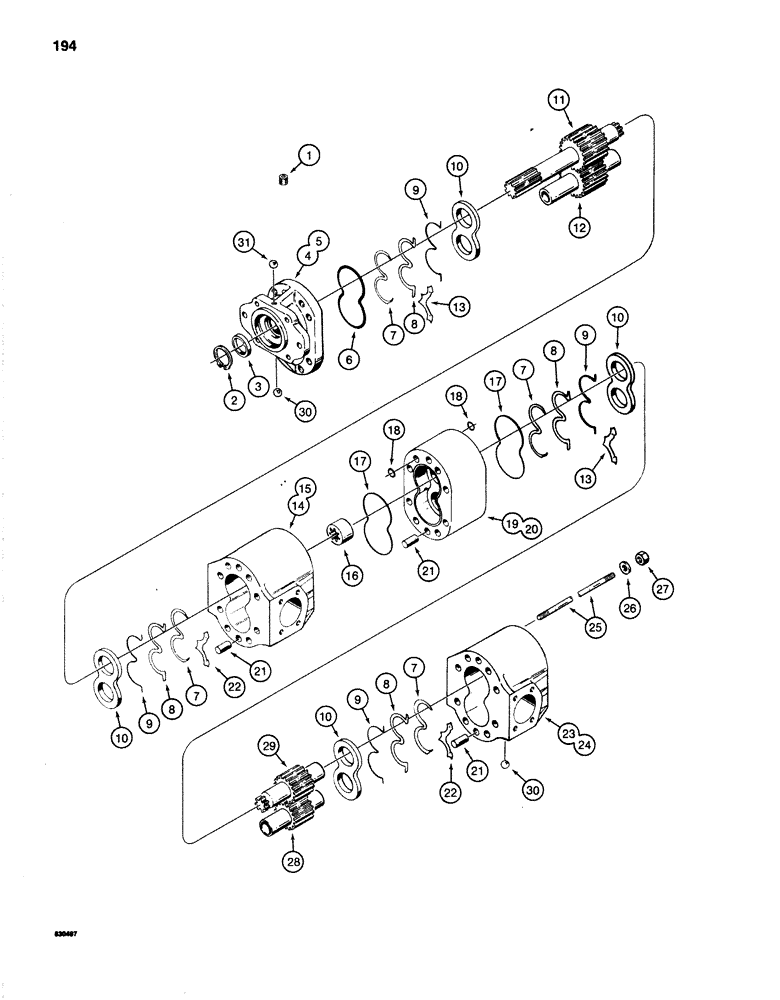

Запчасти Case 1280 (194) - S513590 HYDRAULIC PUMP, USED WITH CASE ENGINE (07) - HYDRAULIC SYSTEM

S513590

HYDRAULIC PUMP

PUMP ASSEMBLY - main hydraulic Tyrone No. TP 25350-350C, Includes: Ref. 1 - 31

1шт.

1

L35776

PLUG

- discharge port

1шт.

2

D41419

RING

SNAP RING - seal retaining

1шт.

3

N6843

SEAL

- drive shaft

1шт.

4

S112363

FLANGE

COVER - front, at drive shaft, Includes: Ref. 5

1шт.

5

S109040

BUSHING

- front cover, not shown

2шт.

6

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- front cover

1шт.

7

S108490

OIL SEAL

SEAL - ring

4шт.

8

S114828

OIL SEAL

SEAL - backup

4шт.

9

S108891

SEAL

O-RING - wear plate

4шт.

10

S114855

PLATE

- wear

4шт.

S113931

KIT

GEAR SET - front, with drive shaft, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

13

S108894

PLATE

- isolation, top

2шт.

14

S109058

HYDRAULIC PUMP

BODY - pump, front section, Includes: Ref. 15

1шт.

15

S109040

BUSHING

- pump body, not shown

2шт.

16

S108895

COUPLING

- splined, front gear set to rear gear set

1шт.

17

S98713

O-RING

- pump body

2шт.

18

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- stud seal

16шт.

19

S108488

BODY - pump, center section, Includes: Ref. 20

1шт.

20

S109040

BUSHING

- pump body, not shown

2шт.

21

D41414

PIN

DOWEL PIN - pump body

6шт.

22

S108893

PLATE

- isolation, bottom

2шт.

23

S109059

BODY

- pump, rear section, Includes: Ref. 24

1шт.

24

S109040

BUSHING

- pump body, not shown

2шт.

25

S108898

STUD

- retaining, pump body

8шт.

26

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8"

8шт.

27

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8" - 18 NF, plated

8шт.

S112365

KIT

GEAR SET - rear, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

29

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

30

211-7

BALL,1/4" Dia

- front cover and rear section 1/4" Dia

2шт.

31

S113599

BALL

- front cover, 17/64" diameter

1шт.

S236841

HYDRAULIC PUMP

KIT - pump, front section, includes reference numbers 1 - 18, 21, 22, 30, and 31

1шт.

S236842

KIT

- pump, rear section, includes reference numbers 7 - 10, 13, 16 - 24, 28, 29, and 30

1шт.
