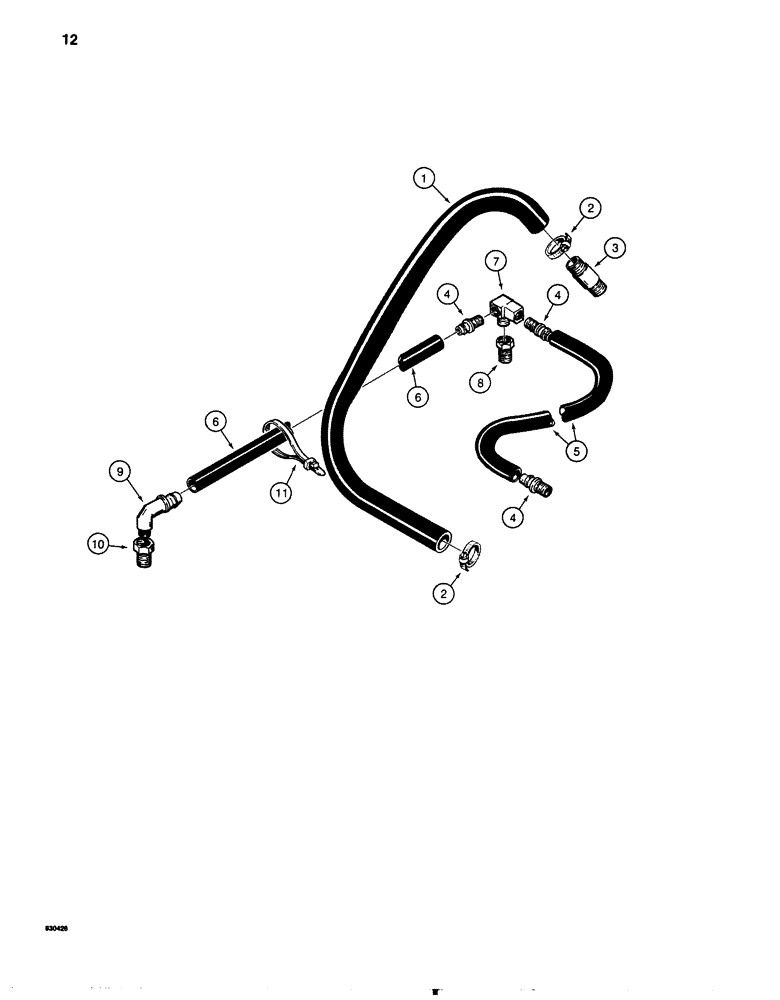

Запчасти Case 1280 (012) - COOLING SYSTEM HOSES, DETROIT DIESEL ENGINE ONLY (01) - ENGINE

1

REF

INSTRUCTION

HOSE - radiator surge line, 1" (25.4 mm) ID x 1-1/2" (38.1 mm) OD x 48" (1219 mm) long, cut from S118438 hose, see below

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

3

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - at water pump, 3/4" NPT x 2"

1шт.

4

2203

BARB FITTING - engine purge hoses, 1/4" NPT

3шт.

5

REF

INSTRUCTION

HOSE - radiator purge line, 3/8" (9.5 mm) ID x 19/32" (15.1 mm) OD x 24" (610 mm) long, cut from S118400, see below

1шт.

6

REF

INSTRUCTION

HOSE - radiator purge line, 3/8" (9.5 mm) ID x 19/32" (15.1 mm) OD x 20" (508 mm) long, cut from S118400, see below

1шт.

7

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- 1/4" NPT

1шт.

8

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" NPT to 1/4" NPT, engine to tee

1шт.

9

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

BARB FITTING - 90 degree, 1/4" NPT

1шт.

10

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" NPT x 1/4" NPT, engine to barb fitting

1шт.

11

R38237

STRAP

TIE STRAP - hose

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk 0.38" ID x 300.00"

1шт.

S118438

HOSE,1.00" ID x 120.00", SAE 20R1

- Bulk 1.00" ID x 120.00", SAE 20R1

1шт.
