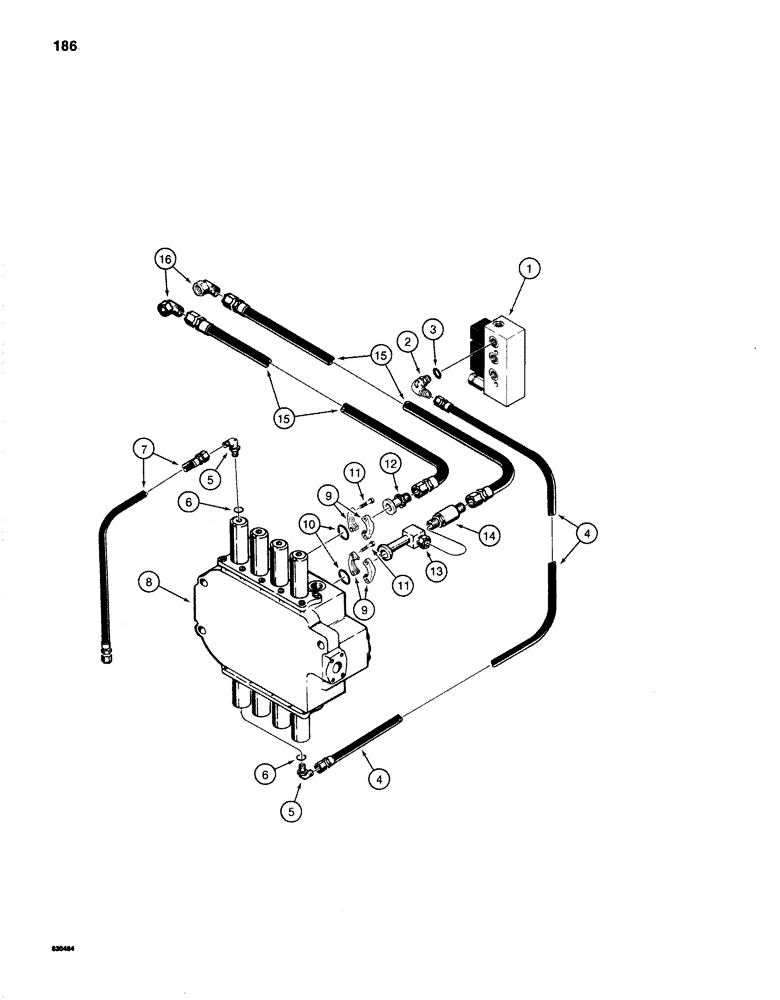

Запчасти Case 1280 (186) - FAST HOIST LINES (07) - HYDRAULIC SYSTEM

1

S617914

VALVE

SOLENOID CONTROL VALVE - parts list Figure 216

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, Includes: Ref. 3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - solenoid control valve to inside control valve, 50" (1270 mm) long

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- inside control valve, at spool ends, Includes: Ref. 6

2шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

S241219

HOSE ASSY.

HOSE - control circuit return, 50" (1270 mm) long

1шт.

8

S514301

VALVE

CONTROL VALVE - inside, parts list Figure 200

1шт.

9

A12306

FLANGE

SPLIT FLANGE - tube

4шт.

10

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

12

S232093

FITTING

TUBE - upper control valve port

1шт.

13

S236457

TUBE,1" OD x 5.06" L

- lower control valve port

1шт.

14

S93154

VALVE

CHECK VALVE - lower control valve port

1шт.

15

S235936

HOSE

- inside control valve to outside control valve (Replaces S8628)

2шт.

16

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

2шт.
