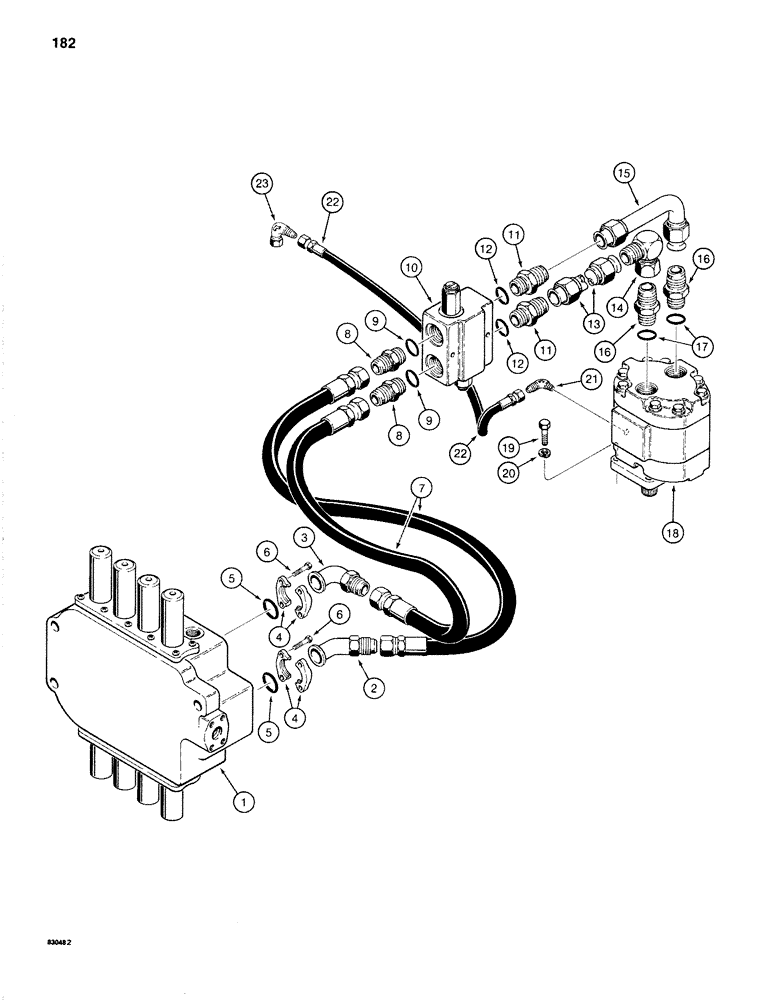

Запчасти Case 1280 (182) - SWING MOTOR HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

S514301

VALVE

CONTROL VALVE - inside, parts list Figure 200

1шт.

2

S232093

FITTING

TUBE - 45 degree, bottom port

1шт.

3

S235569

ELBOW

TUBE - 90 degree, top port

1шт.

4

A12306

FLANGE

SPLIT FLANGE - tube

4шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

7

S401536

HOSE

- control valve to crossover relief valve, 30" (762 mm) long

2шт.

8

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at crossover relief valve, Incl. Ref. 9

2шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

10

S236820

VALVE

RELIEF VALVE - crossover, swing motor hydraulic circuit

1шт.

11

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, at crossover relief valve, Includes: Ref. 12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

13

S223539

TUBE ASSY.,1" OD x 3.6" L

TUBE - bottom port (Replaces S239943)

1шт.

14

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree

1шт.

15

S241563

TUBE ASSY.,1.25" OD x 8.05, 4.75" L

TUBE - top port

1шт.

16

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, at swing motor, Includes: Ref. 17

2шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

18

S515586

MOTOR

- swing, hydraulic, parts list Figure 226

1шт.

19

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, motor drain port

1шт.

22

S241217

HOSE ASSY.

HOSE - motor drain, 21" (533 mm) long

1шт.

23

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.
