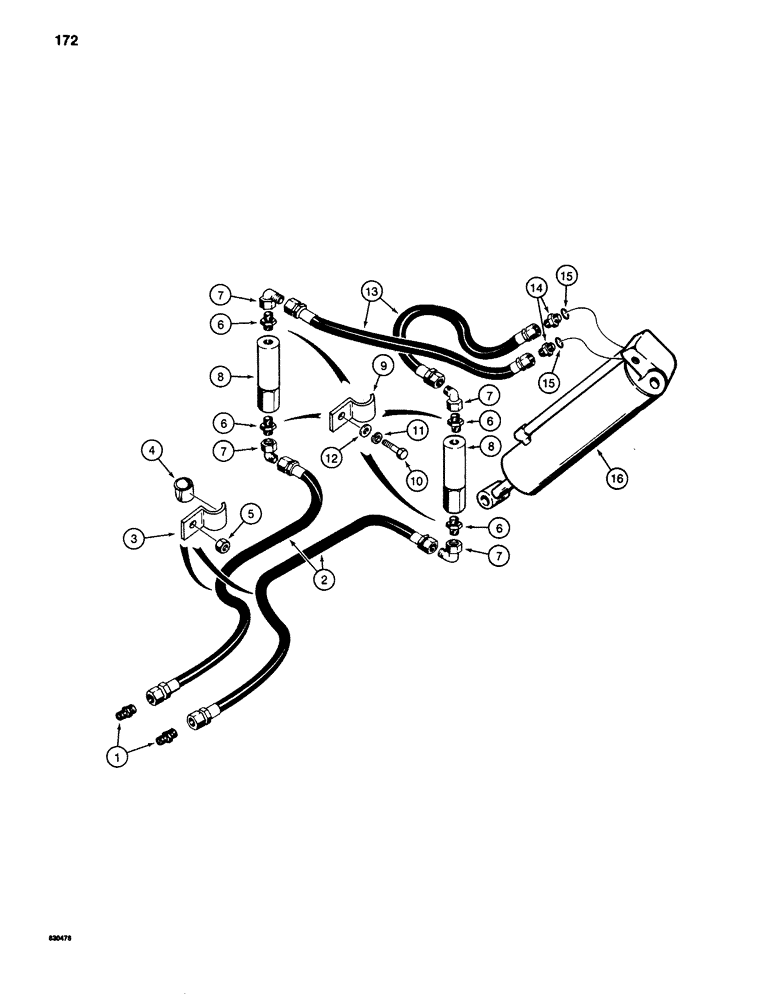

Запчасти Case 1280 (172) - WRIST-O-TWIST HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - male, straight

2шт.

2

S11229

HOSE ASSY.

HOSE - control valve to flow control valve, 49" (1245 mm) long

2шт.

3

L32065

CLAMP

-, Serial Range: hose-frame

2шт.

4

S75792

RING

PROTECTOR - hose, at clamp

2шт.

5

S118773

LOCK NUT

NUT - hex, 10 mm x 1.5

2шт.

6

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

4шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

4шт.

8

T54632

VALVE

- flow control, parts list Figure 224

2шт.

9

L32065

CLAMP

- flow control, Serial Range: valves-frame

4шт.

10

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex head, 10 mm - 1.5 x 25 mm (Grade 8.8)

4шт.

11

892-1010

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

S11226

HOSE

- flow control valve to cylinder, 20" (508 mm) long

2шт.

14

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 15

2шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

16

S614056

CYLINDER

- hydraulic, wrist-o-twist, parts list Figure 240

1шт.
