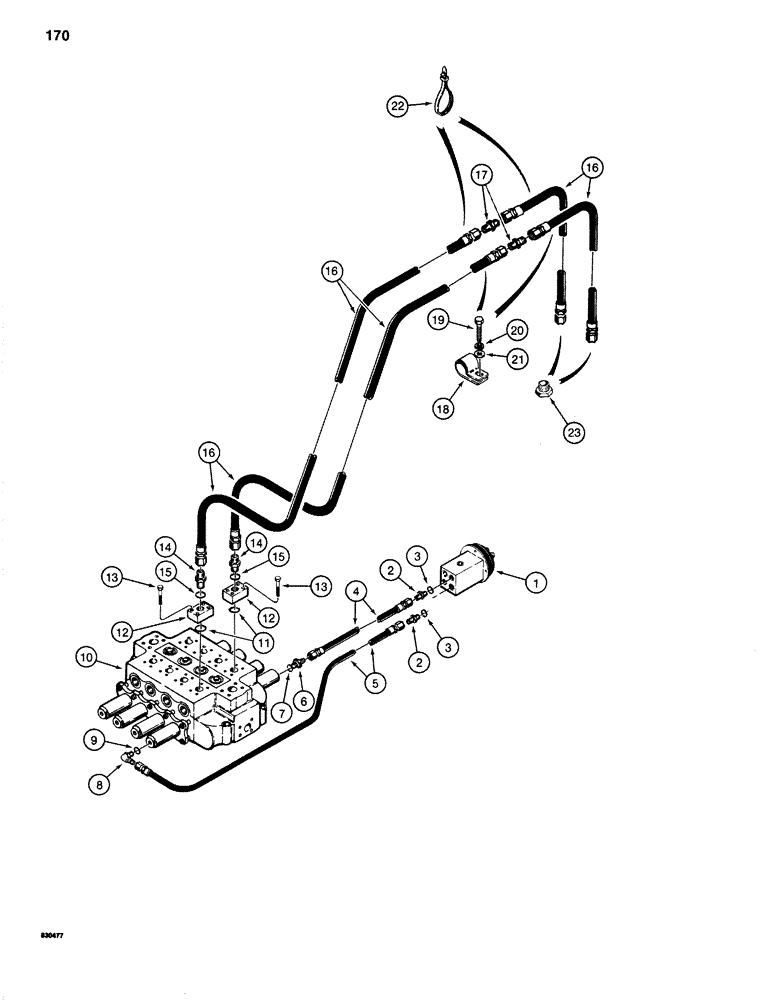

Запчасти Case 1280 (170) - AUXILIARY HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

S513193

VALVE

CONTROL VALVE - left-hand lever, parts list Figure 214

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241222

HOSE ASSY.

HOSE - to outside valve, 70" (1778 mm) long

1шт.

5

S241220

HOSE ASSY.

HOSE - to outside valve, 100" (5240 mm) long

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

REF

INSTRUCTION

CONTROL VALVE - outside, see Figure 204 for correct valve and components

1шт.

11

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- valve port

2шт.

12

S237982

COVER

BLOCK - adapter

2шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

8шт.

14

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 15 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

16

S75758

HOSE

- to auxiliary equipment, 246" (6248 mm) long

4шт.

17

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, hose to hose

2шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

16шт.

19

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

used on dipper Hex, M8 x 20, 8.8, Full Thd

6шт.

19

213-8075

BOLT - hex head, 8 mm - 1.25 x 75 mm (8.8) used on boom

10шт.

20

892-1108

LOCK WASHER,M8

16шт.

21

895-1108

WASHER

- flat, 8 mm

16шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

218-775

PLUG,3/4"-16, 37 Degree

Hose end 3/4"-16, 37º

2шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
