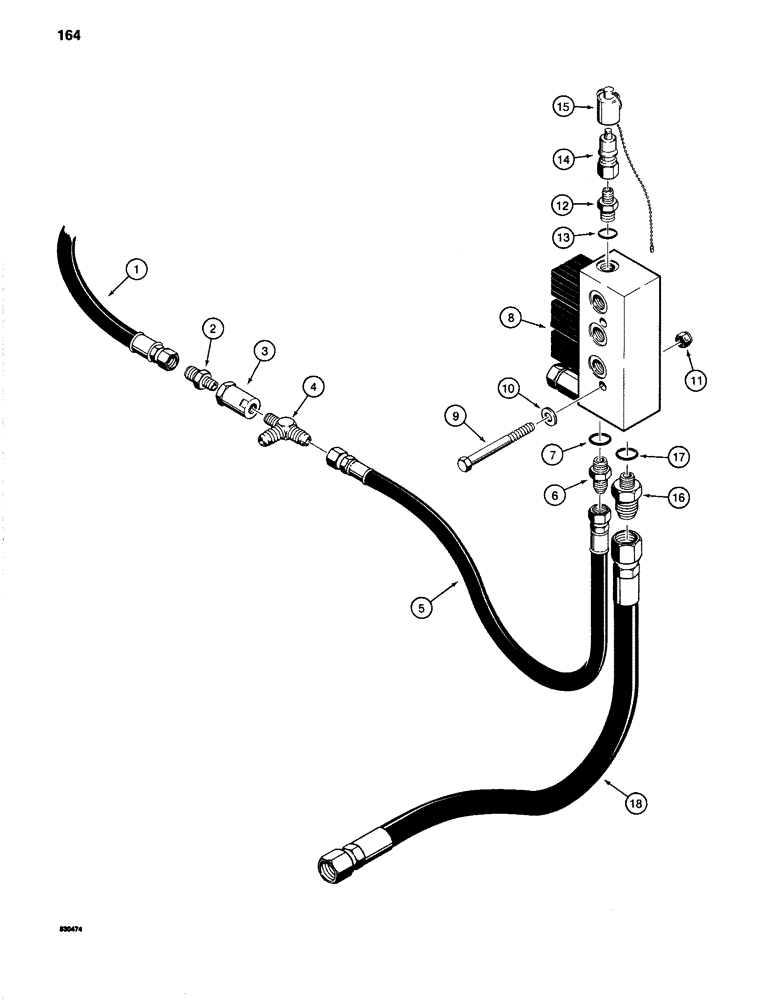

Запчасти Case 1280 (164) - HYDRAULIC CIRCUIT FOR CONTROLS, SOLENOID CONTROL VALVE CONNECTING LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

HOSE - from pump, see Figures 160 and 162 for hydraulic pump and lines

1шт.

2

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, hose to screen

1шт.

3

S98004

FILTER

SCREEN - solenoid control valve protection

1шт.

4

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

TEE - screen to hose (Replaces 218-613)

1шт.

5

S241217

HOSE ASSY.

HOSE - to solenoid control valve, 21" (533 mm) long

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - at bottom port, Incl. Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

S617914

VALVE

SOLENOID CONTROL VALVE - parts list Figure 216

1шт.

9

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

12

218-5443

FITTING

ADAPTER - top port, Includes: Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

14

S206607

DISC

QUICK DISCONNECT - test

1шт.

15

S206608

CAP

- dust, with chain

1шт.

16

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - at bottom port, Includes: Ref. 17

1шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

18

S8578

HOSE

- to tube tee in return line

1шт.
