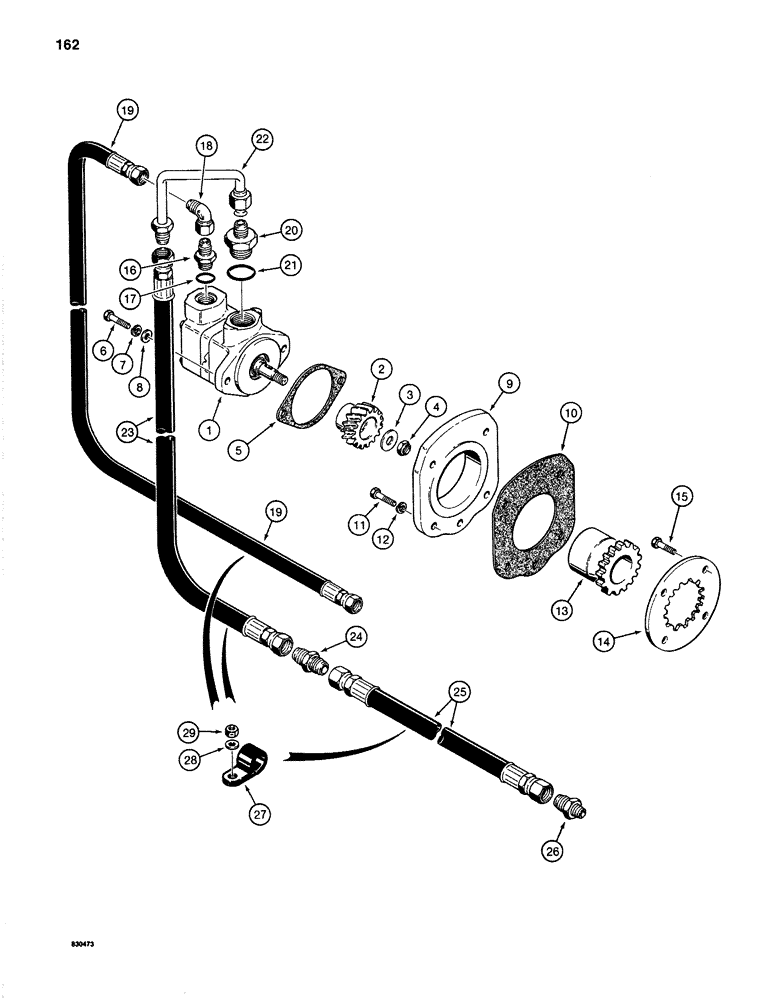

Запчасти Case 1280 (162) - HYDRAULIC CIRCUIT FOR CONTROLS, HYDRAULIC PUMP AND LINES - DETROIT DIESEL ENGINES (07) - HYDRAULIC SYSTEM

1

S516451

PUMP

- hydraulic, parts list Figure 198

1шт.

2

S108809

SPROCKET ASSY.

GEAR - pump drive shaft

1шт.

3

195-530

WASHER,7/16"

- flat, 1/2"

1шт.

4

131-58

LOCK NUT,1/2"-20, G5

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

5

S108814

GASKET

-, Serial Range: pump-adapter

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened

2шт.

9

REF

INSTRUCTION

ADAPTER - pump to engine, not available from Case, purchase from Detroit Diesel dealer, their part No 5122386

1шт.

10

S108813

GASKET

-, Serial Range: adapter-engine

1шт.

11

REF

INSTRUCTION

BOLT - hex head, supplied with engine

4шт.

12

REF

INSTRUCTION

WASHER - lock, supplied with engine

4шт.

13

S108810

COUPLING

-, Serial Range: sprocket-disc

1шт.

14

S86382

GEAR

DISC - engine camshaft gear

1шт.

15

S108817

BOLT

- special, disc to engine camshaft gear

4шт.

16

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, pump outlet port, Includes: Ref. 17

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.

19

S241220

HOSE ASSY.

HOSE - to solenoid control valve, 70" (1778 mm) long, see Figure 164 for connecting parts to solenoid control valve

1шт.

20

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, pump inlet port, Includes: Ref. 21

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

22

S240348

TUBE ASSY.,0.5" OD x 4.25, 3.75" L

TUBE - to pump inlet port

1шт.

23

S8578

HOSE

- from cooler line, upper, 26" (660 mm) long

1шт.

24

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, hose to hose

1шт.

25

S8582

HOSE ASSY.

HOSE - from cooler line, lower, 60" (1524 mm) long

1шт.

26

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight cooler line to hose, see Figure 154 for hydraulic oil cooler circuit

1шт.

27

R14668

CLAMP

- hose

3шт.

28

195-104

WASHER,3/8"

- flat, 3/8"

3шт.

29

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
