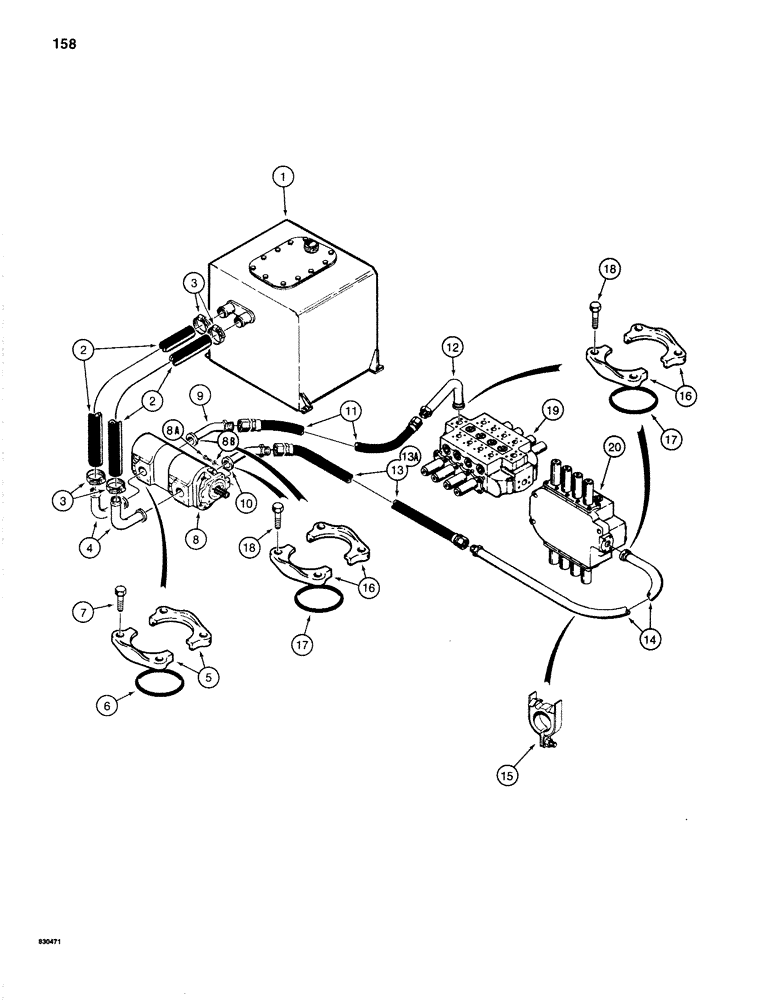

Запчасти Case 1280 (158) - MAIN HYDRAULIC PUMP LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 152

1шт.

2

REF

INSTRUCTION

HOSE - to pump, 37" (940 mm) long, cut from S118379, see below

2шт.

3

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- hose

4шт.

4

S238509

TUBE,2" OD x 4.81, 8" L

- to pump, used with Case engine

2шт.

4

S238798

TUBE,2" OD x 6.8, 4.7" L

- to pump, used with Detroit Diesel engine

2шт.

5

L14386

CLAMP

SPLIT FLANGE - tube, used with Case engine

4шт.

5

A14141

FLANGE

SPLIT FLANGE - tube, used with Detroit Diesel engine

4шт.

6

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- tube, used with Case engine

2шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- tube, used with Detroit Diesel engine

2шт.

7

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 7/16" - 14 NC x 1-3/4", used with Case engine

8шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex head, 7/16" - 14 NC x 1-1/2", used with Detroit Diesel engine

8шт.

8

REF

INSTRUCTION

PUMP - main hydraulic, see Figures 194 and 196 for correct pump and component parts

1шт.

8a

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

8b

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened

2шт.

9

S235919

ADAPTER

TUBE - from rear pump port, used with Case engine

1шт.

9

S26936

TUBE

- from rear pump port, used with Detroit Diesel engine

1шт.

10

S26936

TUBE

- from front pump port, all models

1шт.

11

S8628

HOSE

- to outside control valve, 36" (914 mm) long

1шт.

12

S236427

TUBE,1.25" OD x 8.06, 5.56" L

- to outside control valve

1шт.

13

S235936

HOSE

- to inside control valve, 49" (1245 mm) long, if used, see Ref. 13A

1шт.

13a

S8628

HOSE

- to inside control valve, 36" (914 mm) long, if used, see Ref. 13

1шт.

14

S236934

TUBE,1.25" OD x 5.06, 19.56" L

- to inside control valve, used with Case engine

1шт.

14

S241907

TUBE ASSY.,1.25" OD x 15.05, 5" L

TUBE - to inside control valve, used with Detroit Diesel engine, when replacing tube on machines with 36" (914 mm) hose, also order S235936 hose, Ref. 13A

1шт.

15

S93266

CLAMP

- tube

1шт.

16

A12301

CLAMP,Half

SPLIT FLANGE - tube

8шт.

17

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube

4шт.

18

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

19

S514301

VALVE

CONTROL VALVE - outside, parts list Figures 204 and 206

1шт.

20

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 200 and 202 for correct valve and component parts

1шт.

S118379

HOSE,2.00" ID x 60.00", SAE 100R4

2.00" ID x 60.00" Bulk, SAE 100R4

1шт.
