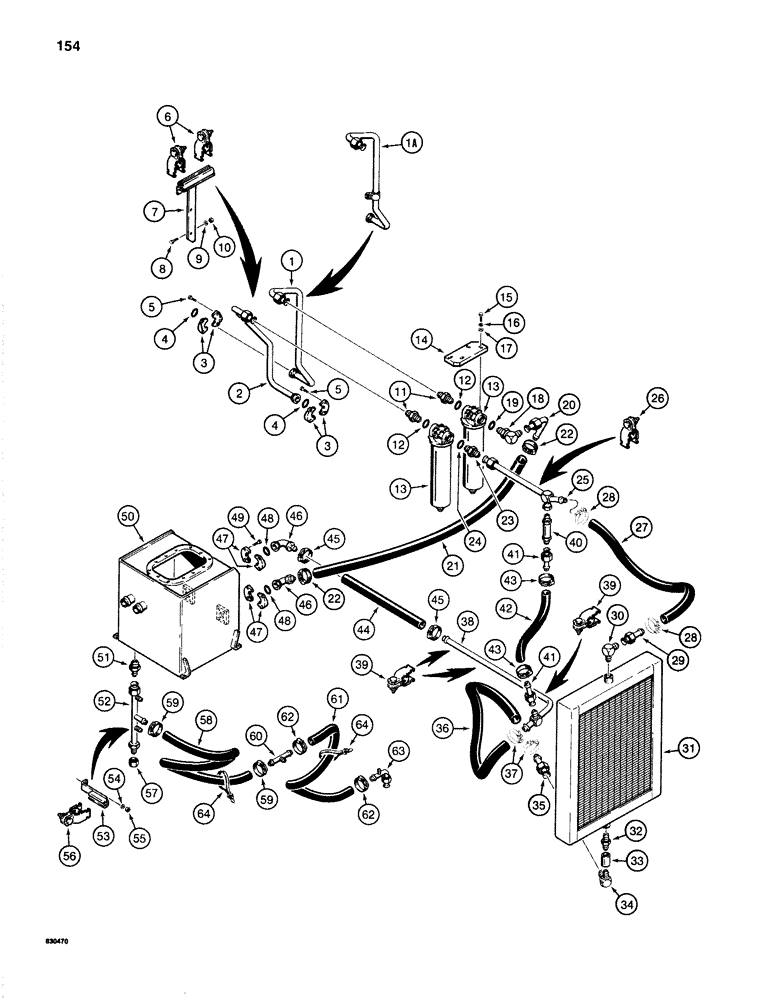

Запчасти Case 1280 (154) - HYDRAULIC OIL FILTER AND COOLER LINES (07) - HYDRAULIC SYSTEM

1

S516038

TUBE ASSY.,1.5" OD

TUBE - outside control valve to front filter

1шт.

1a

S617803

TUBE ASSY.

TUBE - outside control valve to front filter, models with both auxiliary and leveler hydraulic circuits

1шт.

2

S516037

TUBE ASSY.,1.5" OD

TUBE - inside control valve to rear filter

1шт.

3

A14157

FLANGE

SPLIT FLANGE - tube

4шт.

4

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- tube

2шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

6

S98324

CLAMP

- tube

2шт.

7

S234786

BRACKET

- filter support

1шт.

8

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

S95569

WASHER

- flat, 1/2", hardened

2шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

11

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, tubes to filter, Includes: Ref. 12

2шт.

12

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

13

S616067

FILTER

- hydraulic oil, parts list Figure 230

2шт.

14

S241848

BAR

PLATE - filter mounting

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

18

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, front filter outlet, Includes: Ref. 19

1шт.

19

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- elbow

1шт.

20

S235862

TUBE,1.5" OD x 6.5, 6.5" L

- front filter outlet

1шт.

21

REF

INSTRUCTION

HOSE - to hydraulic reservoir, 19" (483 mm) long, cut from S118407, see below

1шт.

22

S85429

CLAMP

- hose

2шт.

23

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, rear filter outlet, Includes: Ref. 24

1шт.

24

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

25

S516406

TUBE ASSY.,27.4, 1.5" L

TUBE - rear filter outlet

1шт.

26

S98324

CLAMP

- tube, see Ref. 19 Figure 014 or Ref. 19 Figure 016 for clamp support

1шт.

27

REF

INSTRUCTION

HOSE - to oil cooler, 38" (965 mm) long, cut from S118407, see below

1шт.

28

S85429

CLAMP

- hose

2шт.

29

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - to oil cooler

1шт.

30

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree, oil cooler inlet

1шт.

31

S600253

COOLER, OIL

OIL COOLER - hydraulic oil

1шт.

32

217-1074

HYD CONNECTOR,1" - 11-1/2 NPTF

NIPPLE - 1" NPT

1шт.

33

217-1105

COUPLING

- 1" NPT

1шт.

34

S119263

ELBOW

- 90 degree, oil cooler outlet

1шт.

35

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - oil cooler outlet

1шт.

36

REF

INSTRUCTION

HOSE - from oil cooler, 42" (1067 mm) long, cut from S118407, see below

1шт.

37

S85429

CLAMP

- hose

2шт.

Qty's of clamps have been doubled between the oil cooler and hyd. tank to reduce the oil leaks.

1шт.

S118407

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

38

S512420

LINE

TUBE - to hydraulic reservoir

1шт.

39

S98324

CLAMP

- tube

3шт.

40

S105386

VALVE

CHECK VALVE - return line

1шт.

41

S215412

TUBE,1.25" OD x 3" L

- return

2шт.

42

REF

INSTRUCTION

HOSE - return, 13" (330 mm) long, cut from S118465, see below

1шт.

43

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

44

REF

INSTRUCTION

HOSE - to hydraulic reservoir, 16" (406 mm ) long, cut from S118407, see below

1шт.

45

S85429

CLAMP

- hose

2шт.

46

S236134

- 90 degree, reservoir inlet

2шт.

47

A14157

FLANGE

SPLIT FLANGE - elbow

4шт.

48

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- elbow

2шт.

49

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x -1/4"

8шт.

50

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 152

1шт.

51

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - reservoir bottom

1шт.

52

S238575

LINE

TUBE - reservoir drain

1шт.

53

S235039

BRACKET

- tube clamp

1шт.

54

S95569

WASHER

- flat, 1/2" hardened

1шт.

55

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

56

S98324

CLAMP

- tube

1шт.

57

218-760

CAP,37 Degree, 1 7/8"-12

- reservoir drain

1шт.

58

REF

INSTRUCTION

HOSE - return, 25" (635 mm ) long, cut from S118383, see below

1шт.

59

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

60

S238083

TUBE - return

1шт.

61

REF

INSTRUCTION

HOSE - return, 48" (1219 mm) long, cut from S118383, see below

1шт.

62

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

63

S229693

TUBE,1" OD x 3, 3.75" L

- return, from swivel port No. 1

1шт.

64

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk roll 1.25" ID x 180.00", SAE 100R3

1шт.

S118407

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.
