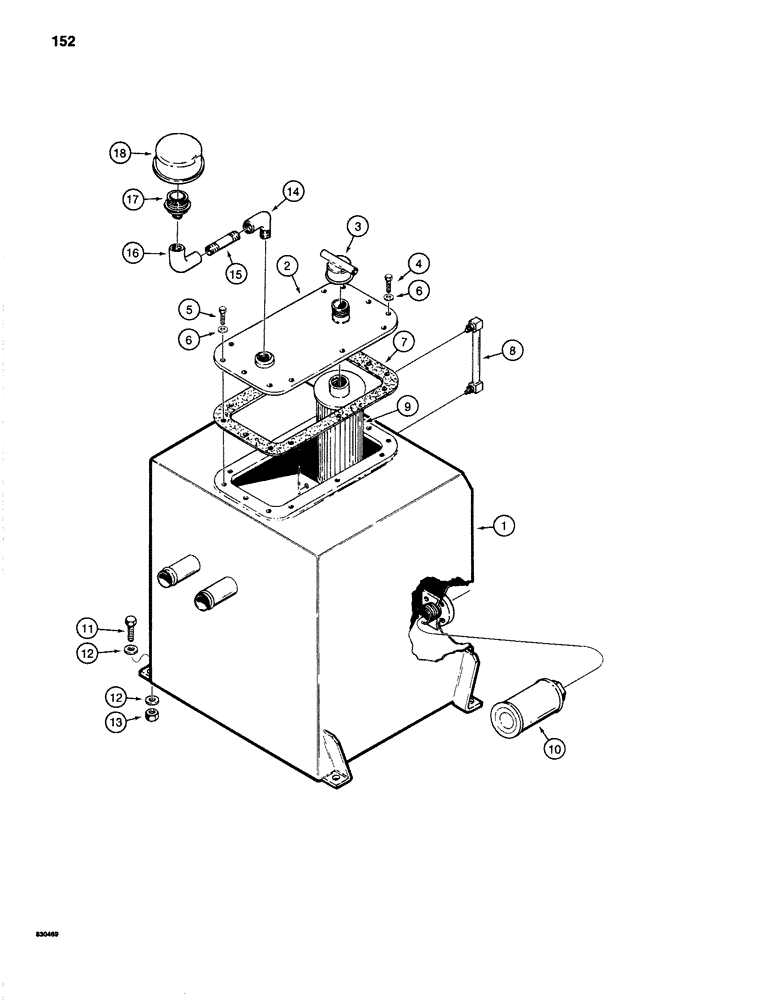

Запчасти Case 1280 (152) - HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

S618054

TANK, HYDRAULIC OIL

HYDRAULIC RESERVOIR ASSEMBLY - excavator (Replaces S616149), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HYDRAULIC RESERVOIR - excavator

1шт.

2

S236359

COVER

- reservoir

1шт.

3

S230688

CAP

- fill

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

6

195-102

WASHER,1/4"

- flat, 5/16"

12шт.

7

S230621

GASKET

- cover

1шт.

8

S107269

GAUGE

- oil level

1шт.

9

S514984

FILTER, ENGINE OIL

SCREEN - oil fill

1шт.

10

S117479

FILTER CARTRIDGE

DIFFUSER - return ports

2шт.

11

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

12

195-104

WASHER,3/8"

- flat, 7/16", used as shims

1шт.

13

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

14

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

15

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - 3/4" NPT x 2"

1шт.

16

217-1055

ELBOW,3/4" - 14 NPTF Female

- 90 degree, female, 3/4" NPT

1шт.

17

S115101

ADAPTER

- breather

1шт.

18

S115102

AIR CLEANER

BREATHER - hydraulic reservoir

1шт.
