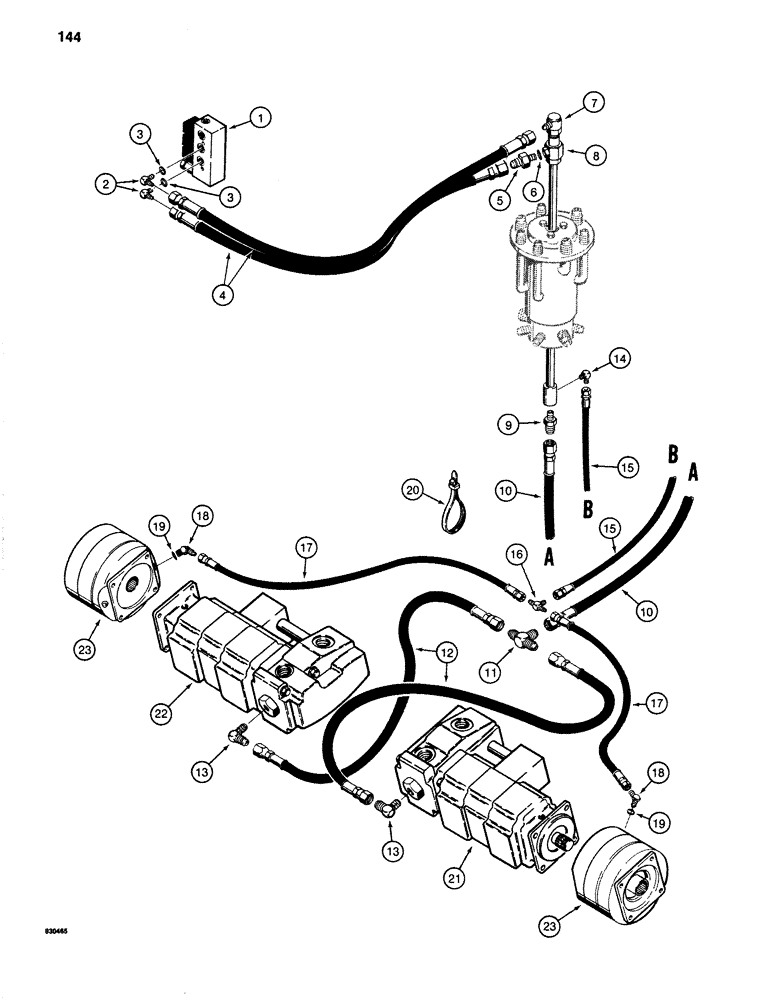

Запчасти Case 1280 (144) - DRIVE RANGE AND BRAKE HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

S617914

VALVE

SOLENOID CONTROL VALVE - parts list Figure 216

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at solenoid control valve, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - to inner swivel, 50" (1270 mm) long

2шт.

5

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at inner swivel, lower port, Includes: Ref. 6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

7

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, upper, see Figure 148 for correct assembly and component parts

1шт.

8

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, lower, parts list Figure 146

1шт.

9

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, inner swivel, bottom port

1шт.

10

S11227

HOSE

- drive range, from swivel, 36" (914 mm) long

1шт.

11

218-594

TEE,3/4"-16, 37 Degree

- drive range hoses

1шт.

12

S11227

HOSE

- drive range, to drive motors, 36" (914 mm) long

2шт.

13

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree, at drive motors

2шт.

14

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, inner swivel, side port

1шт.

15

S77467

HOSE

- brake, from swivel, 38" (965 mm) long

1шт.

16

218-591

TEE,7/16"-20, 37 Degree

- brake hoses

1шт.

17

S77467

HOSE

- to brakes, 38" (965 mm) long

2шт.

18

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, at brakes, Includes: Ref. 19

2шт.

19

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

S617342

MOTOR

- hydraulic, track drive, right-hand, parts list Figure 136

1шт.

22

S617341

MOTOR

- hydraulic, track drive, left-hand, parts list Figure 136

1шт.

23

S512396

BRAKE

- track drive, parts list Figure 150

2шт.
