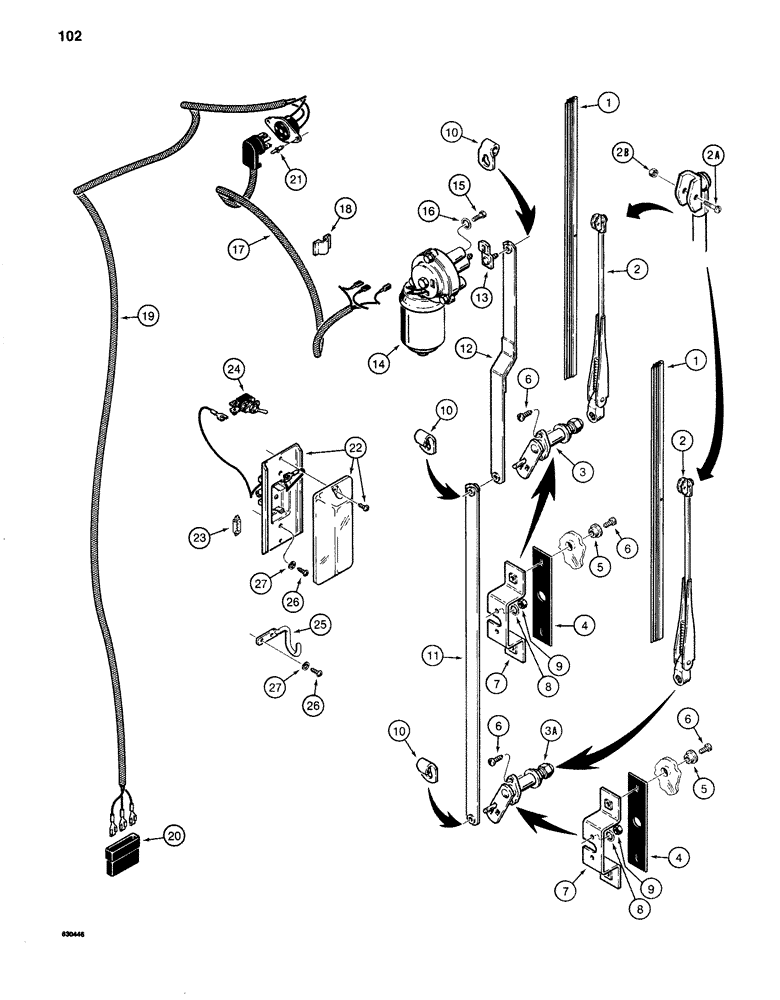

Запчасти Case 1280 (102) - WINDSHIELD WIPER AND DOME LAMP (06) - ELECTRICAL SYSTEMS

1

A165059

WIPER

BLADE - wiper arm

2шт.

2

S241559

WIPER ARM

ARM - windshield wiper, Includes: Ref. 2A and 2B

2шт.

2a

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

MACHINE SCREW - Fillister Head, No. 5 - 40 NC x 1/2"

1шт.

2b

131-502

LOCK NUT,#5-40

NUT - hex, self-locking, No. 5 - 40 NC

1шт.

3

S516458

SHAFT

ASSEMBLY - pivot, upper

1шт.

3a

S516457

SHAFT

ASSEMBLY - pivot, lower

1шт.

4

S218046

GASKET

- rubber, Serial Range: bracket-glass

2шт.

5

S90068

BUSHING

- rubber, bracket mounting

4шт.

6

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - No 10 - 24 NC x 5/8", plated

8шт.

7

S241525

BRACKET

- mounting, wiper shaft

2шт.

8

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

9

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

10

S240639

CLIP

-, Serial Range: arm-shaft

3шт.

11

S241524

LINK

- connecting, upper to lower shaft

1шт.

12

S241523

LINK

- connecting, upper, Serial Range: shaft-motor

1шт.

13

A36091

ARM

- drive, Serial Range: motor-link

1шт.

14

S118443

WIPER

MOTOR - wiper, 24 volt

1шт.

15

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex head, 1/4" - 28 NF x 3/4"

3шт.

16

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4"

3шт.

17

S242085

HARNESS

- wiring, wiper (Replaces N60273)

1шт.

18

F67097

CLIP - wiper harness

1шт.

19

S239623

HARNESS

- cab wiring

1шт.

20

223-172

CONNECTOR, ELEC

RECEPTACLE - wiring harness

1шт.

21

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

POP RIVET - 1/8" x 1/4"

2шт.

22

S239624

LIGHT ASSY.

LAMP ASSEMBLY - dome, Includes: Ref. 23

1шт.

23

F64364

BULB,12V

- dome lamp, No 561

1шт.

24

S117668

SWITCH

- toggle, dome lamp

1шт.

25

S61769

HOOK

- coat

1шт.

26

182-51

SCREW,Slotted Pan Hd, #6-32 x 1 1/8"

- round head, No 10 - 24 NC x 3/8"

4шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.
