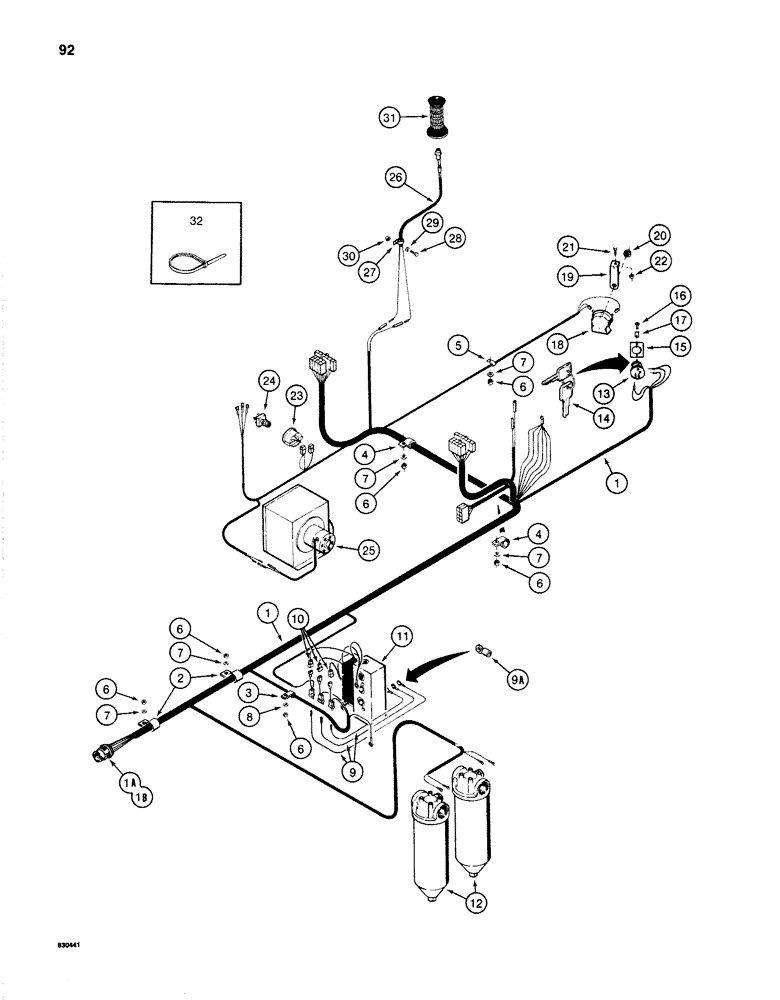

Запчасти Case 1280 (092) - ELECTRICAL HARNESS - CAB AND TURNTABLE (06) - ELECTRICAL SYSTEMS

1

S615668

HARNESS

- turntable, Includes: Ref. 1A and 1B

1шт.

1a

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness (Replaces G107264), Includes: Ref. 1B

1шт.

1b

S99512

CONTACT

PIN - plug, not shown (Replaces G99512)

8шт.

2

R14668

CLAMP

- harness, rear

2шт.

3

S64985

CLAMP

- wire to solenoid control valve

1шт.

4

T50103

CLAMP

- harness, front

2шт.

5

A61275

CLIP

CLAMP - horn wire

1шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

6шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8"

5шт.

8

195-104

WASHER,3/8"

- flat, 3/8"

1шт.

9

S238309

DIODE

WIRE - diode

3шт.

9a

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - wires

1шт.

10

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires

3шт.

11

S617914

VALVE

SOLENOID CONTROL VALVE - parts list Figure 216

1шт.

12

S616067

FILTER

- hydraulic oil, parts list Figure 230

2шт.

S108413

SWITCH

KEY SWITCH ASSEMBLY - electrical system, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

KEY SWITCH - electrical system

1шт.

14

R30074

SET

KEYS - switch, set of two keys

1шт.

15

S239946

PLATE

- switch mounting

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4"

2шт.

17

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

2шт.

18

D77650

HORN

- electrical

1шт.

19

S203190

BRACKET

- horn mounting

1шт.

20

L30866

LOCK NUT

- horn mounting

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

23

S515551

HOURMETER

- electric

1шт.

24

REF

INSTRUCTION

SWITCH - heater, if used, supplied with heater, see Figure 100 for heater parts list

1шт.

25

S239156

HEATER

- cab, if used, parts list Figure 100

1шт.

26

S238765

SWITCH

AND WIRE - fast hoist

1шт.

27

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- fast hoist switch wire

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

30

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

31

S1199857

GRIP - control lever, see Figure 244 for hand lever controls (Replaces S109220)

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
