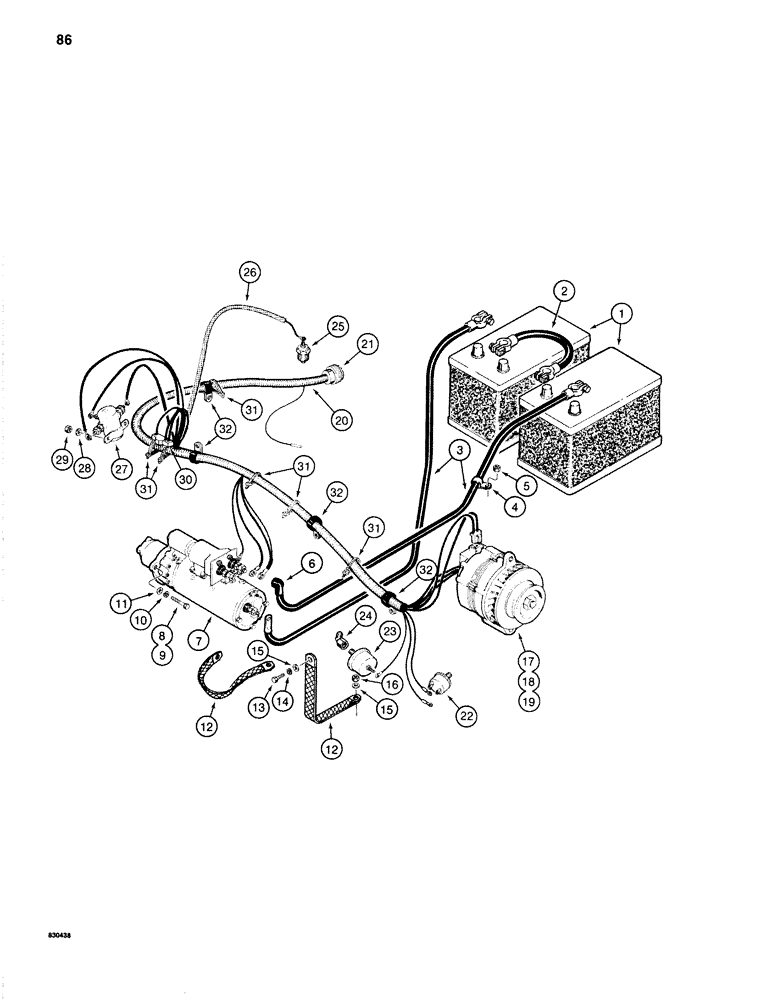

Запчасти Case 1280 (086) - CASE ENGINE ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

L13308

DRY BATTERY

- 12 volt, see Figure 084 for battery retainers

2шт.

2

S237885

NEG BATTERY CABLE

CABLE -, Serial Range: battery-battery

1шт.

3

S236999

CABLE PULLING GRIP

CABLE -, Serial Range: battery-starter

2шт.

4

49885

CLAMP

-, Serial Range: cables-frame

4шт.

5

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

6

S115407

BOOT

- rubber

1шт.

7

REF

INSTRUCTION

STARTER - engine, parts list Figure 080 and 082

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Starter mounting Hex, 1/2"-13 x 2", G5

2шт.

9

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Starter mounting Hex, 1/2"-13 x 3 1/4", G5

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Starter mounting 1/2"

3шт.

11

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", starter mounting

3шт.

12

S229640

CABLE

- ground, starter to engine and, Serial Range: engine-turntable

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Ground cable to engine Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Ground cable to engine 3/8"

1шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", ground cable to engine and frame

1шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, ground cable to turntable frame

1шт.

17

REF

INSTRUCTION

ALTERNATOR - electrical, parts list Figures 076 and 078, mounting brackets Figure 084

1шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal, not shown 1/4"

1шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal, not shown

1шт.

20

S614353

HARNESS

- engine, Includes: Ref. 21 and 21A

1шт.

21

S107265

PLUG

CONNECTOR - harness, Includes: Ref. 21A

1шт.

21a

S99517

CONTACT

- connector, not shown

8шт.

22

S63884

SWITCH

- hourmeter, oil pressure activated

1шт.

23

S108398

TRANSMITTER

SENDER - engine oil pressure

1шт.

24

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

25

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

26

REF

INSTRUCTION

LOOM - engine temperature sending wire, 24" (610 mm) long, cut from S118377, see below

1шт.

27

S240588

SOLENOID SWITCH

RELAY - starter

1шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", relay mounting

2шт.

29

86625061

NUT,1/4"-20, GB

NUT - hex, 3/8" - 16 NC, relay mounting

2шт.

30

S237284

RESISTOR

- alternator circuit

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

R14668

CLAMP

- harness and cable

1шт.

S118377

LOOM

- bulk roll, 240" (6096 mm) long

1шт.
