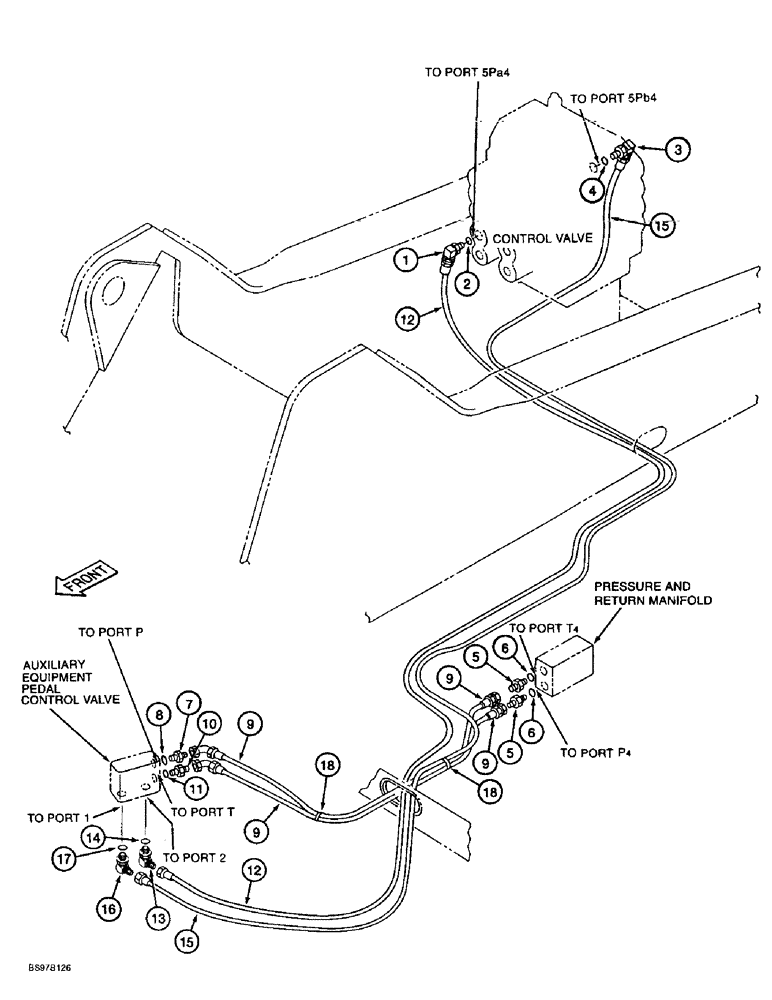

Запчасти Case 9060B (8-108) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS

1

156554A1

ELBOW

- 90 degree, special, includes: Ref. 2

1шт.

2

154475A1

O-RING

- elbow

1шт.

3

156554A1

ELBOW

- 90 degree, special, includes: Ref. 4

1шт.

4

154475A1

O-RING

- elbow

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

9

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long

2шт.

10

161841A1

HYD CONNECTOR

ADAPTER - straight, special, includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

12

157243A1

HOSE

- 4100 mm (161-7/8 inch) long

1шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

15

159082A1

HOSE

- 4800 mm (189 inch) long

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

18

170308A1

BAND

STRAP - tie

1шт.
