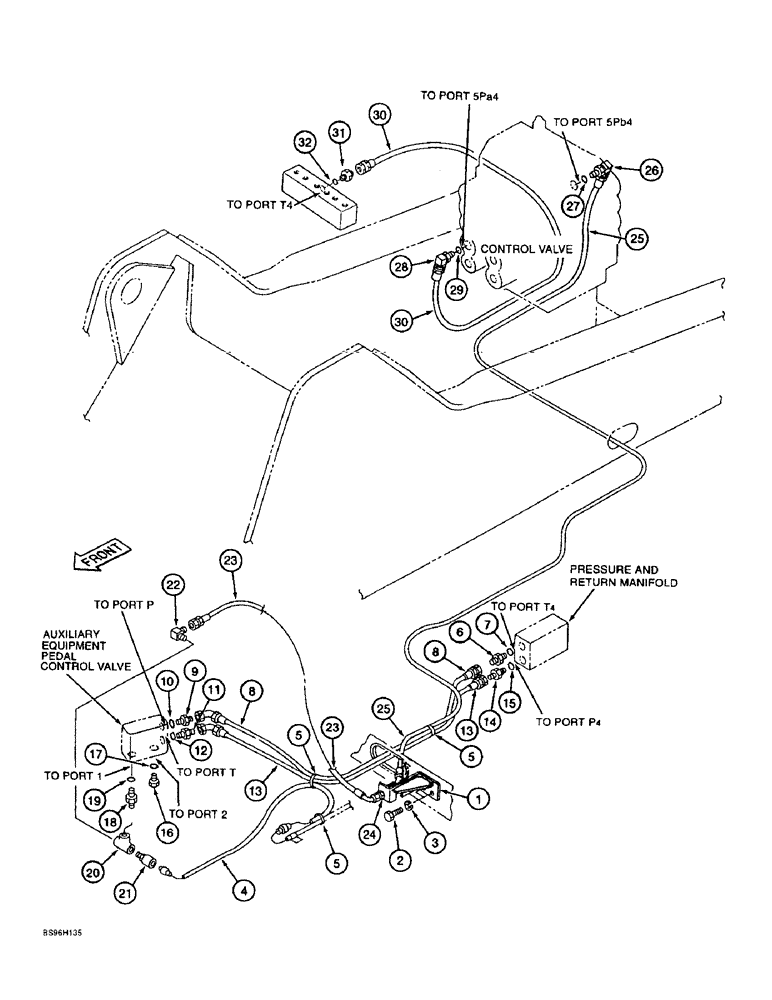

Запчасти Case 9060B (8-106) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162638A1
BRACKET
- mounting, bulkhead
1шт.
2
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 25 mm, class 10.9
2шт.
3
150409A1
WASHER
- flat, special, 10.5 x 21 x 3.2 mm
2шт.
4
159636A1
HARNESS
- wiring
1шт.
5
170308A1
BAND
STRAP - tie
1шт.
6
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, pressure and return lines, includes: Ref. 7
1шт.
7
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, pressure and return lines
1шт.
8
159045A1
HOSE ASSY.
HOSE - 1150 mm (45-1/4 inch) long, pilot pressure supply line (pressure and return manifold port "P4" to pedal control valve port "P")
1шт.
9
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, pressure and return lines, includes: Ref. 10
1шт.
10
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, pressure and return lines
1шт.
11
161841A1
HYD CONNECTOR
ADAPTER - straight, special, pressure and return lines, includes: Ref. 12
1шт.
12
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, pressure and return lines
1шт.
13
159045A1
HOSE ASSY.
HOSE - 1150 mm (45-1/4 inch) long, pilot pressure return line (pedal control valve port "T" to pressure and return manifold port "T4")
1шт.
14
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, pressure and return lines, includes: Ref. 15
1шт.
15
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, pressure and return lines
1шт.
16
159002A1
PLUG
- port (in pedal control valve port "2"), control signal and relief lines, includes: Ref. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
- plug, control signal and relief lines
1шт.
18
152899A1
HYD CONNECTOR
CONNECTOR - straight, control signal and relief lines, includes: Ref. 19
1шт.
19
154467A1
O-RING,10.8mm ID x 2.4mm Width
- connector, control signal and relief lines
1шт.
20
152135A1
TEE
- special, control signal and relief lines
1шт.
21
159599A1
PRESSURE SWITCH
SWITCH - pressure, control signal and relief lines
1шт.
22
153596A1
ADAPTER
ELBOW - 90 degree, control signal and relief lines
1шт.
23
161659A1
HYDRAULIC HOSE
- 700 mm (27-5/8 inch) long, Auxiliary option control signal line (From tee in pedal control valve port "1" to fitting in bulkhead mounting bracket), Relief lines
1шт.
24
159481A1
ADAPTER
FITTING - special, control signal and relief lines
1шт.
25
165055A1
HOSE ASSY.
HOSE - 4000 mm (157-1/2 inch) long, auxiliary option control signal line (from fitting in bulkhead mounting bracket to control valve port "5Pb4"), relief lines
1шт.
26
156554A1
ELBOW
- 90 degree, special, control signal and relief lines, includes: Ref. 27
1шт.
27
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow, control signal and relief lines
1шт.
28
156554A1
ELBOW
- 90 degree, special, control signal and relief lines, includes: Ref. 29
1шт.
29
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow, control signal and relief lines
1шт.
30
157852A1
HOSE,6.30 mm ID x 1650.00 mm
- 1650 mm (64-15/16 inch) long, auxiliary option control signal relief line (from control valve port "Pa4" to drain manifold port "T4")
1шт.
31
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, control signal and relief lines, includes: Ref. 32
1шт.
32
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, control signal and relief lines
1шт.
Выбрано товаров: 32
