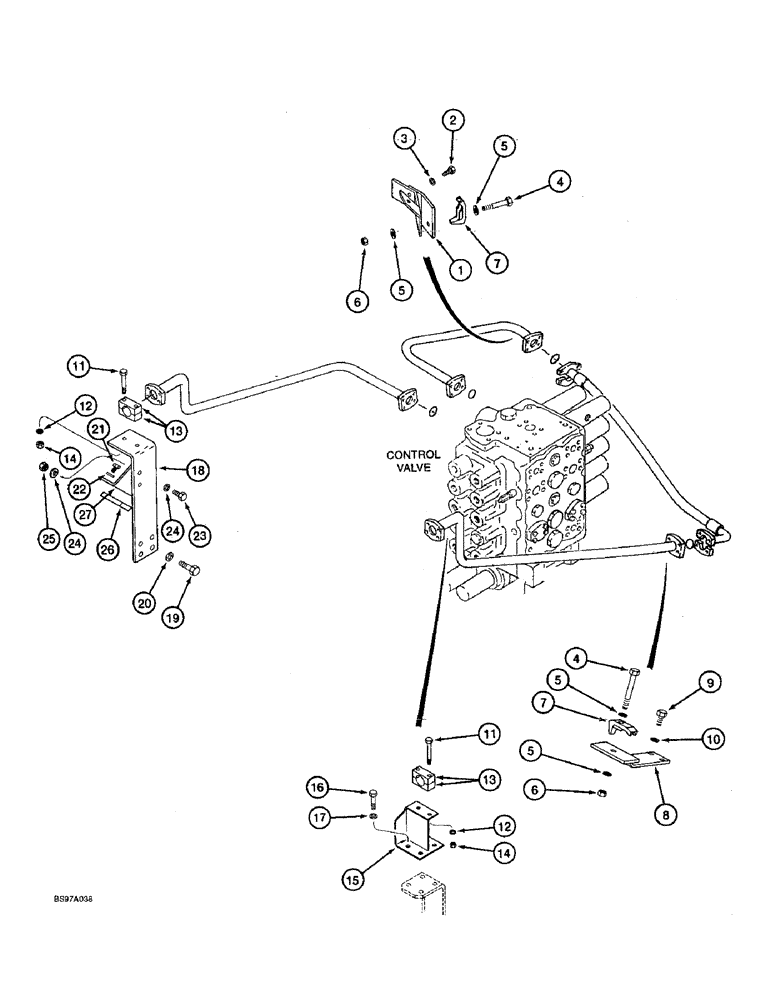

Запчасти Case 9060B (8-104) - AUXILIARY EQUIPMENT - DOUBLE ACTION, COMPONENT MOUNTING AND TUBE SUPPORTS (08) - HYDRAULICS

1

171160A1

SUPPORT

BRACKET - tube support

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

5

150811A1

WASHER

- flat, special, 12 mm

4шт.

6

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

7

152974A1

COLLAR

CLAMP - tube

2шт.

8

171159A1

SUPPORT

BRACKET - tube support

1шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

10

150811A1

WASHER

- flat, special, 12 mm

2шт.

11

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex, 12 - 1.75 x 90 mm, class 10.9

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

13

171166A1

CLAMP

- tube

4шт.

14

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

15

171156A1

BRACKET

- mounting, tube support, left-hand side

1шт.

16

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

17

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

18

171170A1

BRACKET

- manifold support

1шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

20

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

22

150811A1

WASHER

- flat, special, 12 mm

2шт.

23

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

24

150811A1

WASHER

- flat, special, 12 mm

4шт.

25

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

26

170741A1

BAR

SPACER - manifold support bracket

1шт.

27

171171A1

SUPPORT

BRACKET - support, manifold, right-hand side

1шт.
