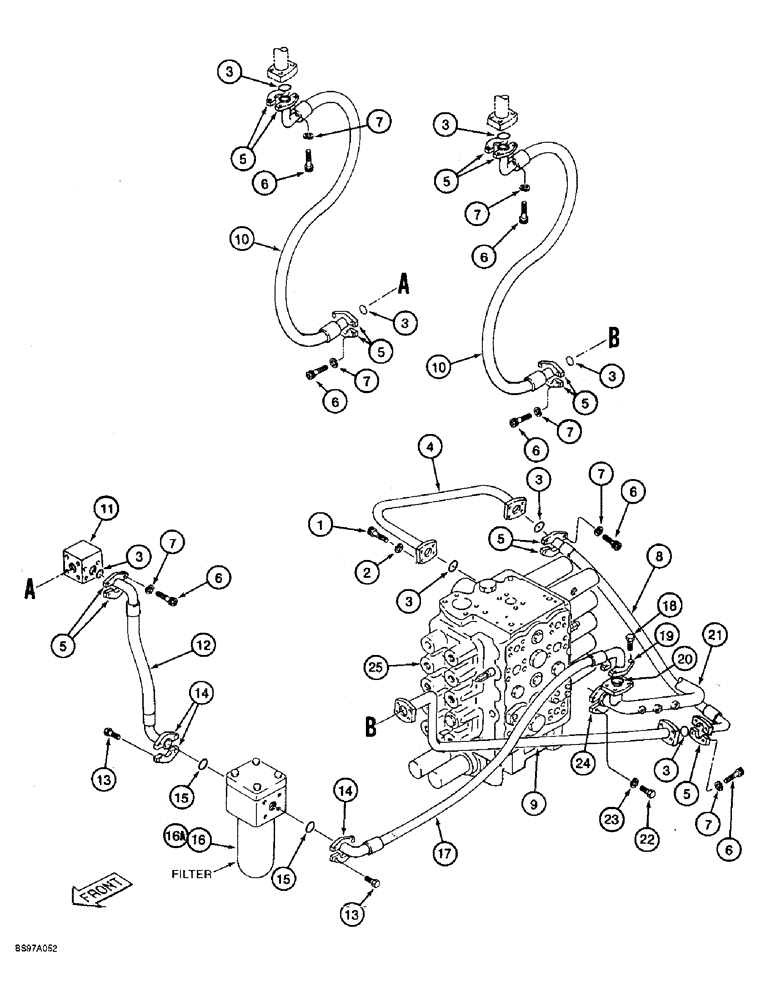

Запчасти Case 9060B (8-098) - AUXILIARY EQUIPMENT - SINGLE ACTION, BASIC HYDRAULICS (08) - HYDRAULICS

1

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

2

112309A1

LOCK WASHER

- lock, special

4шт.

3

162246A1

O-RING

- tube

8шт.

4

171155A1

TUBE

- control valve supply

1шт.

5

150561A1

FLANGE

- split, tube

14шт.

6

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

28шт.

7

112312A1

LOCK WASHER

- lock, 12 mm

28шт.

8

171154A1

HOSE ASSY.

HOSE - 700 mm (27-1/2 inch) long

1шт.

9

171157A1

TUBE

- control valve supply

1шт.

10

171172A1

HOSE ASSY.

HOSE - 2300 mm (90-1/2 inch) long

2шт.

11

171402A1

MANIFOLD

- hydraulic

1шт.

12

171404A1

HOSE ASSY.

HOSE - 625 mm (24-5/8 inch) long

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

14

171407A1

SHIN

CLAMP - split flange, hose

4шт.

15

162246A1

O-RING

- hose

2шт.

16

171310A1

FILTER

ASSEMBLY - hydraulic oil, includes: Ref. 16A

1шт.

16a

171595A1

ELEMENT

- filter, not shown

1шт.

17

171403A1

HOSE ASSY.

HOSE - 900 mm (35-1/2 inch) long, Serial Range: filter-valve

1шт.

18

413-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5

- hex, 7/16 NC x 1-1/8 inch

4шт.

19

171406A1

SHIN

FLANGE - split, hose

2шт.

20

153626A1

O-RING

- hose

1шт.

21

170951A1

TUBE,50.8 mm OD

- control valve to cooler, at control valve, see Figure 8-16 for related parts

1шт.

22

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 14 - 2.0 x 40 mm, class 10.9

4шт.

23

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

24

L14386

CLAMP

- split flange

2шт.

25

171225A1

VALVE

ASSEMBLY - control, parts list Figure 8-178 - 8-198

1шт.
