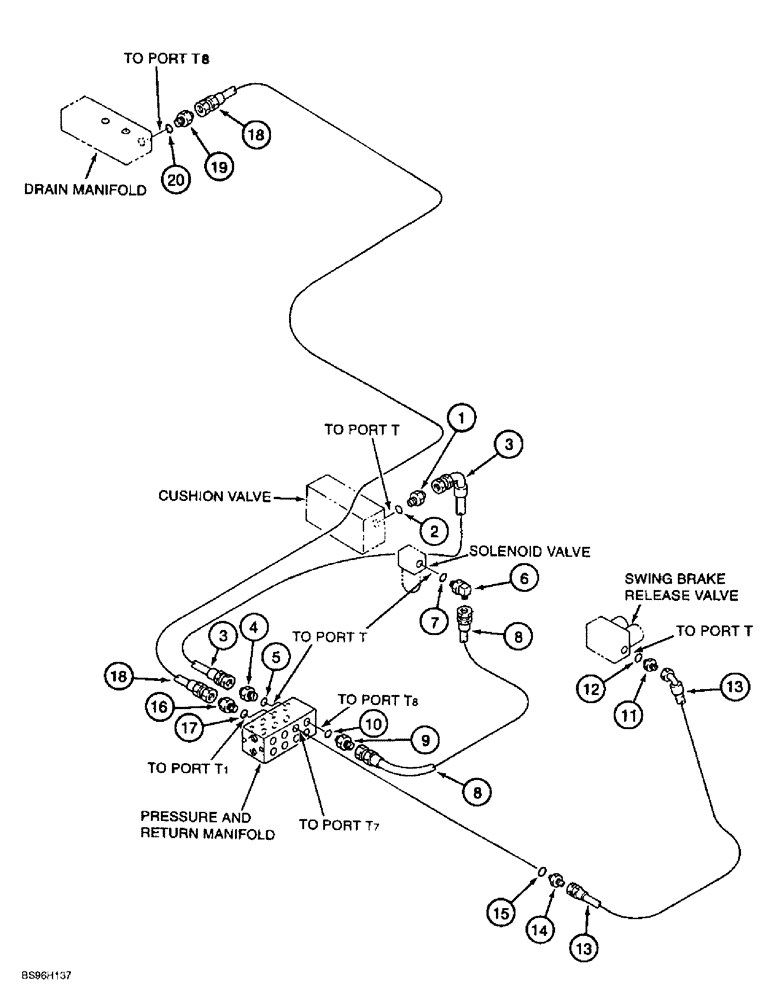

Запчасти Case 9060B (8-094) - PRESSURE AND RETURN MANIFOLD DRAIN LINES (08) - HYDRAULICS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 2

1шт.

2

154475A1

O-RING

- adapter

1шт.

3

162565A1

HOSE ASSY.

HOSE - 1000 mm (39-3/8 inch) long, cushion valve drain line (cushion valve port "T" to pressure and return manifold port "T")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

152281A1

HOSE,63.00 mm ID x 800.00 mm

63.00 mm ID x 800 mm - Solenoid valve drain line (Single-spool solenoid valve port "T" to pressure and return manifold port "T8")

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

153378A1

ADAPTER

- straight, includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

161482A1

HOSE ASSY.

HOSE - 1500 mm (59-1/16 inch) long, swing brake release valve drain line (swing brake release valve port "T" to pressure and return manifold port "T7")

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 17

1шт.

17

154475A1

O-RING

- adapter

1шт.

18

152771A1

HOSE ASSY.

HOSE - 3000 mm (118-1/8 inch) long, pressure and return manifold drain line (pressure and return manifold port "T1" to drain manifold port "T8")

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 20

1шт.

20

154475A1

O-RING

- adapter

1шт.
