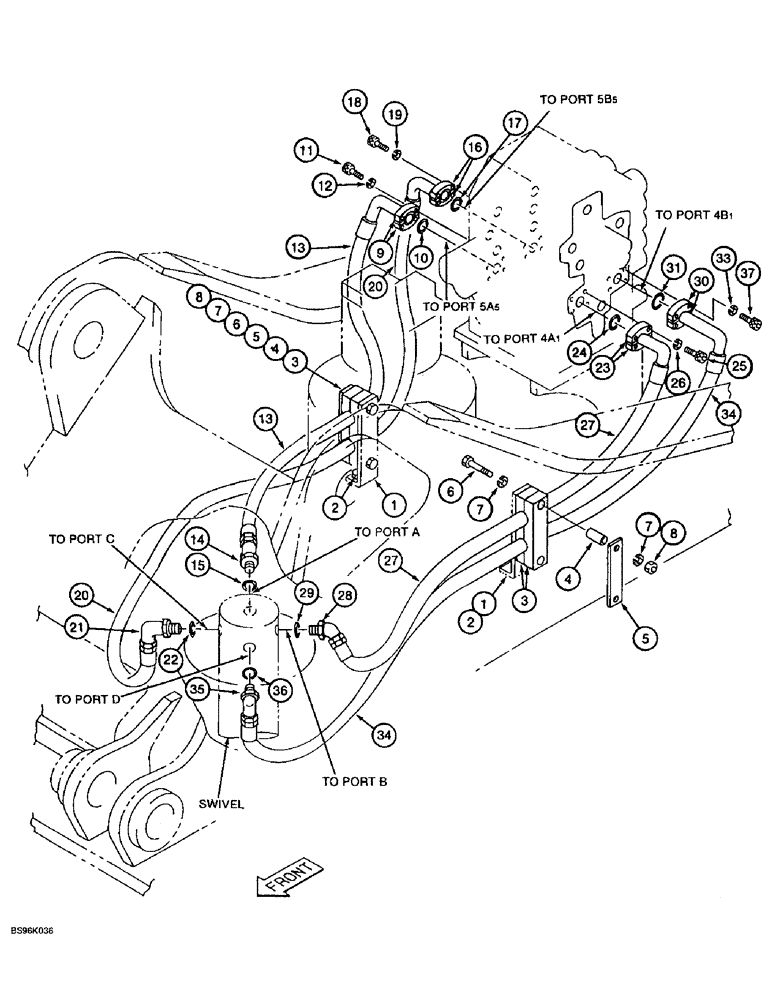

Запчасти Case 9060B (8-090) - FORWARD AND BACKWARD TRAVEL HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

163637A1

LARGE PLATE

BRACKET - mounting

2шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

3

152987A1

COLLAR

CLAMP - hose mounting

4шт.

4

152895A1

SPACER

- clamp

4шт.

5

152888A1

PLATE, SPACER

PLATE - clamp

2шт.

6

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

- hex, 10 - 1.5 x 100 mm class 10.9

4шт.

7

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.

9

A12306

FLANGE

CLAMP - split flange, right-hand travel lines

2шт.

10

162246A1

O-RING

- hose, right-hand travel lines

1шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Right-hand travel lines

4шт.

12

892-11010

LOCK WASHER,M10

RH travel lines M10

4шт.

13

170127A1

HOSE

- 1100 mm (43-5/16 inch) long, forward-travel line (control valve port "5A5" to swivel port "A"), right-hand

1шт.

14

163636A1

ELBOW

- 45 degree, right-hand travel lines, includes: Ref. 15

1шт.

15

154523A1

O-RING

- elbow, right-hand travel lines

1шт.

16

A12306

FLANGE

CLAMP - split flange, right-hand travel lines

2шт.

17

162246A1

O-RING

- hose, right-hand travel lines

1шт.

18

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Right-hand travel lines

4шт.

19

892-11010

LOCK WASHER,M10

RH travel lines M10

4шт.

20

170128A1

HOSE

- 1360 mm (53-9/16 inch) long, backward-travel line (control valve port "5B5" to swivel port "C"), right-hand

1шт.

21

153682A1

ELBOW

- 90 degree, right-hand travel lines, includes: Ref. 22

1шт.

22

154523A1

O-RING

- elbow, right-hand travel lines

1шт.

23

A12306

FLANGE

CLAMP - split flange, left-hand travel lines

2шт.

24

162246A1

O-RING

- hose, left-hand travel lines

1шт.

25

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Left-hand travel lines

4шт.

26

892-11010

LOCK WASHER,M10

LH travel lines M10

4шт.

27

170127A1

HOSE

- 1100 mm (43-5/16 inch) long, forward-travel line (control valve port "4A1" to swivel port "B"), left-hand

1шт.

28

163636A1

ELBOW

- 45 degree, left-hand travel lines, includes: Ref. 29

1шт.

29

154523A1

O-RING

- elbow, left-hand travel lines

1шт.

30

A12306

FLANGE

CLAMP - split flange, left-hand travel lines

2шт.

31

162246A1

O-RING

- hose, left-hand travel lines

1шт.

32

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Left-hand travel lines

4шт.

33

892-11010

LOCK WASHER,M10

LH travel lines M10

4шт.

34

170128A1

HOSE

- 1360 mm (53-9/16 inch) long, backward-travel line (control valve port "4B1" to swivel port "D"), left-hand

1шт.

35

153682A1

ELBOW

- 90 degree, left-hand travel lines, includes: Ref. 36

1шт.

36

154523A1

O-RING

- elbow, left-hand travel lines

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
