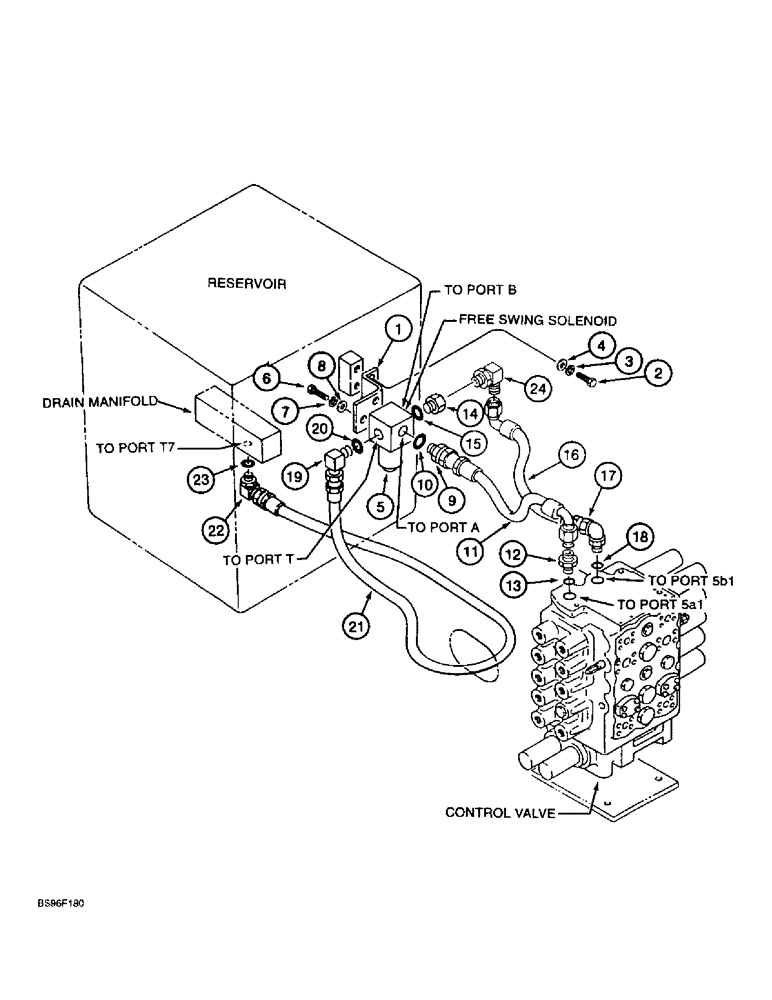

Запчасти Case 9060B (8-072) - FREE SWING CIRCUIT (08) - HYDRAULICS

1

163642A1

LARGE PLATE

BRACKET - mounting

1шт.

2

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

5

159205A1

VALVE

ASSEMBLY - solenoid, free swing, parts list on Figure 8-202

1шт.

6

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

152157A1

RETAINER

ADAPTER - straight, includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

170633A1

HOSE

- 370 mm (14-1/2 inch) long, metering line (from solenoid valve port "A" to control valve port "5a1")

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

14

162366A1

ADAPTER

- special, includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

16

170633A1

HOSE

- 370 mm (14-1/2 inch) long (from solenoid valve port "B" to control valve port "5b1")

1шт.

17

158784A1

ELBOW

- 90 degree, special, includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

151888A1

HOSE,63.00 mm ID x 1350.00 mm

(From solenoid valve port "T" to drain manifold port "T7") 63.00 mm ID x 1350.00 mm

1шт.

22

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, includes: Ref. 24

1шт.

24

163814A1

ELBOW

- 90 degree, special

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.
