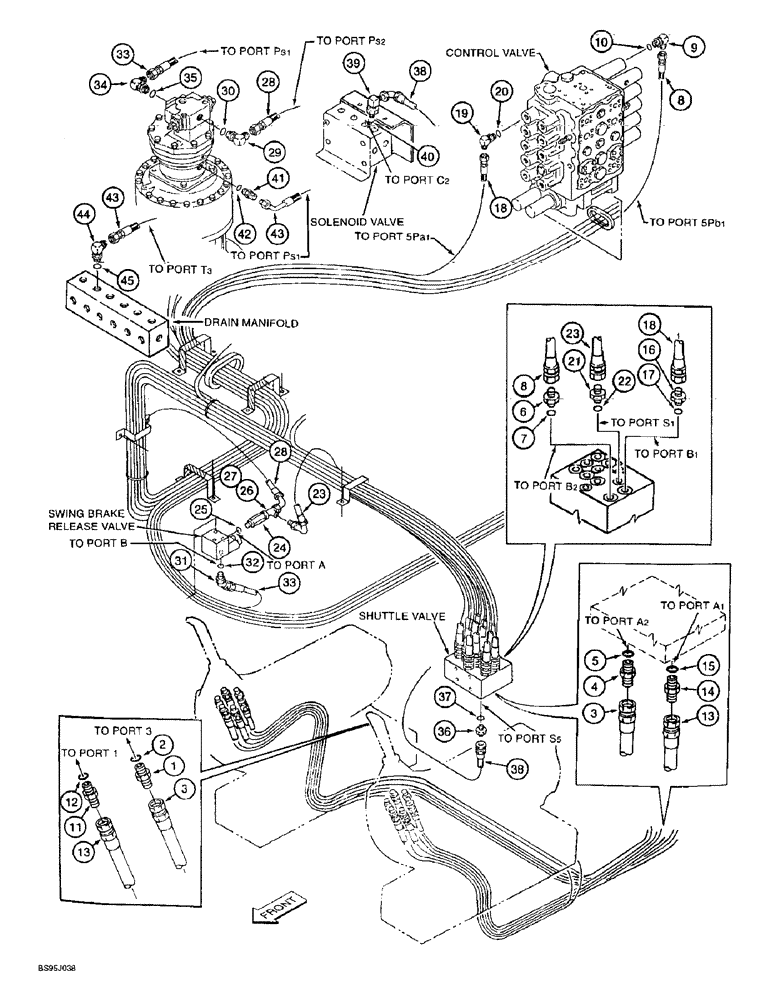

Запчасти Case 9060B (8-068) - SWING CONTROL LINES, SWING-LEFT LINES (08) - HYDRAULICS

1

152747A1

ADAPTER

- straight, includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159215A1

HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm

- Swing-left line (LH manual control valve port "3" to main shuttle valve port "A2") 9.50 mm ID x 1650.00 mm

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 7

1шт.

7

154475A1

O-RING

- adapter

1шт.

8

159062A1

HOSE ASSY.

HOSE - 3700 mm (145-11/16 inch) long, swing-left line (main shuttle valve port "B2" to main control valve port "5Pb1")

1шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, includes: Ref. 10

1шт.

10

154475A1

O-RING

- elbow

1шт.

11

152747A1

ADAPTER

- straight, swing-right lines, includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, swing-right lines

1шт.

13

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Swing-right line (LH manual control valve port "1" to main shuttle valve port "A1") 9.50 mm ID x 1750.00 mm

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, swing-right lines, includes: Ref. 15

1шт.

15

154475A1

O-RING

- adapter, swing-right lines

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, swing-right lines, includes: Ref. 17

1шт.

17

154475A1

O-RING

- adapter, swing-right lines

1шт.

18

152774A1

HOSE ASSY.

HOSE - 3100 mm (122 inch) long, swing-right line (main shuttle valve port "B1" to main control valve port "5Pa1")

1шт.

19

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, swing-right lines, includes: Ref. 20

1шт.

20

154475A1

O-RING

- elbow, swing-right lines

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, swing brake release lines, includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, swing brake release lines

1шт.

23

255423A1

HOSE ASSY.

HOSE - 700 mm (27-9/16 inch) long, swing brake release signal line (main shuttle valve port "S1" to tee at swing brake release valve port "A")

1шт.

24

162525A1

STUD

ADAPTER - straight, special, swing brake release lines, includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, swing brake release lines

1шт.

26

159497A1

TEE

- special, swing brake release lines, includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee (not shown), swing brake release lines

1шт.

28

161086A1

HYDRAULIC HOSE

- 2800 mm (110-1/4 inch) long, Swing brake release relief line (Tee at port "A" of swing brake release valve to swing motor port "Ps2"

1шт.

29

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, swing brake release lines, includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, swing brake release lines

1шт.

31

150933A1

ELBOW

- 45 degree, swing brake release lines, includes: Ref. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, swing brake release lines

1шт.

33

152289A1

HOSE,6.3mm ID x 2550mm L

- Swing brake release signal line (Swing brake release valve port "B" to swing motor port "Ps1" 63.00 mm ID x 2550.00 mm

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, swing brake release lines, includes: Ref. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, swing brake release lines

1шт.

36

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, swing shut-off line, includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, swing shut-off line

1шт.

38

164238A1

HOSE ASSY.

HOSE - 3800 mm (149-5/8 inch) long, swing shut-off signal line (from main shuttle valve port "S5" to main solenoid valve port "C2")

1шт.

39

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, swing shut-off line, includes: Ref. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, swing shut-off line

1шт.

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, swing motor drain line, includes: Ref. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, swing motor drain line

1шт.

43

160439A1

HOSE ASSY.

HOSE - 2400 mm (94-7/16 inch) long, swing motor drain line (from swing motor port "PS1" to drain manifold port "T3"))

1шт.

44

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, swing motor drain line, includes: Ref. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, swing motor drain line

1шт.
