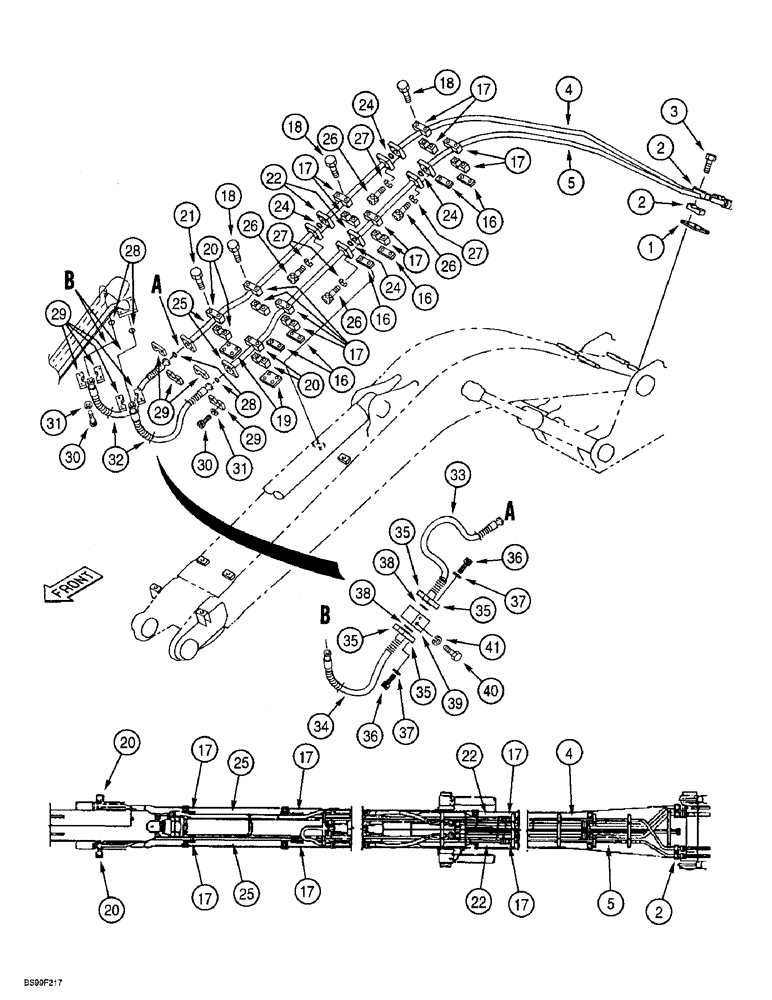

Запчасти Case 9060B (8-067A) - BUCKET CYLINDER LINES, P.I.N. EAC0601060 & AFTER (08) - HYDRAULICS

1

171806A1

PLATE

- support, tube clamp, four hole

2шт.

2

171807A1

CLAMP

- tube

4шт.

3

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

8шт.

4

171820A1

TUBE

- bucket, close line

1шт.

5

171814A1

TUBE

- bucket, open line

1шт.

16

171805A1

PLATE

- support, tube clamp, two hole

6шт.

17

171808A1

CLAMP

- tube

6шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

12шт.

19

171806A1

PLATE

- support, tube clamp, four hole, tube

2шт.

20

171808A1

CLAMP

- tube

4шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

8шт.

22

171815A1

TUBE

- bucket line

2шт.

24

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Tube -219, 90 Duro, 1.296" ID x .139" Thk

4шт.

25

171809A1

TUBE

- bucket line

2шт.

26

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

16шт.

27

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

16шт.

28

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Hose -219, 90 Duro, 1.296" ID x .139" Thk

4шт.

29

150561A1

FLANGE

- split

8шт.

30

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

16шт.

31

112312A1

LOCK WASHER

- lock, 12 mm

16шт.

32

171138A1

HOSE ASSY.

HOSE - 1800 mm (70-7/8 inch) long, 2.50 M (8 foot 3 inch) arm only

2шт.

32

171731A1

HOSE ASSY.

HOSE - 3.4 M (11 foot 2 inch) arm only

2шт.

32

171107A1

HOSE ASSY.

HOSE - 2400 mm (94-1/2 inch) long, 4.00 M (13 foot 1 inch) arm only

2шт.

33

171731A1

HOSE ASSY.

HOSE - at top of arm to manifold, models with 5.40 meters (17 foot 8 inch) only

2шт.

34

171821A1

HOSE ASSY.

HOSE - manifold to cylinder, models with 5.40 meters (17 foot 8 inch) arm only

2шт.

35

150561A1

FLANGE

- split, models with 5.40 meters (17 foot 8 inch) arm only

8шт.

36

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9, models with 5.40 meters (17 foot 8 inch) arm only

16шт.

37

112312A1

LOCK WASHER

- lock, 12 mm, models with 5.40 meters (17 foot 8 inch) arm only

16шт.

38

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Hose, models with 5.40 meters (17 foot 8 inch) arm only -219, 90 Duro, 1.296" ID x .139" Thk

4шт.

39

171822A1

MANIFOLD

- hydraulic, models with 5.40 meters (17 foot 8 inch) arm only

2шт.

40

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

Models with 5.40 meters (17 foot 8 inch) arm only Hex, M16 x 90, 8.8

4шт.

41

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm, Models with 5.40 meters (17 foot 8 inch) arm only

4шт.

42

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Not shown, Models with 5.40 meters (17 foot 8 inch) arm only M17.5 x 30 x 4, HT

4шт.
