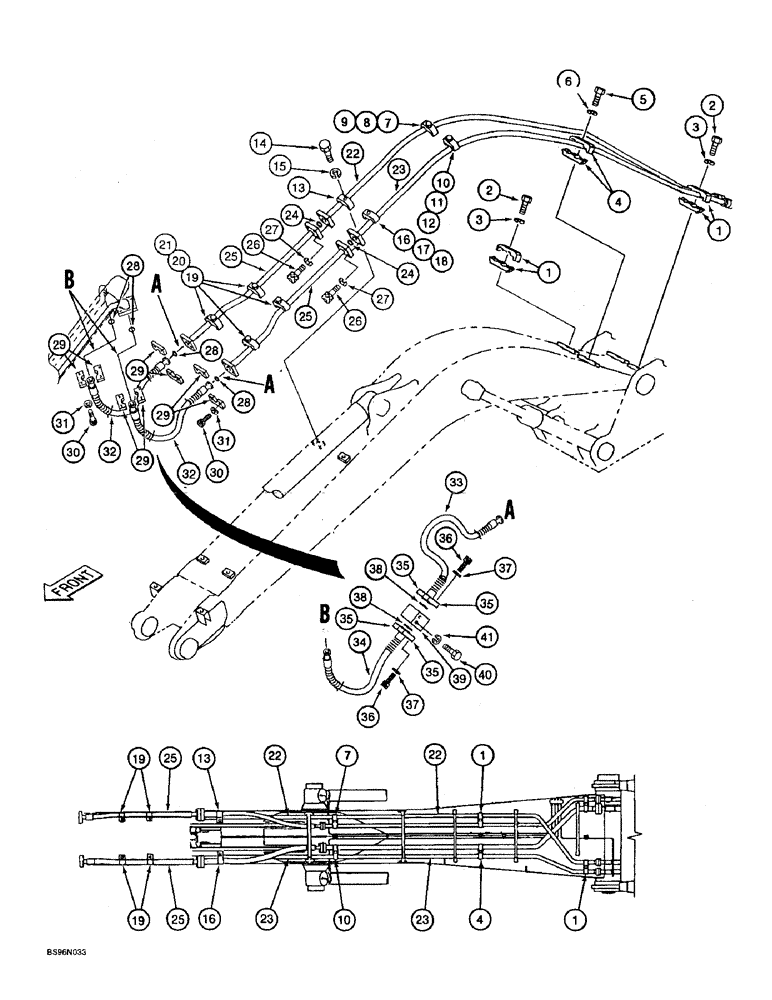

Запчасти Case 9060B (8-066) - BUCKET CYLINDER LINES, PRIOR TO P.I.N. EAC0601060 (08) - HYDRAULICS

1

151232A1

CLAMP

- tube

4шт.

2

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

2шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

4

151695A1

CLAMP

- tube

2шт.

5

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

7

162595A1

CLAMP

- tube

1шт.

8

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

10

151695A1

CLAMP

- tube

1шт.

11

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

12

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

13

150777A1

COLLAR

CLAMP - tube

1шт.

14

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

16

150777A1

COLLAR

CLAMP - tube

1шт.

17

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

18

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

19

150777A1

COLLAR

CLAMP - tube

4шт.

20

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

21

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

22

171097A1

TUBE

- bucket-close line

1шт.

23

171098A1

TUBE

- bucket-open line

1шт.

24

155211A1

O-RING

- tube

2шт.

25

171096A1

TUBE,34 mm OD

- bucket line

2шт.

26

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

8шт.

27

112312A1

LOCK WASHER

- lock, 12 mm

8шт.

28

162246A1

O-RING

- hose

4шт.

29

150561A1

FLANGE

- split

8шт.

30

863-12045

HEX SOC SCREW,M12 x 45mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 45 mm, class 12.9

16шт.

31

112312A1

LOCK WASHER

- lock, 12 mm

16шт.

32

171138A1

HOSE ASSY.

HOSE - 1800 mm (70-7/8 inch) long, 2.50 M (8 foot 3 inch) arm only

2шт.

32

171139A1

HOSE ASSY.

HOSE - 1900 mm (74-13/16 inch) long, 3.4 M (11 foot 2 inch) arm only

2шт.

32

171107A1

HOSE ASSY.

HOSE - 2400 mm (94-1/2 inch) long, 4.00 M (13 foot 1 inch) arm only

2шт.

33

171107A1

HOSE ASSY.

HOSE - 2400 mm (94-1/2 inch) long, at top of arm, models with 5.40 meters (17 foot 8 inch) only

2шт.

34

171140A1

HOSE ASSY.

HOSE - 1900 mm (74-7/8 inch) long, models with 5.40 meters (17 foot 8 inch) arm only

2шт.

35

150561A1

FLANGE

- split, models with 5.40 meters (17 foot 8 inch) arm only

8шт.

36

863-12045

HEX SOC SCREW,M12 x 45mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 45 mm, class 12.9, models with 5.40 meters (17 foot 8 inch) arm only

16шт.

37

112312A1

LOCK WASHER

- lock, 12 mm, models with 5.40 meters (17 foot 8 inch) arm only

16шт.

38

162246A1

O-RING

- hose, models with 5.40 meters (17 foot 8 inch) arm only

4шт.

39

171142A1

MANIFOLD

- hydraulic, models with 5.40 meters (17 foot 8 inch) arm only

2шт.

40

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex, 12 - 1.75 x 90 mm, class 10.9, models with 5.40 meters (17 foot 8 inch) arm only

8шт.

41

150811A1

WASHER

- flat, special, 12 mm, models with 5.40 meters (17 foot 8 inch) arm only

8шт.
