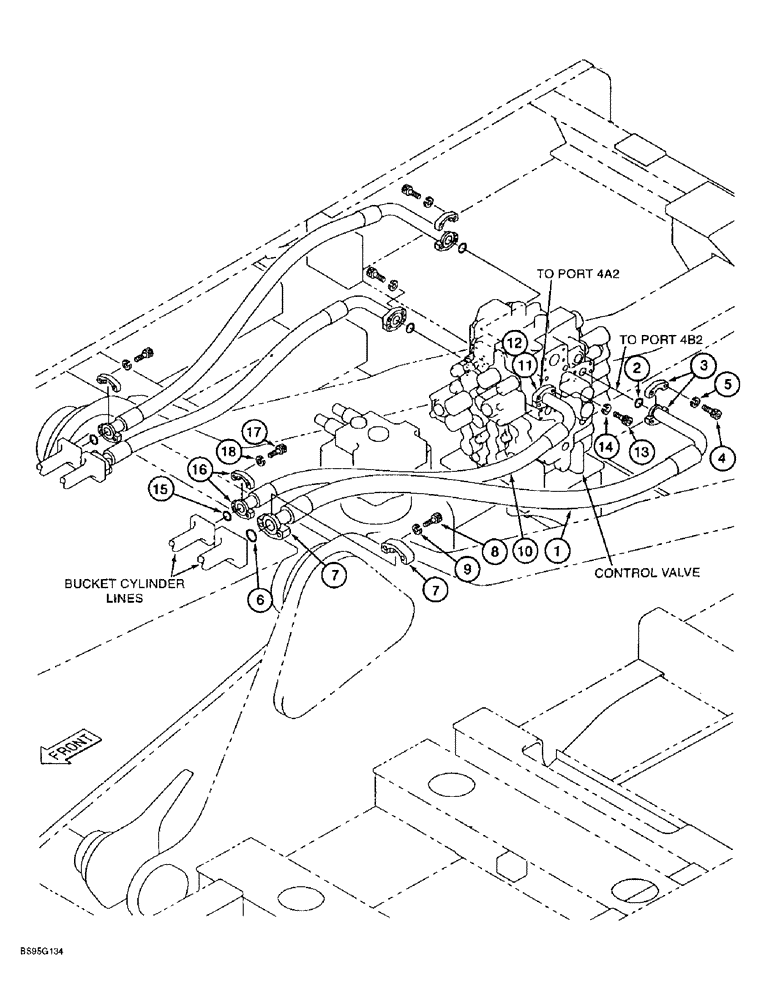

Запчасти Case 9060B (8-064) - BUCKET OPEN AND CLOSE CYLINDER SUPPLY LINES (08) - HYDRAULICS

1

170810A1

HOSE ASSY.

HOSE - 1630 mm (64-1/4 inch) long, bucket-open line (control valve port "4B2" to bucket cylinder line)

1шт.

2

155211A1

O-RING

- hose

1шт.

3

A12306

FLANGE

CLAMP - split flange

2шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

155211A1

O-RING

- hose

1шт.

7

150561A1

FLANGE

- split

2шт.

8

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

4шт.

9

112312A1

LOCK WASHER

- lock, 12 mm

4шт.

10

170811A1

HOSE ASSY.

HOSE - 1500 mm (59 inch) long, bucket-close line (control valve port "4A2" to bucket cylinder line)

1шт.

11

155211A1

O-RING

- hose, bucket-close lines

1шт.

12

A12306

FLANGE

CLAMP - split flange, bucket-close lines

2шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Bucket-close lines

4шт.

14

892-11010

LOCK WASHER,M10

Bucket-close lines M10

4шт.

15

155211A1

O-RING

- hose, bucket-close lines

1шт.

16

150561A1

FLANGE

- split, bucket-close lines

2шт.

17

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9, bucket-close lines

4шт.

18

112312A1

LOCK WASHER

- lock, 12 mm, bucket-close lines

4шт.
