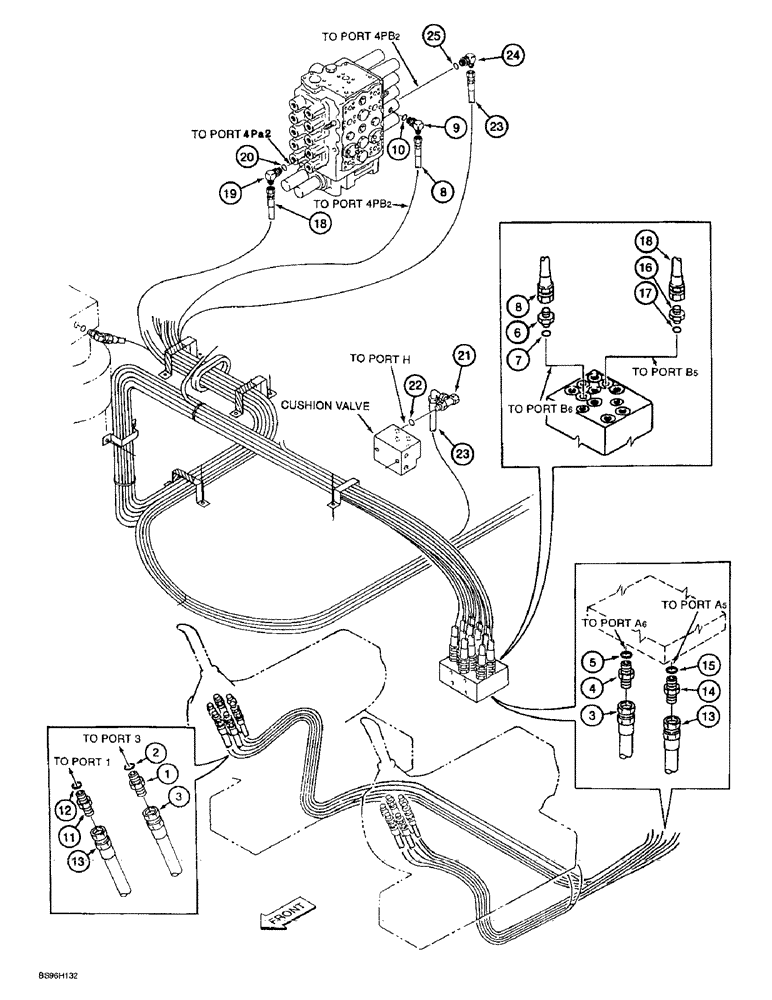

Запчасти Case 9060B (8-062) - BUCKET OPEN AND CLOSE CONTROL LINES (08) - HYDRAULICS

1

152747A1

ADAPTER

- straight, includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159211A1

HYDRAULIC HOSE

HOSE - 2000 mm (78-3/4 inch) long, bucket-open line (right-hand manual control valve port "3" to main shuttle valve port "A6")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 7

1шт.

7

154475A1

O-RING

- adapter

1шт.

8

159062A1

HOSE ASSY.

HOSE - 3700 mm (145-11/16 inch) long, bucket-open line (main shuttle valve port "B6" to main control valve port "4Pb2")

1шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, includes: Ref. 10

1шт.

10

154475A1

O-RING

- elbow

1шт.

11

152747A1

ADAPTER

- straight, bucket-close lines, includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, bucket-close lines

1шт.

13

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- Bucket-close line (RH manual control valve port "1" to main shuttle valve port "A5") 9.50 mm ID x 2100.00 mm

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, bucket-close lines, includes: Ref. 15

1шт.

15

154475A1

O-RING

- adapter, bucket-close lines

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, bucket-close lines, includes: Ref. 17

1шт.

17

154475A1

O-RING

- adapter, bucket-close lines

1шт.

18

157969A1

HOSE

- 2600 mm (102-3/8 inch) long, bucket-close line (main shuttle valve port "B5" to main control valve port "4Pa2")

1шт.

19

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, bucket-close lines, includes: Ref. 20

1шт.

20

154475A1

O-RING

- adapter, bucket-close lines

1шт.

21

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

- special, bucket-close lines, includes: Ref. 22

1шт.

22

154475A1

O-RING

- tee, bucket-close lines

1шт.

23

163759A1

HYDRAULIC HOSE

2450 mm, bucket close line (from tee in cushion valve port "H" to main control valve port "4Pb2"1

1шт.

24

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, bucket-close lines, includes: Ref. 25

1шт.

25

154475A1

O-RING

- elbow, bucket-close lines

1шт.
