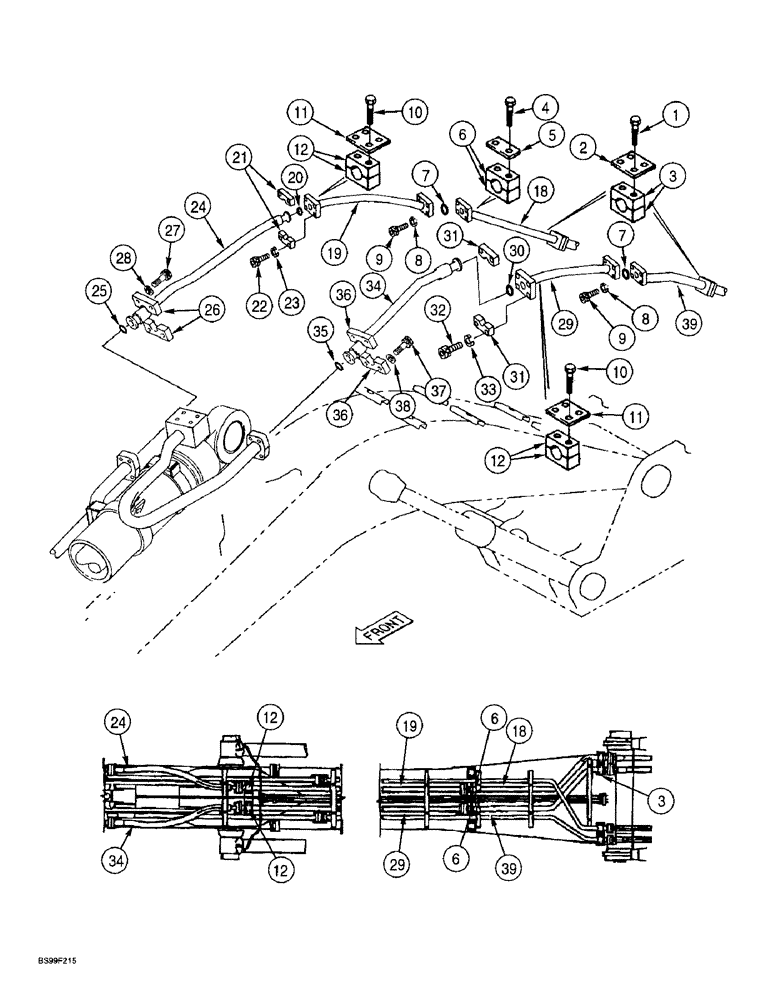

Запчасти Case 9060B (8-061A) - ARM CYLINDER SUPPLY LINES, P.I.N. EAC0601060 AND AFTER (08) - HYDRAULICS

1

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

8шт.

2

171806A1

PLATE

- support, tube clamp, four hole

2шт.

3

171808A1

CLAMP

- tube

4шт.

4

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch, Tube

4шт.

5

171805A1

PLATE

- support, tube clamp, two hole

2шт.

6

171807A1

CLAMP

- tube

2шт.

7

164450A1

O-RING

- tube

2шт.

8

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

9

827-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

Hex, M14 x 3 x 55, 10.9

8шт.

10

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

8шт.

11

171806A1

PLATE

- support, tube clamp, four hole

2шт.

12

171807A1

CLAMP

- tube

4шт.

18

171813A1

TUBE

- arm-out (arm cylinder supply line at main frame)

1шт.

19

171812A1

TUBE

- arm-out (arm cylinder supply line to arm-out hose)

1шт.

20

164450A1

O-RING

- hose, arm-out lines

1шт.

21

150124A1

FLANGE

- split, arm-out lines

2шт.

22

861-14055

HEX SOC SCREW,M14 x 55mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9, Arm-out lines

4шт.

23

150336A1

SPRING WASHER

WASHER - lock, 14 mm, arm-out lines

4шт.

24

171105A1

HOSE ASSY.

HOSE - 1250 mm (49-1/4 inch) long, arm-out (arm-out tube to arm cylinder)

1шт.

25

164450A1

O-RING

- hose, arm-out lines

1шт.

26

150124A1

FLANGE

- split, arm-out lines

2шт.

27

861-14055

HEX SOC SCREW,M14 x 55mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9, Arm-out lines

4шт.

28

150336A1

SPRING WASHER

WASHER - lock, 14 mm, arm-out lines

4шт.

29

171812A1

TUBE

- arm-in (arm cylinder supply line to arm-in hose)

1шт.

30

164450A1

O-RING

- hose, arm-in lines

1шт.

31

150124A1

FLANGE

- split, arm-in lines

2шт.

32

861-14055

HEX SOC SCREW,M14 x 55mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9, Arm-in lines

4шт.

33

150336A1

SPRING WASHER

WASHER - lock, 14 mm, arm-in lines

4шт.

34

171105A1

HOSE ASSY.

HOSE - 1250 mm (49-1/4 inch) long, arm-in (arm-in tube to arm cylinder)

1шт.

35

164450A1

O-RING

- hose, arm-in lines

1шт.

36

150124A1

FLANGE

- split, arm-in lines

2шт.

37

861-14055

HEX SOC SCREW,M14 x 55mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9, Arm-in lines

4шт.

38

150336A1

SPRING WASHER

WASHER - lock, 14 mm, arm-in lines

4шт.

39

171811A1

TUBE

- arm-in (arm cylinder supply line at main frame)

1шт.
