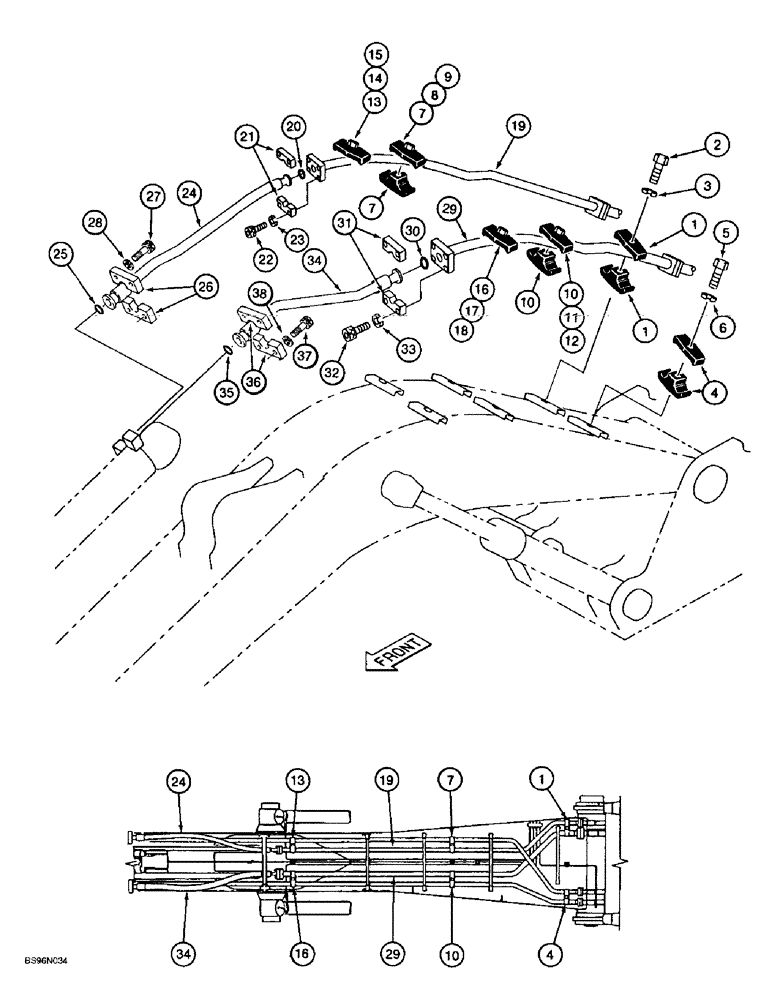

Запчасти Case 9060B (8-060) - ARM CYLINDER SUPPLY LINES, PRIOR TO P.I.N. EAC0601060, ARM-OUT LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
171093A1
CLAMP
- tube
2шт.
2
814-16090
BOLT,Hex, M16 x 2 x 90mm, Cl 8.8
1шт.
3
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
1шт.
4
151232A1
CLAMP
- tube
2шт.
5
614-16080
BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd
1шт.
6
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
1шт.
7
151232A1
CLAMP
- tube
2шт.
8
614-16080
BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd
1шт.
9
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
1шт.
10
151695A1
CLAMP
- tube
2шт.
11
814-16090
BOLT,Hex, M16 x 2 x 90mm, Cl 8.8
1шт.
12
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
1шт.
13
162595A1
CLAMP
- tube
1шт.
14
828-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
1шт.
15
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
1шт.
16
151695A1
CLAMP
- tube
1шт.
17
614-16080
BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd
1шт.
18
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
1шт.
19
171094A1
TUBE
- arm-out (arm cylinder supply line to arm-out hose)
1шт.
20
162246A1
O-RING
- hose, arm-out lines
1шт.
21
150561A1
FLANGE
- split, arm-out lines
2шт.
22
862-12050
HEX SOC SCREW,M12 x 50mm, Cl 12.9
BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9, arm-out lines
4шт.
23
112312A1
LOCK WASHER
- lock, 12 mm, arm-out lines
4шт.
24
171106A1
HOSE ASSY.
HOSE - 1250 mm (49-1/4 inch) long, arm-out (arm-out tube to arm cylinder)
1шт.
25
153626A1
O-RING
- hose, arm-out lines
1шт.
26
150124A1
FLANGE
- split, arm-out lines
2шт.
27
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9, Arm-out lines
4шт.
28
150336A1
SPRING WASHER
WASHER - lock, 14 mm, arm-out lines
4шт.
29
171095A1
TUBE
- arm-in (arm cylinder supply line to arm-in hose)
1шт.
30
153626A1
O-RING
- hose, arm-in lines
1шт.
31
150124A1
FLANGE
- split, arm-in lines
2шт.
32
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9, Arm-in lines
4шт.
33
150336A1
SPRING WASHER
WASHER - lock, 14 mm, arm-in lines
4шт.
34
171105A1
HOSE ASSY.
HOSE - 1250 mm (49-1/4 inch) long, arm-in (arm-in tube to arm cylinder)
1шт.
35
153626A1
O-RING
- hose, arm-in lines
1шт.
36
150124A1
FLANGE
- split, arm-in lines
2шт.
37
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9, Arm-in lines
4шт.
38
150336A1
SPRING WASHER
WASHER - lock, 14 mm, arm-in lines
4шт.
Выбрано товаров: 38
