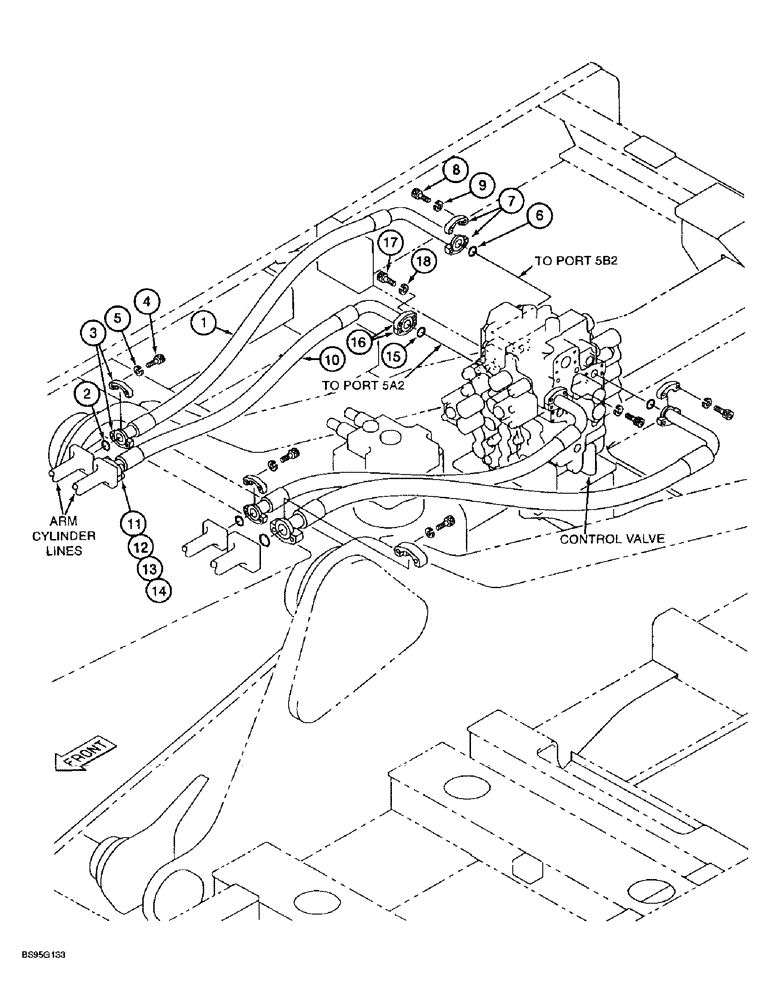

Запчасти Case 9060B (8-058) - ARM CYLINDER SUPPLY LINES, PRIOR TO P.I.N. EAC0601060, ARM-OUT LINES (08) - HYDRAULICS

1

171104A1

HOSE ASSY.

HOSE - 1650 mm (65 inch) long, arm-out line (main control valve port "5B2" to arm cylinder line)

1шт.

2

155211A1

O-RING

- hose

1шт.

3

150561A1

FLANGE

- split

2шт.

4

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

4шт.

5

112312A1

LOCK WASHER

- lock, 12 mm

4шт.

6

153626A1

O-RING

- hose

1шт.

7

150124A1

FLANGE

- split

2шт.

8

827-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

Hex, M14 x 3 x 55, 10.9

4шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

10

171103A1

HOSE ASSY.

HOSE - 1450 mm (57-1/8 inch) long, arm-out line (main control valve port "5A2" to arm cylinder line)

1шт.

11

153626A1

O-RING

- hose, arm-in lines

1шт.

12

150124A1

FLANGE

- split, arm-in lines

2шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9, arm-in lines

4шт.

14

150336A1

SPRING WASHER

WASHER - lock, 14 mm, arm-in lines

4шт.

15

153626A1

O-RING

- hose, arm-in lines

1шт.

16

150124A1

FLANGE

- split, arm-in lines

2шт.

17

827-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

arm-in lines Hex, M14 x 3 x 55, 10.9

4шт.

18

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm, arm-in lines

4шт.
