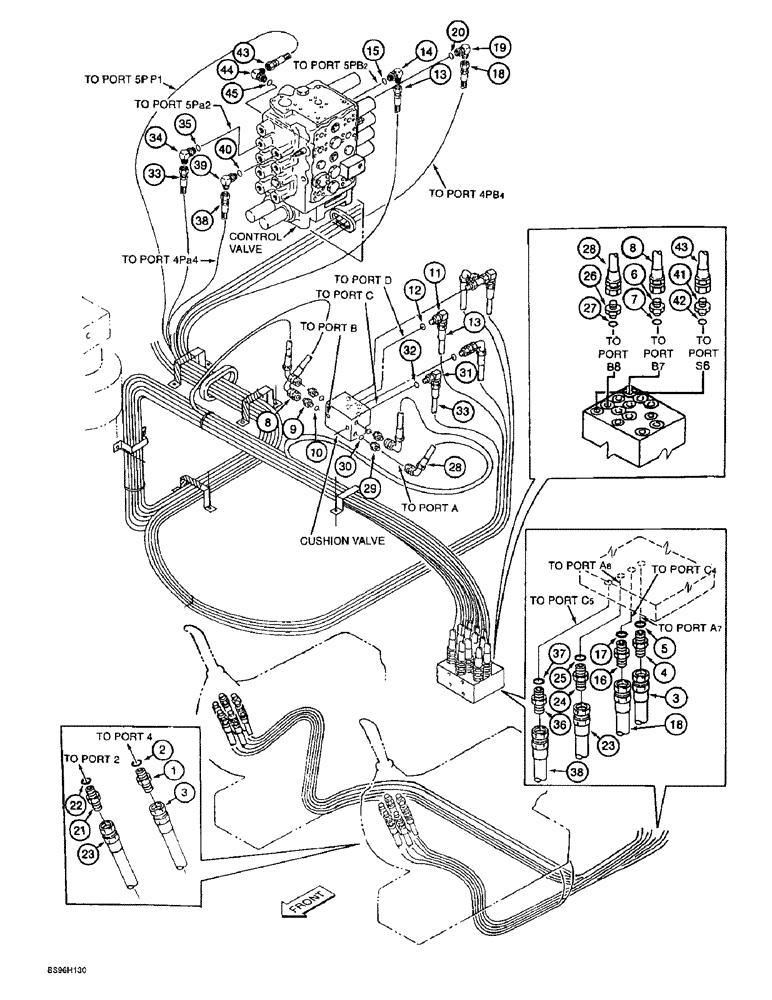

Запчасти Case 9060B (8-054) - ARM CONTROL LINES, ARM-OUT LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
3
159217A1
HYDRAULIC HOSE
HOSE - 1850 mm (72-13/16 inch) long, arm-out line (left-hand manual control valve port "4" to main shuttle valve port "A7")
1шт.
4
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, includes: Ref. 5
1шт.
5
154475A1
O-RING
- adapter
1шт.
6
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, includes: Ref. 7
1шт.
7
154475A1
O-RING
- adapter
1шт.
8
159223A1
HOSE ASSY.
HOSE - 1100 mm (44-3/16 inch) long, arm-out line (main shuttle valve port "B7" to cushion valve port "B")
1шт.
9
165000A1
PLUG
ADAPTER - straight, includes: Ref. 10
1шт.
10
154486A1
O-RING
- adapter
1шт.
11
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, includes: Ref. 12
1шт.
12
154475A1
O-RING
- elbow
1шт.
13
164230A1
HOSE ASSY.
HOSE - 2750 mm (108-1/4 inch) long, arm-out line, (cushion valve port "D" to main control valve port "5Pb2")
1шт.
14
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, includes: Ref. 15
1шт.
15
154475A1
O-RING
- elbow
1шт.
16
152747A1
ADAPTER
- straight, includes: Ref. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
18
152774A1
HOSE ASSY.
HOSE - 3100 mm (122 inch) long, arm-out signal line (main shuttle valve port "C4" to control valve port "4Pb4")
1шт.
19
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, includes: Ref. 20
1шт.
20
154475A1
O-RING
- adapter
1шт.
21
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, arm-in lines, includes: Ref. 22
1шт.
22
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, arm-in lines
1шт.
23
159216A1
HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm
- Arm-in line (LH manual control valve port "2" to main shuttle valve port "A8") 9.50 mm ID x 1750.00 mm
1шт.
24
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, arm-in lines, includes: Ref. 25
1шт.
25
154475A1
O-RING
- adapter, arm-in lines
1шт.
26
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, arm-in lines, includes: Ref. 27
1шт.
27
154475A1
O-RING
- adapter, arm-in lines
1шт.
28
159224A1
HOSE ASSY.
HOSE - 900 mm (35-7/16 inch) long, arm-in line (main shuttle valve port "B8" to cushion valve port "A")
1шт.
29
165000A1
PLUG
ADAPTER - straight, arm-in lines
1шт.
30
154486A1
O-RING
- adapter, arm-in lines
1шт.
31
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, arm-in lines, includes: Ref. 32
1шт.
32
154475A1
O-RING
- elbow, arm-in lines
1шт.
33
152764A1
HOSE ASSY.
HOSE - 2000 mm (78-3/4 inch) long, arm-in line (cushion valve port "C" to main control valve port "5Pa2")
1шт.
34
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, arm-in lines, includes: Ref. 35
1шт.
35
154475A1
O-RING
- adapter, arm-in lines
1шт.
36
152747A1
ADAPTER
- straight, arm-in lines, includes: Ref. 37
1шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, arm-in lines
1шт.
38
152764A1
HOSE ASSY.
HOSE - 2000 mm (78-3/4 inch) long, arm-in signal line (main shuttle valve port "C5" to control valve port "4Pa4")
1шт.
39
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, arm-in lines, includes: Ref. 40
1шт.
40
154475A1
O-RING
- elbow, arm-in lines
1шт.
41
152747A1
ADAPTER
- straight, arm holding signal line
1шт.
42
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, arm holding signal line
1шт.
43
159062A1
HOSE ASSY.
HOSE - 3700 mm (145-11/16 inch) long, arm holding signal line (main shuttle valve port "S6" to main control valve port "5P.P1")
1шт.
44
153559A1
ELBOW
- 90 degree, arm holding signal line, includes: Ref. 45
1шт.
45
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow, arm holding signal line
1шт.
Выбрано товаров: 45
