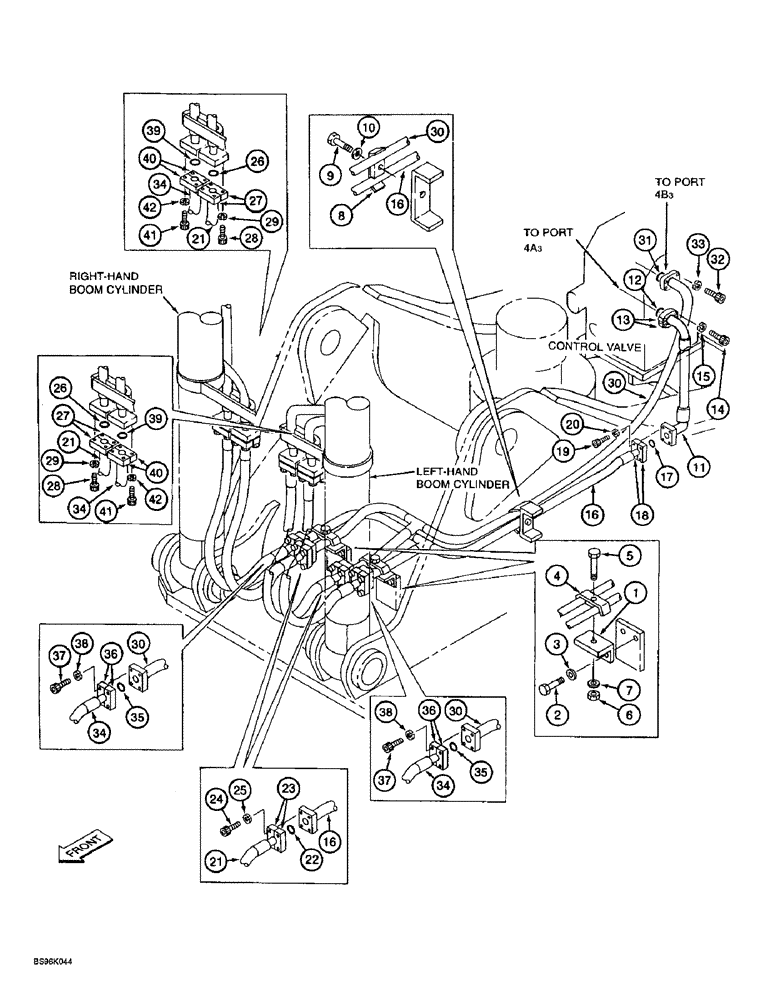

Запчасти Case 9060B (8-052) - BOOM CYLINDER LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
171127A1
SUPPORT
BRACKET - mounting, order 171606A1 bracket, another 171091A1 clamp Ref. 4 (add under tubes), and 827-12110 bolt Ref. 5
2шт.
2
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 30 mm, class 10.9
4шт.
5
827-12090
BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9
- hex, 12 - 1.75 x 90 mm, class 10.9, used with one clamp
2шт.
5
827-12110
BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9
hex, 12 - 1.75 x 110 mm, 10.9, Used with two clamps
2шт.
11
171148A1
HOSE ASSY.
HOSE - 435 mm (17-1/8 inch) long, boom-up circuit (from control valve port "4B3" to boom-up tube), lines
1шт.
14
827-14055
BOLT,Hex, M14 x 2 x 55mm, Cl 10.9
boom-up lines Hex, M14 x 3 x 55, 10.9
4шт.
15
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER - lock, 14 mm, boom-up lines
4шт.
16
171100A1
TUBE
- boom-up (from boom-up circuit hose to boom cylinder hoses), lines
1шт.
19
827-14055
BOLT,Hex, M14 x 2 x 55mm, Cl 10.9
boom-up lines Hex, M14 x 3 x 55, 10.9
4шт.
20
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER - lock, 14 mm, boom-up lines
4шт.
21
171092A1
HOSE ASSY.
HOSE - 1080 mm (42-1/2 inch) long, boom-up tube to boom cylinder, lines
2шт.
24
862-12050
HEX SOC SCREW,M12 x 50mm, Cl 12.9
BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9, boom-up lines
8шт.
28
862-12050
HEX SOC SCREW,M12 x 50mm, Cl 12.9
BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9, boom-up lines
8шт.
30
171099A1
TUBE
- boom-down (from control valve port "4A3" to boom-down cylinder hoses), lines
1шт.
32
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Boom-down lines
4шт.
34
171092A1
HOSE ASSY.
HOSE - 1080 mm (42-1/2 inch) long, boom-down cylinder (from boom-down tube to boom cylinders), lines
2шт.
37
862-12050
HEX SOC SCREW,M12 x 50mm, Cl 12.9
BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9, boom-down lines
8шт.
41
862-12050
HEX SOC SCREW,M12 x 50mm, Cl 12.9
BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9, boom-down lines
8шт.
