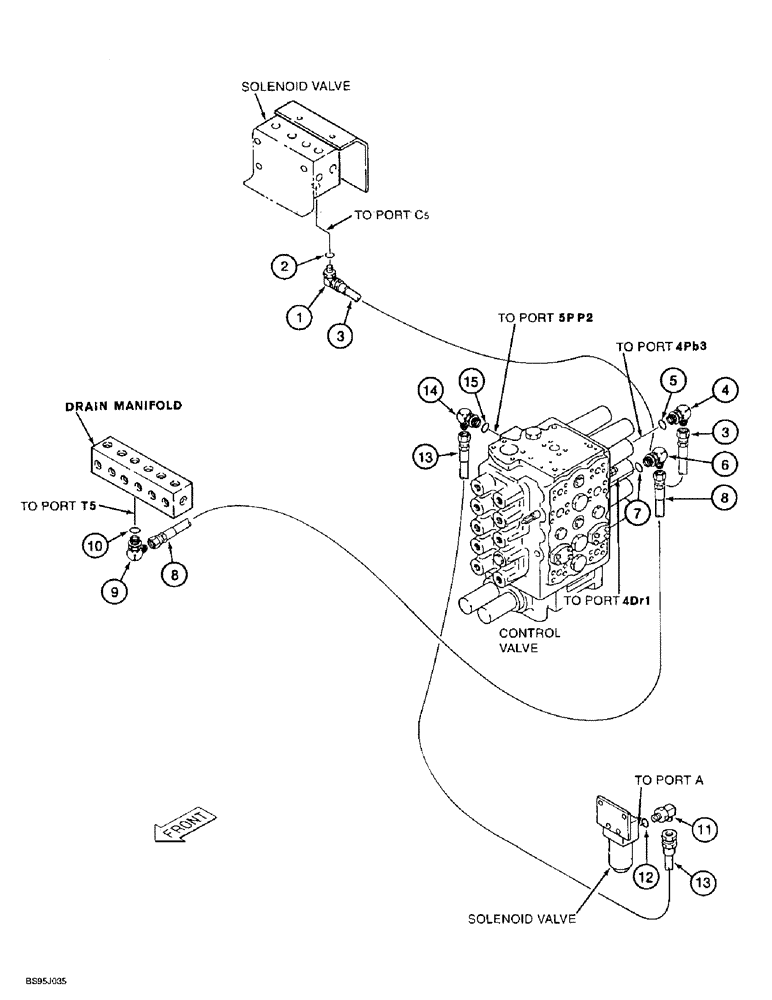

Запчасти Case 9060B (8-050) - BOOM CONTROL LINES, PILOT LINES, MISCELLANEOUS BOOM PILOT LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

152604A1

HOSE,63.00 mm ID x 1600.00 mm

- Boom stroke regulation signal line (Main solenoid valve port "C5" to main control valve port "4Pb3" ) 63.00 mm ID x 1600.00 mm

1шт.

4

156554A1

ELBOW

- 90 degree, special, includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, includes: Ref. 7

1шт.

7

154475A1

O-RING

- elbow

1шт.

8

152761A1

HOSE ASSY.

HOSE - 1450 mm (57-1/16 inch) long, boom holding valve drain line (main control valve port "4DR1" to drain manifold port "T5")

1шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, includes: Ref. 10

1шт.

10

154475A1

O-RING

- elbow

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

159007A1

HOSE

- 2300 mm (90-9/16 inch) long, dual flow signal line (single-spool solenoid valve port "A" to main control valve port "5PP2")

1шт.

14

156554A1

ELBOW

- 90 degree, special, includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
