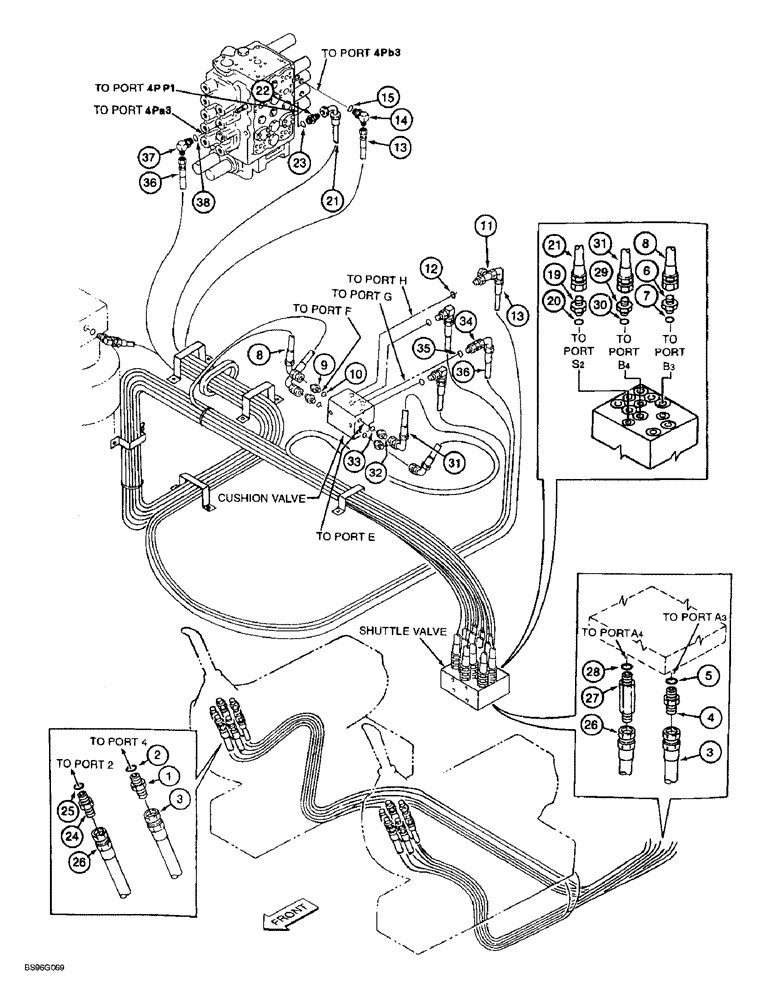

Запчасти Case 9060B (8-044) - BOOM CONTROL LINES, UP, DOWN & SIGNAL LINES, BOOM-UP LINES (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159211A1

HYDRAULIC HOSE

HOSE - 2000 mm (78-3/4 inch) long, boom-up control line, right-hand console to shuttle valve (right-hand manual control valve port "4" to main shuttle valve port "A3")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 7

1шт.

7

154475A1

O-RING

- adapter

1шт.

8

159223A1

HOSE ASSY.

HOSE - 1100 mm (44-3/16 inch) long, boom-up control line (main shuttle valve port "B3" to cushion valve port "F")

1шт.

9

165000A1

PLUG

ADAPTER - straight

1шт.

10

154486A1

O-RING

- adapter

1шт.

11

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

- special, includes: Ref. 12

1шт.

12

154475A1

O-RING

- tee

1шт.

13

161487A1

HOSE ASSY.

HOSE - 2800 mm (110-1/4 inch) long, boom-up control line (cushion valve port "H" to main control valve port "4Pb3")

1шт.

14

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, includes: Ref. 15

1шт.

15

154475A1

O-RING

- elbow

1шт.

19

152747A1

ADAPTER

- straight, includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

170680A1

HOSE ASSY.

HOSE - 4050 mm (159-1/2 inch) long, boom-hold signal line (main shuttle valve port "S2" to main control valve port "4P.P1")

1шт.

22

152747A1

ADAPTER

- straight, includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

24

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

26

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- Boom-down control line (RH manual control valve port "2" to main shuttle valve port "A4") 9.50 mm ID x 2100.00 mm

1шт.

27

163421A1

STUD

ADAPTER - special, includes: Ref. 28

1шт.

28

154475A1

O-RING

- adapter

1шт.

29

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 30

1шт.

30

154475A1

O-RING

- adapter

1шт.

31

159224A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, boom-down control line (main shuttle valve port "B4" to cushion valve port "E")

1шт.

32

165000A1

PLUG

ADAPTER - straight

1шт.

33

154486A1

O-RING

- adapter

1шт.

34

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, includes: Ref. 35

1шт.

35

154475A1

O-RING

- adapter

1шт.

36

162524A1

HOSE

- 1500 mm (59 inch) long, boom-down control line (cushion valve port "G" to main control valve port "4Pa3")

1шт.

37

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, includes: Ref. 38

1шт.

38

154475A1

O-RING

- elbow

1шт.
