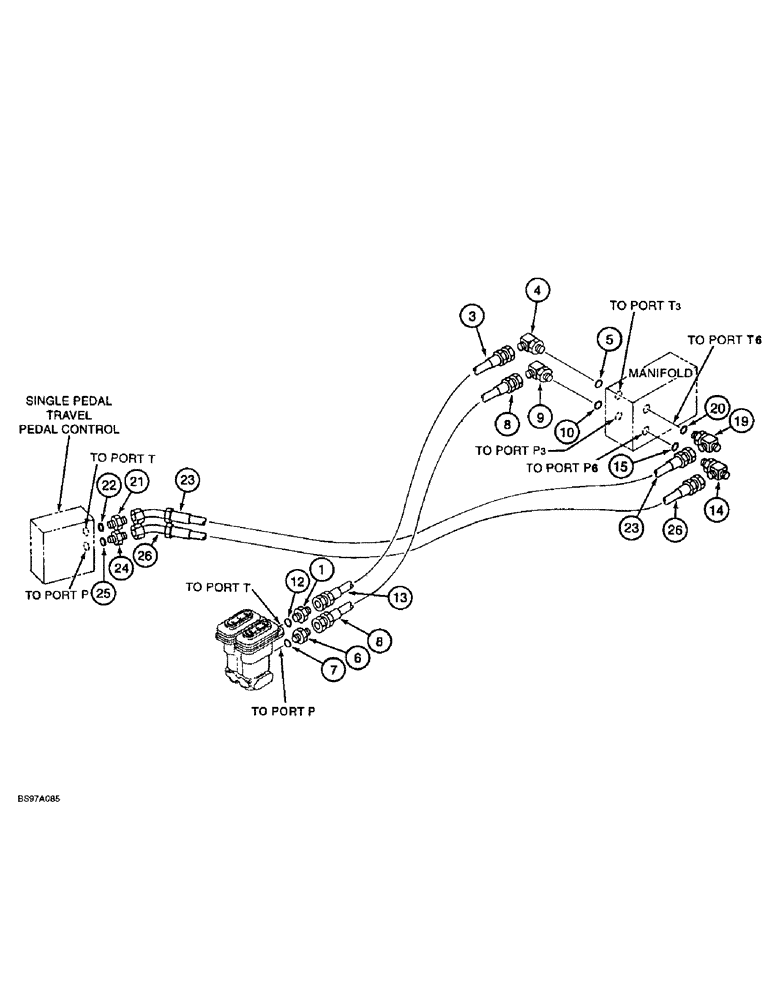

Запчасти Case 9060B (8-042) - PEDAL CONTROL VALVE PRESSURE AND RETURN LINES, P.I.N. EAC0601027 AND AFTER (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

152514A1

HOSE,63mm ID x 1000mm L

RH pedal-to-manifold pressure line (Pedal control valve port "T" to manifold port "T3") 63.00 mm ID x 1000.00 mm

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

161841A1

HYD CONNECTOR

ADAPTER - straight, special, includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

152514A1

HOSE,63mm ID x 1000mm L

RH pedal-to-manifold return line (Pedal control valve port "P" to manifold port "P3") 63.00 mm ID x 1000.00 mm

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, single pedal travel pedal-to-manifold pressure line (pedal control valve port "T" to tee in manifold port "T6")

1шт.

24

161841A1

HYD CONNECTOR

ADAPTER - straight, special, includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

26

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, single pedal travel pedal-to-manifold return line (pedal control valve port "P" to tee in manifold port "P6")

1шт.
