(8-032) - CONTROL SIGNAL LINES, PUMP REGULATOR LINES

Запчасти Case 9060B (8-032) - CONTROL SIGNAL LINES, PUMP REGULATOR LINES (08) - HYDRAULICS

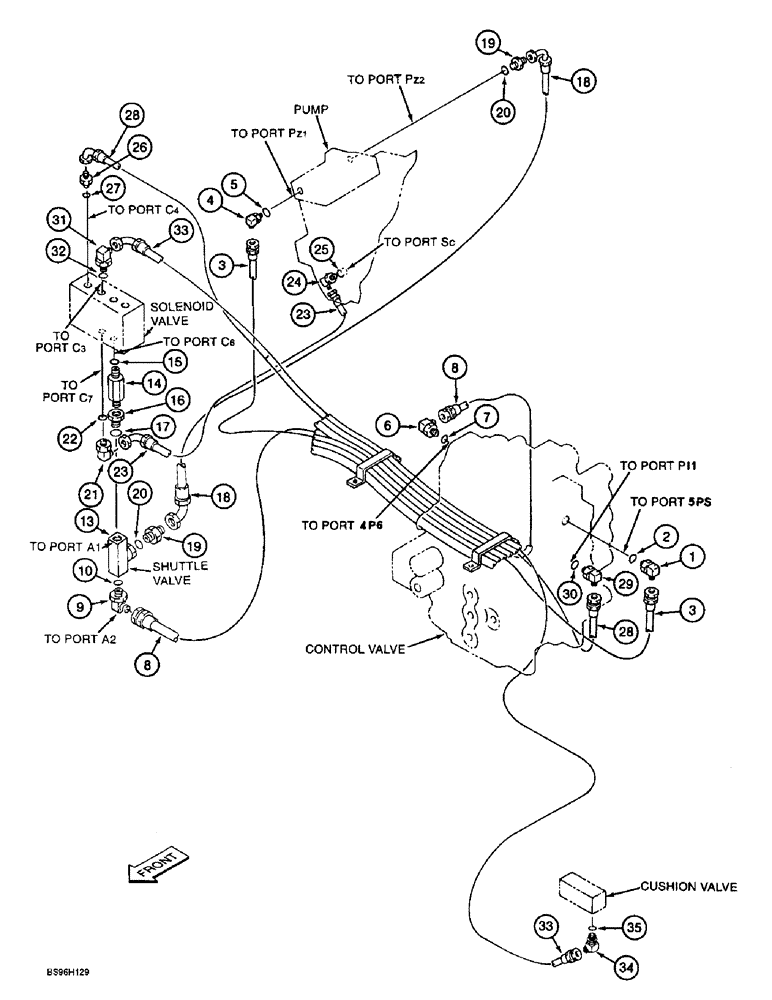

Схема запчастей Case 9060B - (8-032) - CONTROL SIGNAL LINES, PUMP REGULATOR LINES (08) - HYDRAULICS
28
19
23
3
9
27
25
15
18
7
21
33
18
33
20
17
10
1
32
14
6
8
3
22
23
30
13
20
26
19
2
35
31
4
5
34
8
16
29
28
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

164232A1

HOSE ASSY.

HOSE - 3150 mm (124 inch) long, pump regulator signal line (main control valve port "5Ps" to pump port "Pz1")

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

159004A1

HOSE

- 2150 mm (84-5/8 inch) long, pump regulator signal line (main control valve port "4P6" to shuttle valve port "A2")

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

14

162554A1

FITTING

ADAPTER - special, if used, includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, if used

1шт.

16

162654A1

HYD CONNECTOR

ADAPTER - straight, if used, includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

164236A1

HOSE ASSY.

HOSE - 1000 mm (39-3/8 inch) long, pump regulator signal line (shuttle valve port "B" to pump port "Pz2")

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, includes: Ref. 20

2шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

164227A1

HOSE ASSY.

HOSE - 650 mm (25-5/8 inch) long, maximum flow control signal (main solenoid valve port "C7" to pump port "Sc")

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, two-stage relief lines, includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, two-stage relief lines

1шт.

28

162555A1

HOSE

- 1800 mm (70-7/8 inch) long, two-stage relief line (main solenoid valve port "C4" to main control valve port "Pl1")

1шт.

29

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, two-stage relief lines, includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, two-stage relief lines

1шт.

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, cushion valve control lines, includes: Ref. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, cushion valve control lines

1шт.

33

159711A1

HOSE,3250.00 mm

main solenoid valve port "C3" to cushion valve port "S", models without counterweight removal, control lines 3250.00 mm

1шт.

33

162193A1

HOSE ASSY.

HOSE - 2900 mm (114-3/16 inch) long, main solenoid valve port "C3" to cushion valve port "S", models with counterweight removal, control lines

1шт.

34

150933A1

ELBOW

- 45 degree, cushion valve control lines, includes: Ref. 35

1шт.

35

154475A1

O-RING

- elbow, cushion valve control lines

1шт.
