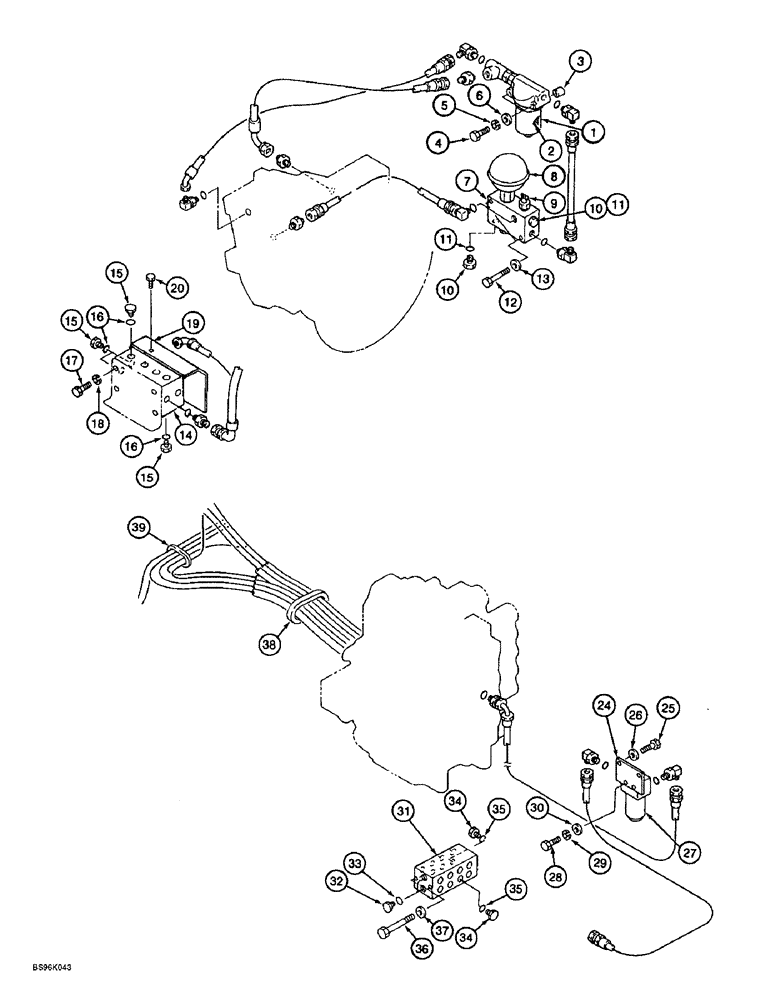

Запчасти Case 9060B (8-028) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, CONTINUED (08) - HYDRAULICS

1

159482A1

FILTER

- oil

1шт.

2

153233A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

3

150325A1

SPACER

- tube, 8 ID x 13.8 OD x 10.35 mm long

1шт.

4

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

- hex, 6 - 1.0 x 80 mm, class 10.9

2шт.

5

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

162568A1

VALVE

- check

1шт.

8

150894A1

ACCUMULATOR

- hydraulic

1шт.

9

162567A1

VALVE

- relief

1шт.

10

159002A1

PLUG

- port, includes: Ref. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

12

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

hex 8 - 1.25 x 80 mm, class 10.9

2шт.

13

153081A1

WASHER

- flat, special

2шт.

14

161310A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-200

1шт.

15

162557A1

PLUG

- special, includes: Ref. 16

2шт.

16

154475A1

O-RING

- plug

1шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

18

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

19

161551A1

COVER

- solenoid valve

1шт.

20

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

24

162537A1

LARGE PLATE

BRACKET - mounting

1шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

26

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

27

162538A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-204

1шт.

28

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

159015A1

MANIFOLD

- pressure and return

1шт.

32

159002A1

PLUG

- port, includes: Ref. 33

2шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

34

162557A1

PLUG

- special, includes: Ref. 35

2шт.

35

154475A1

O-RING

- plug

1шт.

36

159386A1

BOLT

BOLT - special

2шт.

37

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

38

163732A1

GROMMET

- rubber, P.I.N. EAC0601026

1шт.

38

171359A1

GROMMET

- rubber, Start Serial: EAC0601027

1шт.

39

159251A1

GROMMET

- rubber, P.I.N. EAC0601026

1шт.

39

171362A1

GROMMET

- rubber, Start Serial: EAC0601027

1шт.
