Запчасти Case 9060B (8-022) - BYPASS OIL FILTER AND LINES (08) - HYDRAULICS

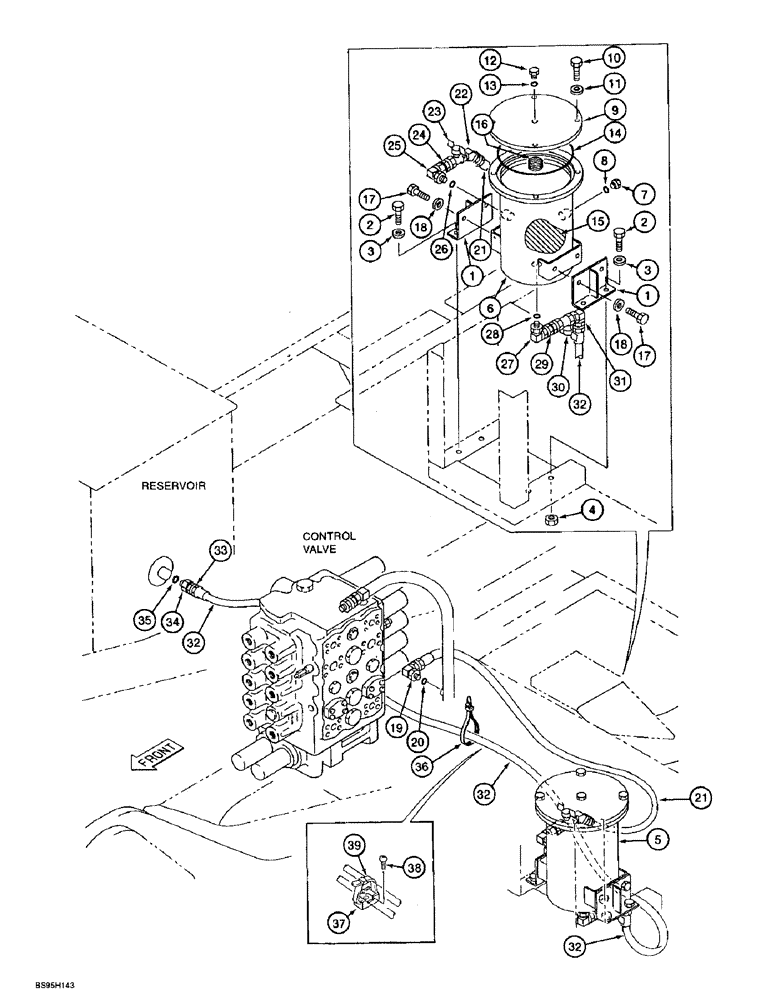

Схема запчастей Case 9060B - (8-022) - BYPASS OIL FILTER AND LINES (08) - HYDRAULICS
10
18
3
39
1
12
38
33
13
32
24
32
32
26
23
16
36
21
6
29
15
21
22
18
2
34
37
35
20
8
4
17
3
19
14
5
30
1
25
11
28
32
9
31
2
17
27
7

Артикул

Название

Примечание

Количество

1

159286A1

BRACKET

- mounting

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

5

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - bypass oil, includes: Refs. 6 - 16

1шт.

6

159281A1

BODY

HOUSING - bypass filter

1шт.

7

159002A1

PLUG

- port, includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

9

159283A1

COVER

- bypass filter

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

11

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

12

159285A1

PLUG

- port, includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

14

154859A1

O-RING

- bypass filter

1шт.

15

159282A1

HYDRAULIC OIL FILTER

ELEMENT - filter, bypass

1шт.

16

159837A1

SPRING

- compression

1шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

18

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

19

150933A1

ELBOW

- 45 degree, includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

152281A1

HOSE,63.00 mm ID x 800.00 mm

63.00 mm ID x 800 mm - Filter inlet line

1шт.

22

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

23

158923A1

DRAIN VALVE

VALVE - line shut-off

1шт.

24

153601A1

ADAPTER

- straight

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

27

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

29

153601A1

ADAPTER

- straight

1шт.

30

158923A1

DRAIN VALVE

VALVE - line shut-off

1шт.

31

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

32

152704A1

HOSE

- 1800 mm (71 inch) long, Filter discharge line

1шт.

33

153599A1

ADAPTER

ELBOW - 45 degree, not as shown

1шт.

34

160356A1

SOCKET

BUSHING - threaded, includes: Ref. 35

1шт.

35

154487A1

O-RING

- bushing

1шт.

36

150498A1

MOUNTING CLIP

STRAP - tie

1шт.

37

150860A1

COLLAR

BRACKET - support

1шт.

38

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

39

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

Выбрано товаров: 39
