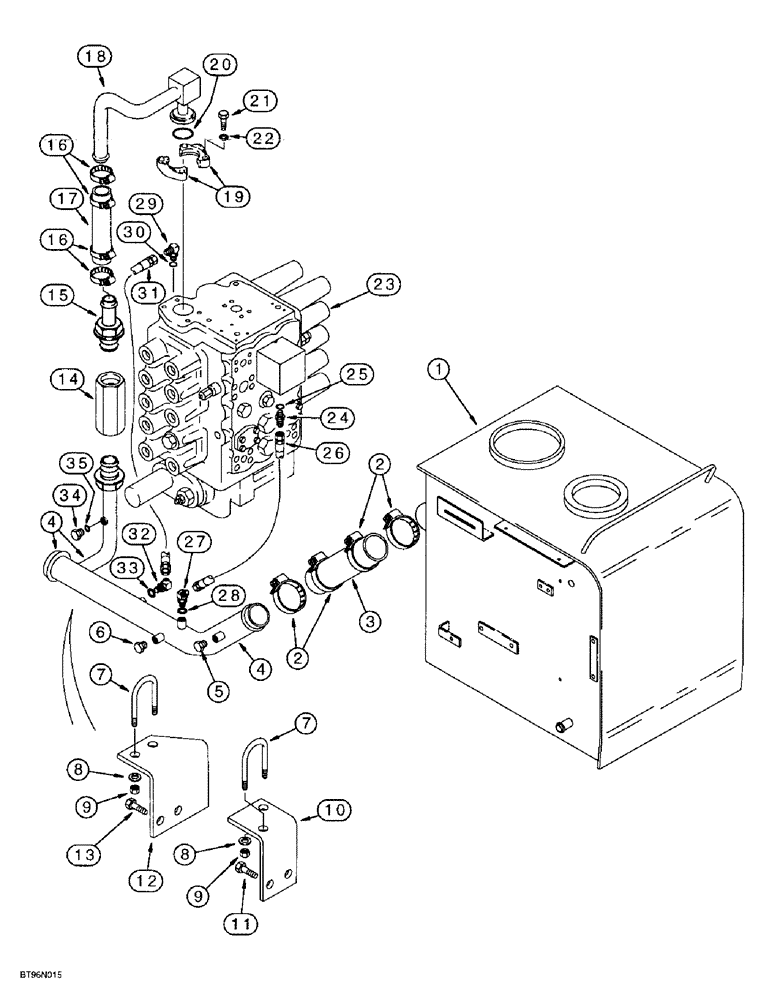

Запчасти Case 9060B (8-018) - OIL COOLER HYDRAULICS, RESERVOIR TO CONTROL VALVE (08) - HYDRAULICS

1

170132A1

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, see Figure 8-2 for mounting and related parts

1шт.

2

170285A1

CLAMP

- hose

4шт.

3

170964A1

HOSE,63.5 mm ID x 330.00 mm

At Reservoir 63.5 mm ID x 330.00 mm

1шт.

4

170953A1

TUBE

- suction, tank to control valve, at tank

1шт.

5

170980A1

PLUG

- port

1шт.

6

152924A1

PLUG

- port, includes: Ref. 6A

1шт.

6a

154503A1

O-RING

- plug, not shown

1шт.

7

152070A1

U-BOLT,M10 x 74mm W x 86mm L

- was 159032A1

2шт.

8

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

10

170248A1

BRACKET

- mounting

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

12

170963A1

BRACKET

- tube support

1шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, bracket mounting

2шт.

14

153460A1

VALVE

- check

1шт.

15

170952A1

TUBE,38.1 mm OD

- check valve to control valve

1шт.

16

170968A1

CLAMP

- hose

4шт.

17

170962A1

HOSE,38.1 mm ID x 205.00 mm

Check Valve to Control Valve 38.1 mm ID x 205.00 mm

1шт.

18

170965A1

TUBE

- check valve to control valve

1шт.

19

L14386

CLAMP

- split flange

2шт.

20

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

21

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 14 - 2.0 x 40 mm, class 10.9

4шт.

22

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

23

171225A1

VALVE

ASSEMBLY - control, parts list Figures 8-176 - 8-198

1шт.

24

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, includes: Ref. 25

1шт.

25

154487A1

O-RING

- adapter

1шт.

26

170249A1

HYDRAULIC HOSE,12.70 mm ID x 450.00 mm

12.70 mm ID x 450.00 mm

1шт.

27

157585A1

ELBOW

- special, includes: Ref. 28

1шт.

28

154487A1

O-RING

- elbow

1шт.

29

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, includes: Ref. 30

1шт.

30

154487A1

O-RING

- elbow

1шт.

31

170966A1

HOSE ASSY.

HOSE - 550 mm (21-5/8 inch) long

1шт.

32

157585A1

ELBOW

- special, includes: Ref. 33

1шт.

33

154487A1

O-RING

- elbow

1шт.

34

159002A1

PLUG

- port, includes: Ref. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
