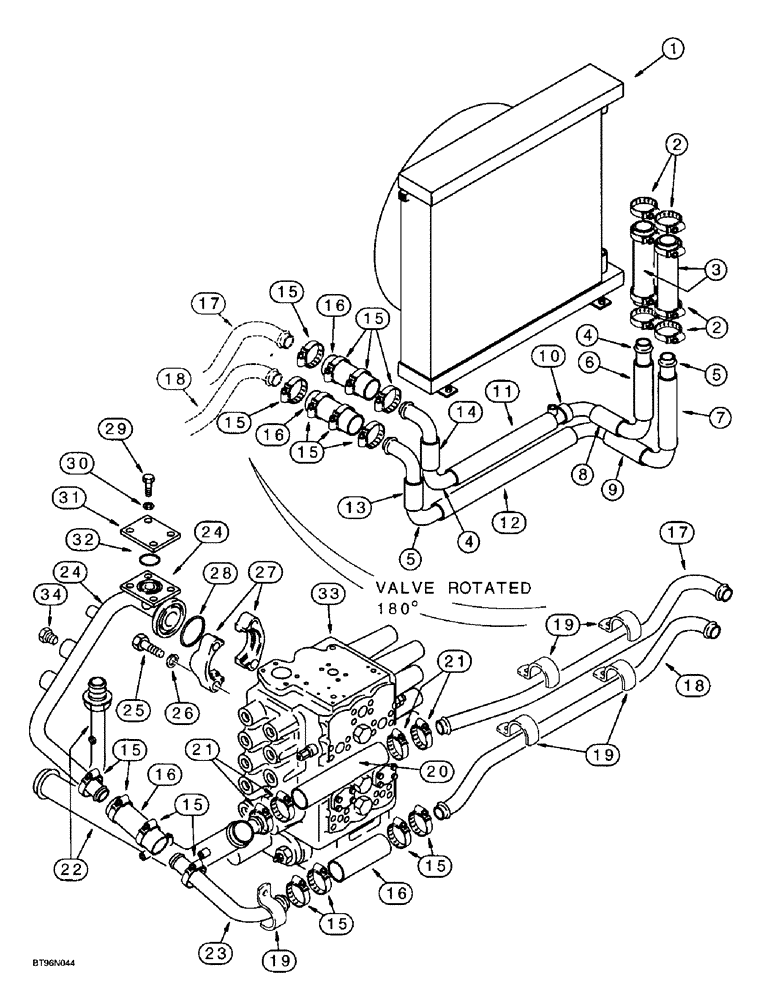

Запчасти Case 9060B (8-016) - OIL COOLER HYDRAULICS, VALVE TO COOLER AND COOLER RETURN (08) - HYDRAULICS

1

170972A1

COOLER, OIL

COOLER - oil, see Figure 8-14 for mounting and related parts

1шт.

2

170318A1

CLAMP

- hose

8шт.

3

170957A1

HOSE,50.80 mm ID x 350.00 mm

At Oil Cooler 50.80 mm ID x 350.00 mm

2шт.

4

170956A1

TUBE

- return to tank, at oil cooler

1шт.

5

170955A1

TUBE

- control valve to cooler, at cooler

1шт.

6

170986A1

HOSE,50.8 mm ID x 260.00 mm

- Tube Guard 50.8 mm ID x 260.00 mm

1шт.

7

170982A1

HOSE,50.8 mm ID x 325.00 mm

- Tube Guard 50.8 mm ID x 325.00 mm

1шт.

8

170981A1

HOSE,50.80 mm ID x 223.00 mm

Tube Guard 50.80 mm ID x 223.00 mm

1шт.

9

170985A1

HOSE,50.8 mm ID x 134.00 mm

- Tube Guard 50.8 mm ID x 134.00 mm

1шт.

10

170987A1

HOSE,50.8 mm ID x 50.80 mm

- Tube Guard 50.8 mm ID x 50.80 mm

1шт.

11

170988A1

HOSE,50.8 mm ID x 470.00 mm

- Tube Guard 50.8 mm ID x 470.00 mm

1шт.

12

170983A1

HOSE,50.8 mm ID x 121.00 mm

- Tube Guard 50.8 mm ID x 121.00 mm

1шт.

13

170984A1

HOSE,50.8 mm ID x 121.00 mm

- Tube Guard 50.8 mm ID x 121.00 mm

1шт.

14

170989A1

HOSE,50.8 mm ID x 100.00 mm

- Tube Guard 50.8 mm ID x 100.00 mm

1шт.

15

170318A1

CLAMP

- hose

16шт.

16

170954A1

HOSE,50.80 mm ID x 205.00 mm

Oil Cooler Hydraulics 50.80 mm ID x 205.00 mm

4шт.

17

170959A1

TUBE,50.8 mm OD

- cooler return to tank

1шт.

18

170958A1

TUBE

- control, Serial Range: valve-cooler

1шт.

19

170960A1

CLAMP

- tube

5шт.

20

170961A1

HOSE,50.8 mm ID x 450.00 mm

Oil Cooler Hydraulics 50.8 mm ID x 450.00 mm

1шт.

21

170318A1

CLAMP

- hose

4шт.

22

170953A1

TUBE

- suction, tank to control valve, at tank, see Figure 8-18 for related parts

1шт.

23

170967A1

TUBE,50.8 mm OD

- control valve to cooler

1шт.

24

170951A1

TUBE,50.8 mm OD

- control valve to cooler, at control valve

1шт.

25

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 14 - 2.0 x 40 mm, class 10.9

4шт.

26

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

27

L14386

CLAMP

- split flange

2шт.

28

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

29

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex, 7/16 NC x 1-1/2 inch, grade 8

4шт.

30

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

4шт.

31

170948A1

FLANGE

COVER - flat, for flange base

1шт.

32

153626A1

O-RING

- cover

1шт.

33

171225A1

VALVE

ASSEMBLY - control, parts list Figures 8-176 - 8-198

1шт.

34

170980A1

PLUG

- port

2шт.
