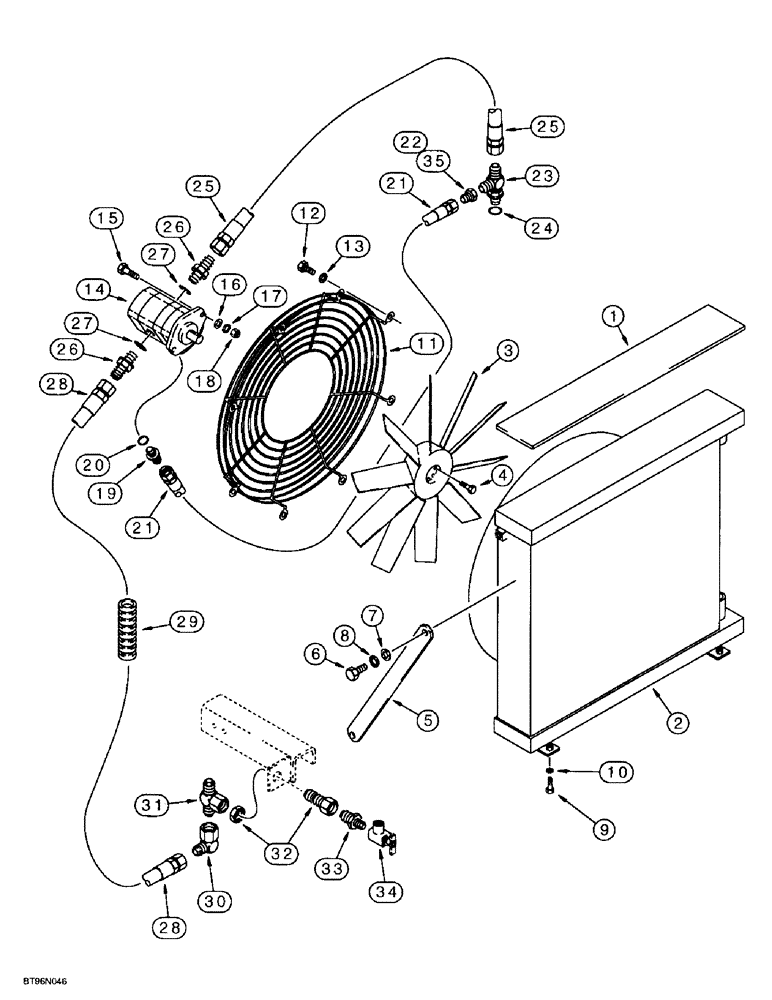

Запчасти Case 9060B (8-014) - OIL COOLER, FAN AND MOUNTING, WITH HYDRAULICS FROM COOLER TO SHUT-OFF VALVE (08) - HYDRAULICS

1

170975A1

GASKET

- cooler mounting

1шт.

2

170972A1

COOLER, OIL

COOLER - oil

1шт.

3

170971A1

FAN

- cooling, oil

1шт.

4

426-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 8

- hex, 5/16 NC x 1-1/8 inch, grade 8

3шт.

5

170974A1

SUPPORT

BRACE - support, oil cooler

2шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

4шт.

7

150811A1

WASHER

- flat, special, 12 mm

4шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

9

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

9a

170002A1

FRICTION WASHER

PLATE - shim, 0.8 mm (1/32 inch) thick, radiator mounting, not shown

1шт.

9b

170003A1

FRICTION WASHER

PLATE - shim, 2.0 mm (5/64 inch) thick, radiator mounting, not shown

1шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

11

170973A1

GUARD ASSY.

GUARD - cooling fan

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

- flat, 13/32 x 133/16 x 1/16 inch, hardened

8шт.

14

170970A1

MOTO-REDUCTION GEAR

MOTOR ASSEMBLY - hydraulic, parts list Figure 8-222

1шт.

17

892-11010

LOCK WASHER,M10

2шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

21

171024A1

HOSE ASSY.

HOSE - 330 mm (13 inch) long

1шт.

22

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

1шт.

23

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Tee

1шт.

25

171023A1

HOSE ASSY.

HOSE - 495 mm (19-1/2 inch) long

1шт.

26

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 27 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Connector

1шт.

28

171018A1

HOSE ASSY.

HOSE - 2794 mm (110 inch) long

1шт.

29

171007A1

TUBE

GUARD - hose, 25.4 (1) ID x 1524 mm (60 inch) long

1шт.

30

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

31

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel branch x flare x flare

1шт.

32

171002A1

CONNECTOR, ELEC

CONNECTOR - bulkhead

1шт.

33

217-1083

HYD CONNECTOR,3/8" - 18 NPTF x 1/4" - 18 NPTF

REDUCER - hex, 3/8 PT x 1/4 inch PT

1шт.

34

171004A1

VALVE

- shutoff, see Figure 8-20 for additional related hydraulics

1шт.

35

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 1/2 inch NF

1шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
