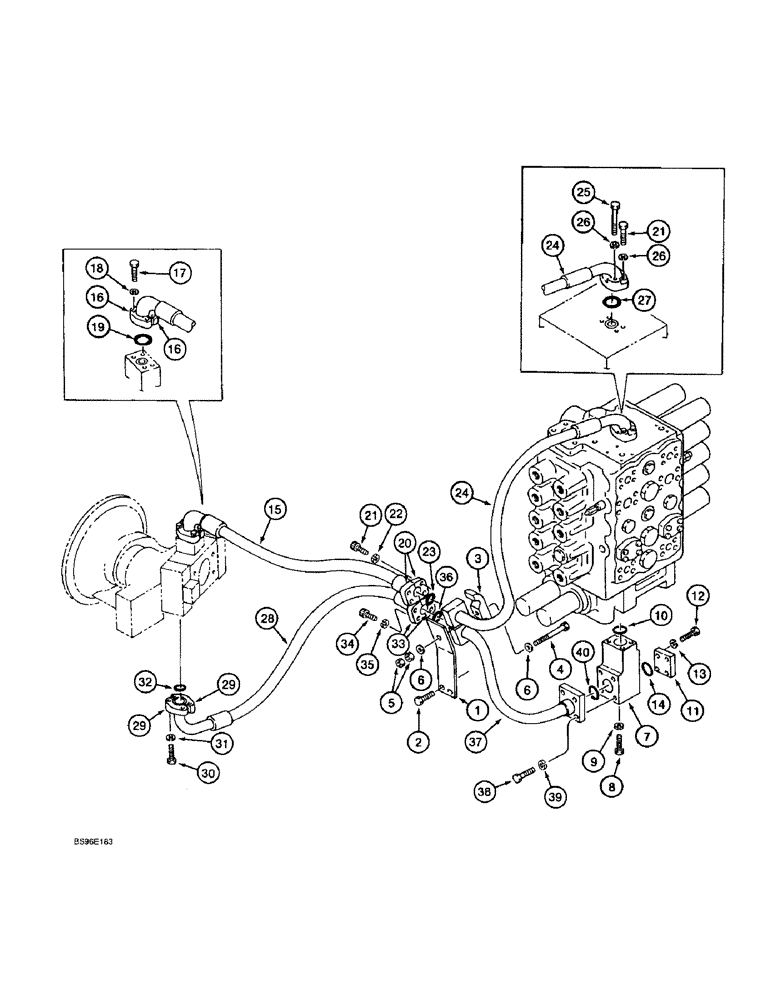

Запчасти Case 9060B (8-012) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

1

170147A1

BRACKET

- mounting, no longer available, order 171769A1 bracket and 171768A1 clamp, Ref 3 below, for service

1шт.

1

171769A1

BRACKET

- mounting

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

3

153188A1

COLLAR

CLAMP - pipe, used with 170147A1 bracket

1шт.

3

171768A1

CLAMP

- pipe, used with 171769A1 bracket

1шт.

4

814-14110

BOLT,Hex, M14 x 2 x 110mm, Cl 8.8

1шт.

5

829-1414

NUT,M14, Cl 10

- hex, 14 mm - 2.0, class 10

2шт.

6

163679A1

WASHER

- special

2шт.

7

163677A1

MANIFOLD

- control valve

1шт.

8

163678A1

BOLT

BOLT - special

4шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

10

153626A1

O-RING

- passage

1шт.

11

163676A1

FLANGE

PLATE - manifold sealing

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

162246A1

O-RING

- plate

1шт.

15

171494A1

HOSE ASSY.

HOSE - control valve supply (from pump to control valve supply tube) was 170635A1

1шт.

16

150124A1

FLANGE

- split

2шт.

17

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

4шт.

18

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

19

153626A1

O-RING

- hose

1шт.

20

150124A1

FLANGE

- split

2шт.

21

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

6шт.

22

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

23

153626A1

O-RING

- hose

1шт.

24

170145A1

TUBE

- control valve supply (from control valve supply hose to control valve)

1шт.

25

862-14080

HEX SOC SCREW,M14 x 80mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 80 mm, class 12.9

2шт.

26

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

27

153626A1

O-RING

- tube

1шт.

28

171495A1

HOSE ASSY.

HOSE - control valve supplyl (from pump to control valve supply tube) was 170635A1

1шт.

29

150124A1

FLANGE

- split

2шт.

30

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

4шт.

31

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

32

153626A1

O-RING

- hose

1шт.

33

150124A1

FLANGE

- split

2шт.

34

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

4шт.

35

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

36

153626A1

O-RING

- hose

1шт.

37

170146A1

TUBE

- control valve supply

1шт.

38

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

4шт.

39

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

40

153626A1

O-RING

- tube

1шт.
