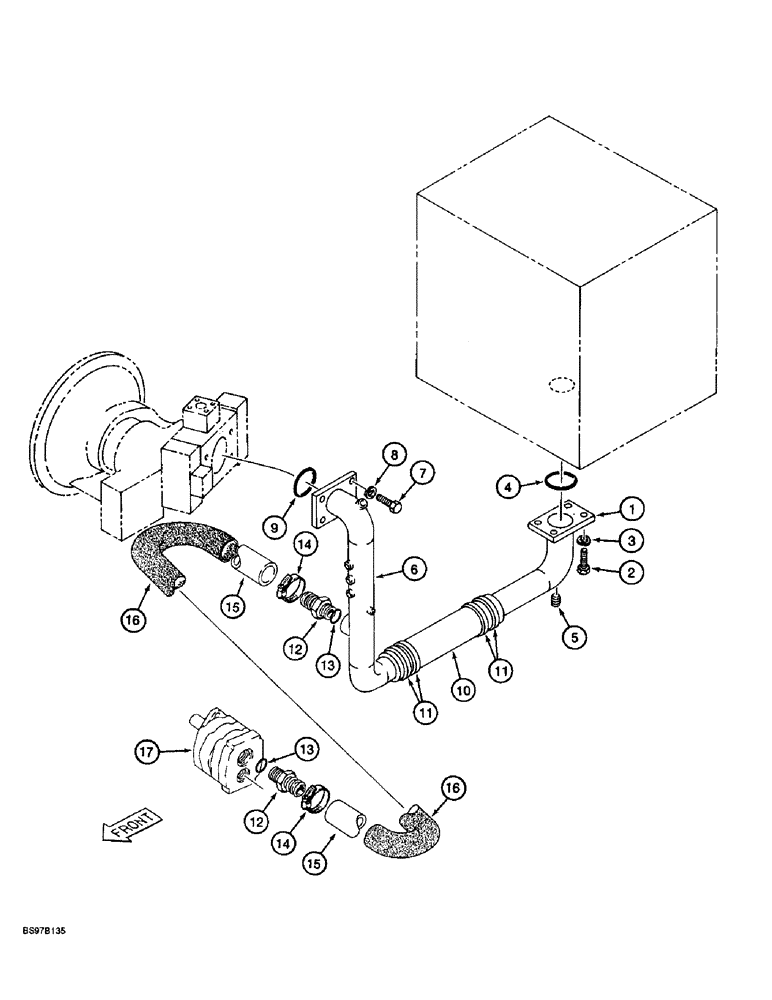

Запчасти Case 9060B (8-010) - RESERVOIR TO PUMP SUCTION LINE (08) - HYDRAULICS

1

170276A1

TUBE,88.9 mm OD

- reservoir end of suction line, was 170468A1

1шт.

2

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

3

150811A1

WASHER

- flat, special, 12 mm

4шт.

4

154719A1

O-RING

- tube

1шт.

5

152924A1

PLUG

- port, includes: Ref. 5A

1шт.

5a

154503A1

O-RING

- plug, not shown

1шт.

6

170647A1

TUBE,88.9 mm OD

- pump end of suction line

1шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

9

154787A1

O-RING

- tube

1шт.

10

171550A1

HOSE

- suction line, was 163728A1

1шт.

11

171516A1

CLAMP

- adjustable, was 171278A1

4шт.

12

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-1/4 stem end x 1-5/8-12 inch O-ring boss, Incl. Ref. 13

2шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

14

170097A1

CLAMP

- hose

2шт.

15

170978A1

HOSE,31.75 mm ID x 1625.00 mm

Hydraulic Oil Return, Oil Cooler Pump to Hydraulic Pump 31.75 mm ID x 1625.00 mm

1шт.

16

170979A1

PROTECTOR

GUARD - hose

1шт.

17

170755A1

PUMP

ASSEMBLY - parts list Figure 8-220, see Figure 8-220 for related hydraulics and mounting

1шт.
