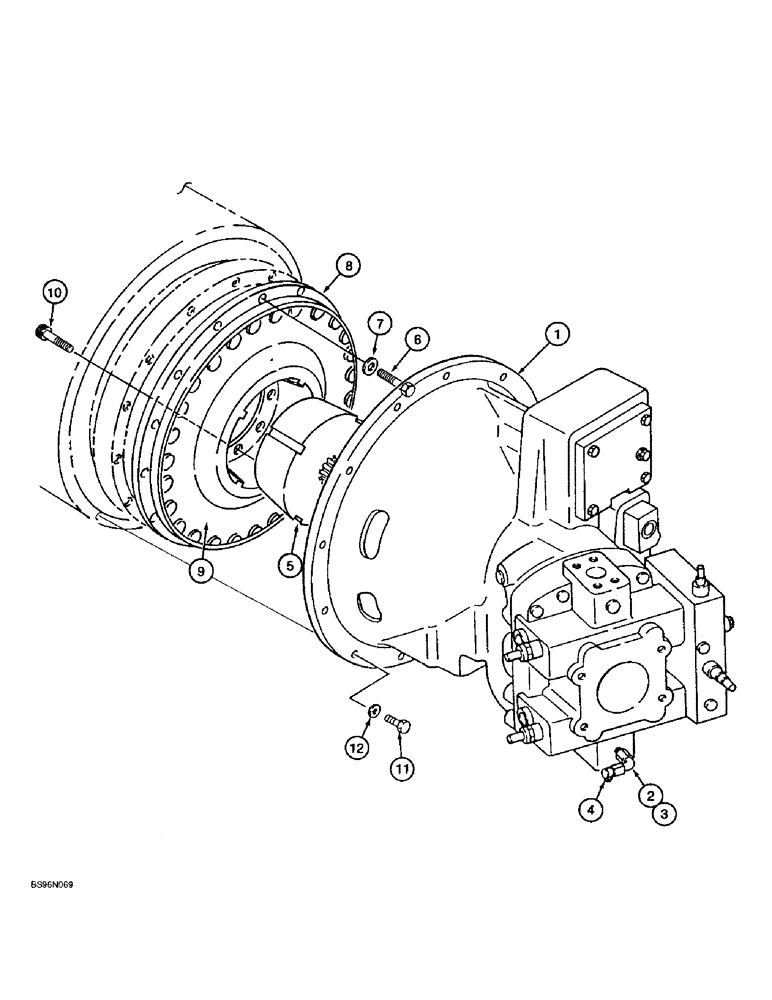

Запчасти Case 9060B (8-008) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

163568A1

PUMP

ASSEMBLY - hydraulic, parts list Figures 8-160 - 8-174

1шт.

2

158665A1

ELBOW

- 90 degree, includes: Ref. 3

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow (not shown)

1шт.

4

1541849C1

COUPLING

ASSEMBLY - diagnostic

2шт.

5

170941A1

COUPLING

HUB - coupling

1шт.

6

170944A1

BOLT

- special

8шт.

7

170910A1

WASHER

- special

8шт.

8

170942A1

RING

PLATE - outer, aluminum

1шт.

9

170940A1

DISC

- rubber

1шт.

10

170939A1

BOLT

- special

8шт.

11

170945A1

BOLT

- hex, special

12шт.

12

150811A1

WASHER

- flat, special, 12 mm

12шт.
