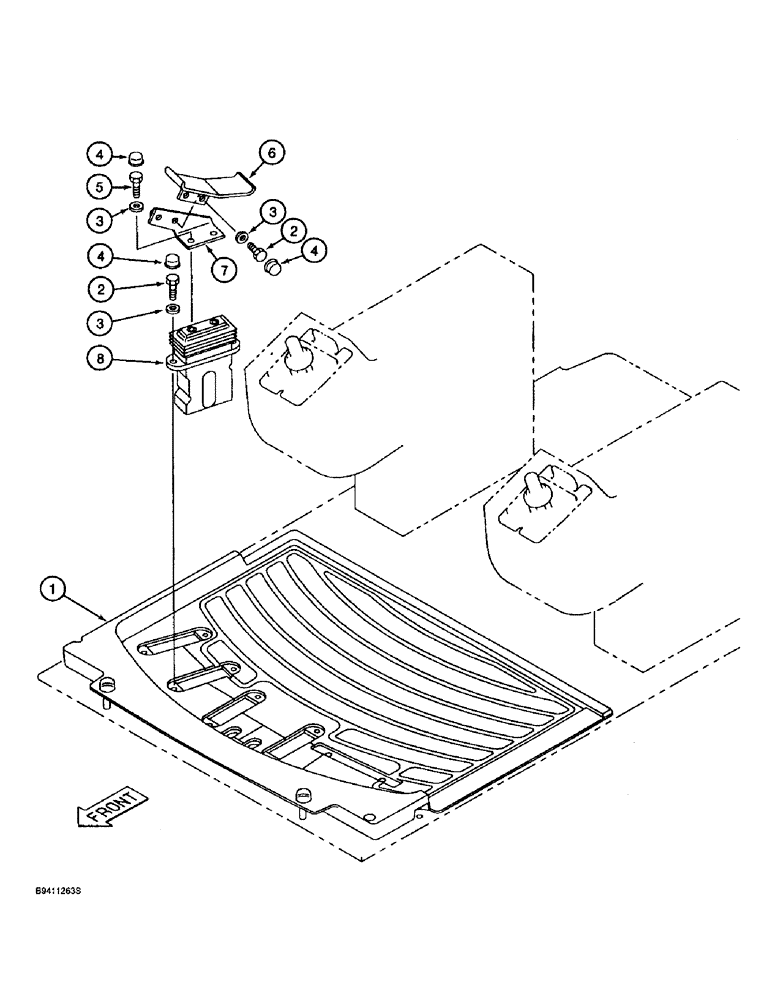

Запчасти Case 9060B (6-18) - AUXILIARY HYDRAULIC CONTROL, PEDAL AND FLOORMAT (06) - POWER TRAIN

1

165722A1

FLOOR MAT

MAT - floor, machines with auxiliary equipment control pedal

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9, Replaces 150552A1

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

4

159488A1

CAP

- special

6шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9, Replaces 150548A1

2шт.

6

162963A1

PEDAL

- auxiliary hydraulic control

1шт.

7

161843A1

BRACKET

- pedal mounting

1шт.

8

162079A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, auxiliary hydraulic equipment, parts list Figure 8-212

1шт.
